Simpson 2x4 Deck Post Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I092575
Mfr. #: DPT5Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.20
i h h

Description

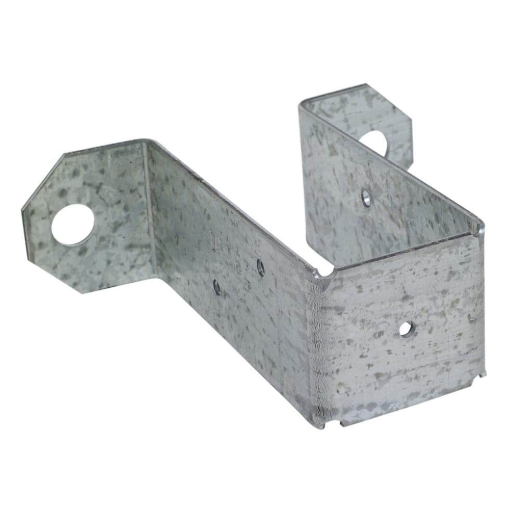

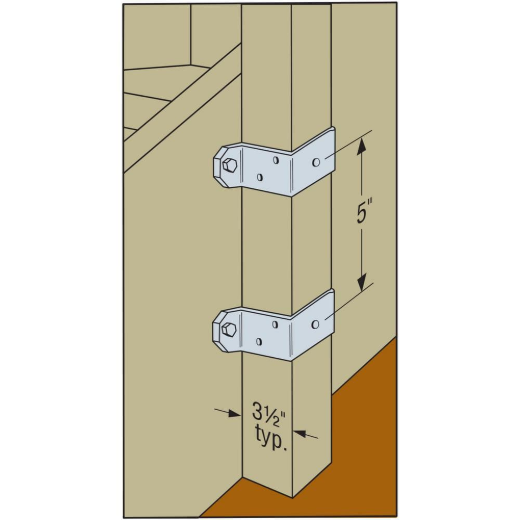

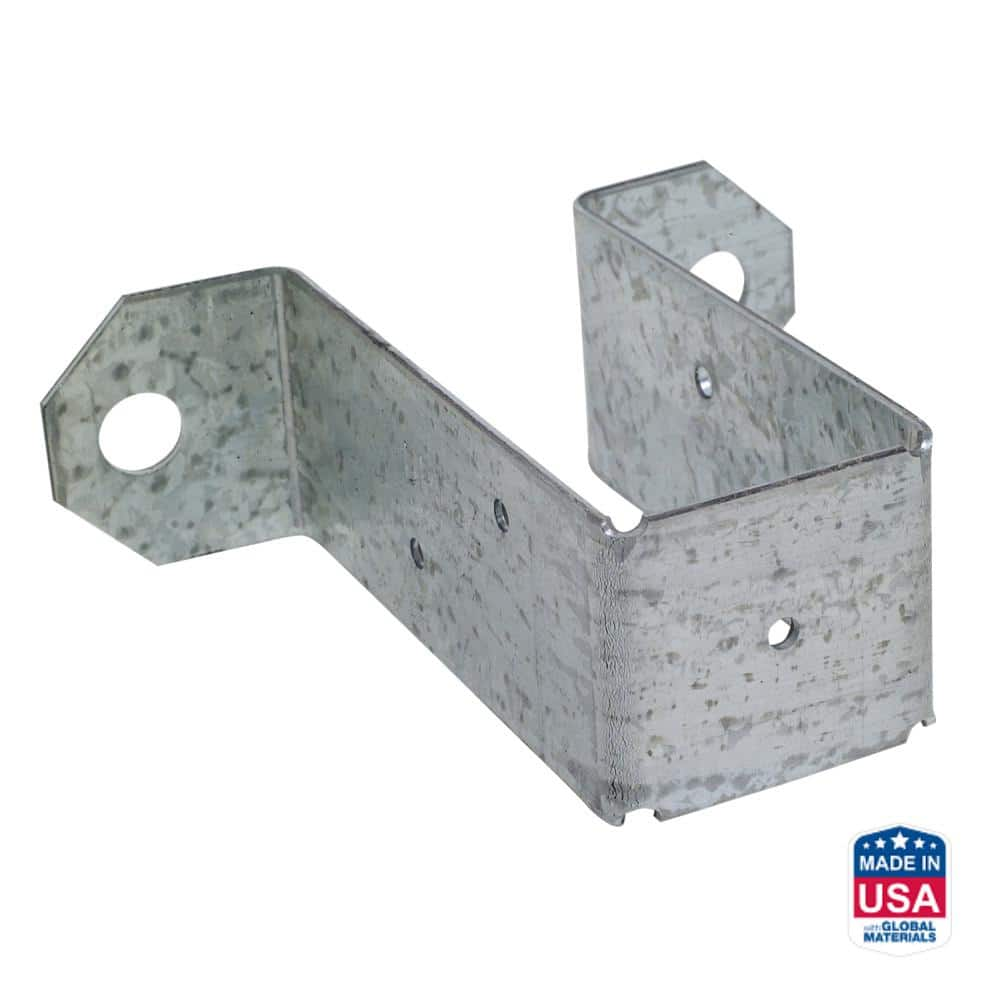

The Simpson Strong-Tie DPT5Z Deck Post Tie is engineered to securely connect 2x4 vertical posts to the side of deck stringers, rim joists, or other structural members. Designed for both new and retrofit construction, it offers a simpler alternative to traditional through-bolting. Its ZMAX galvanization provides superior corrosion resistance, making it ideal for exterior applications, especially when used with treated lumber. This tie is typically installed in pairs to ensure a strong and stable connection, enhancing the overall structural integrity of your deck or stair project.
  • Connects 2x4 posts to stringers and rim joists
  • ZMAX galvanization for corrosion resistance

Features

  • Ideal for decks and stairs in new or retrofit construction
  • Easier installation compared to through-bolting
  • Made from 14-gauge steel for durability
  • Suitable for use with pressure-treated lumber
  • Helps meet IRC deck lateral load connection requirements

Includes

  • This product does not typically include fasteners in the packaging.
Products specifications
product name DPT5Z
post size 2x4
material Steel
gauge 14
finish ZMAX

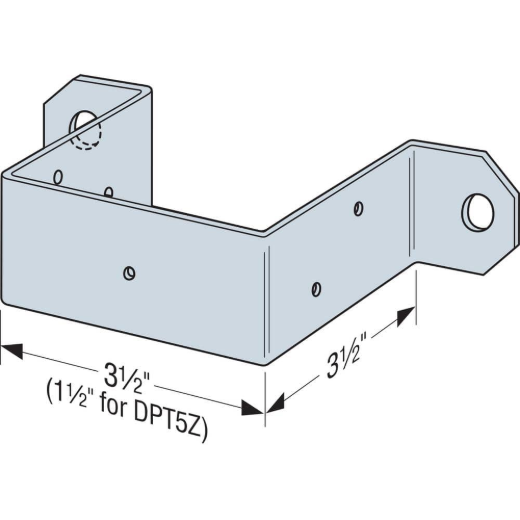

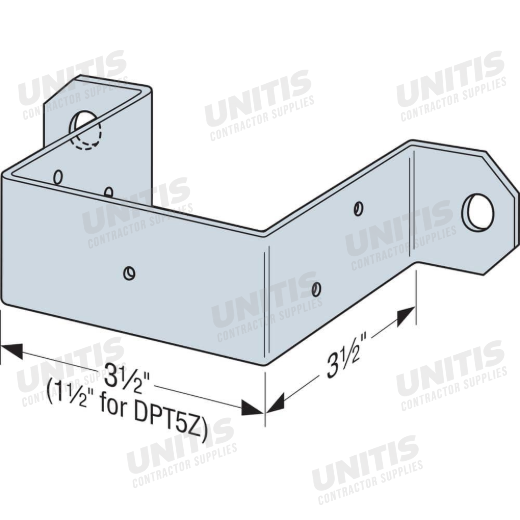

length 3-1/2 inch
fasteners required (side) 2 x 3/8 inch bolts
fasteners required (post) 5 x 0.148 inchx1-1/2 inch nails
*
*
*
