Simpson 2X6 Dbl Top Flange Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091716
Mfr. #: HUS26-2TF
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $36.57
i h h

Description

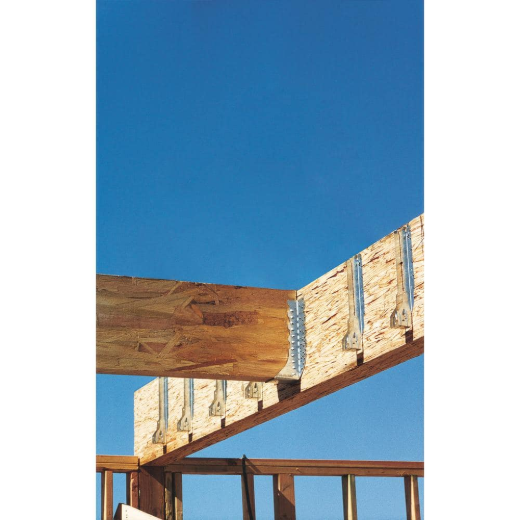

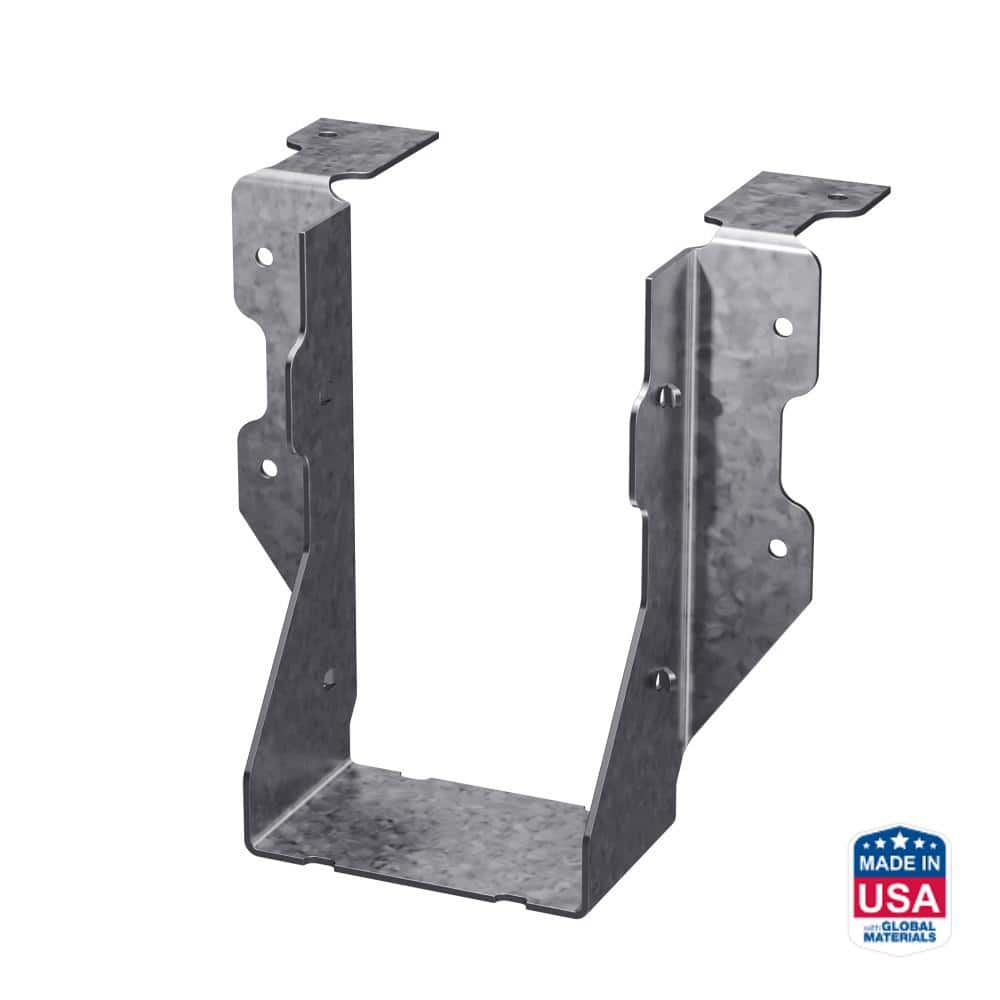

The Simpson HUS26-2TF is a heavy-duty top-flange joist hanger engineered to provide superior strength and stability for double 2x6 wood-to-wood connections. Its robust, U-shaped design fully encapsulates the beam to ensure optimal load distribution and a secure, load-rated fit. Ideal for demanding structural applications like floor framing and roof trusses, this hanger offers exceptional reliability in professional construction projects.
  • Heavy-Duty Construction for high-load conditions
  • G90 Galvanized coating for corrosion resistance

Features

  • Full U-shaped wrap ensures optimal load distribution and beam stability.
  • Features an embossed top flange that provides additional connection strength.
  • Designed with double-shear nailing combined with face-nailing for high loads.

Includes

  • (1) HUS26-2TF Joist Hanger
Products specifications
Material Carbon Steel
Finish G90 Galvanized
Thickness 14 Gauge
Joist Size Double 2 inch x 6 inch
Width 3-1/8 inch
Height 5-3/8 inch
Face Fasteners (6) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (4) 0.162 inch x 3-1/2 inch Nails
For Treated Lumber No
*
*
*
