Simpson 2X6 Heavy Truss Face Mount Hanger HTU26

Mfr.: Simpson Strong-Tie
Item #: I091435
Mfr. #: HTU26
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6.24
i h h

Description

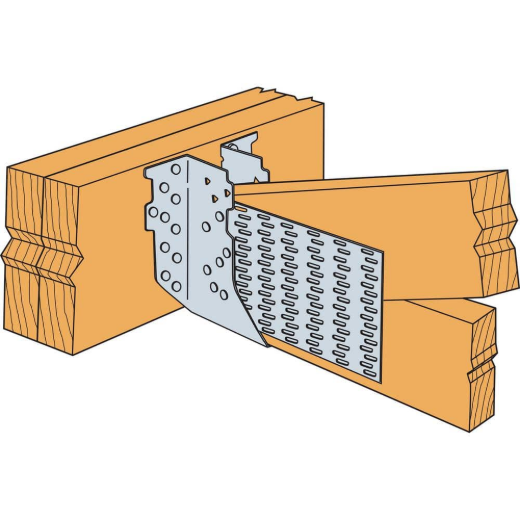

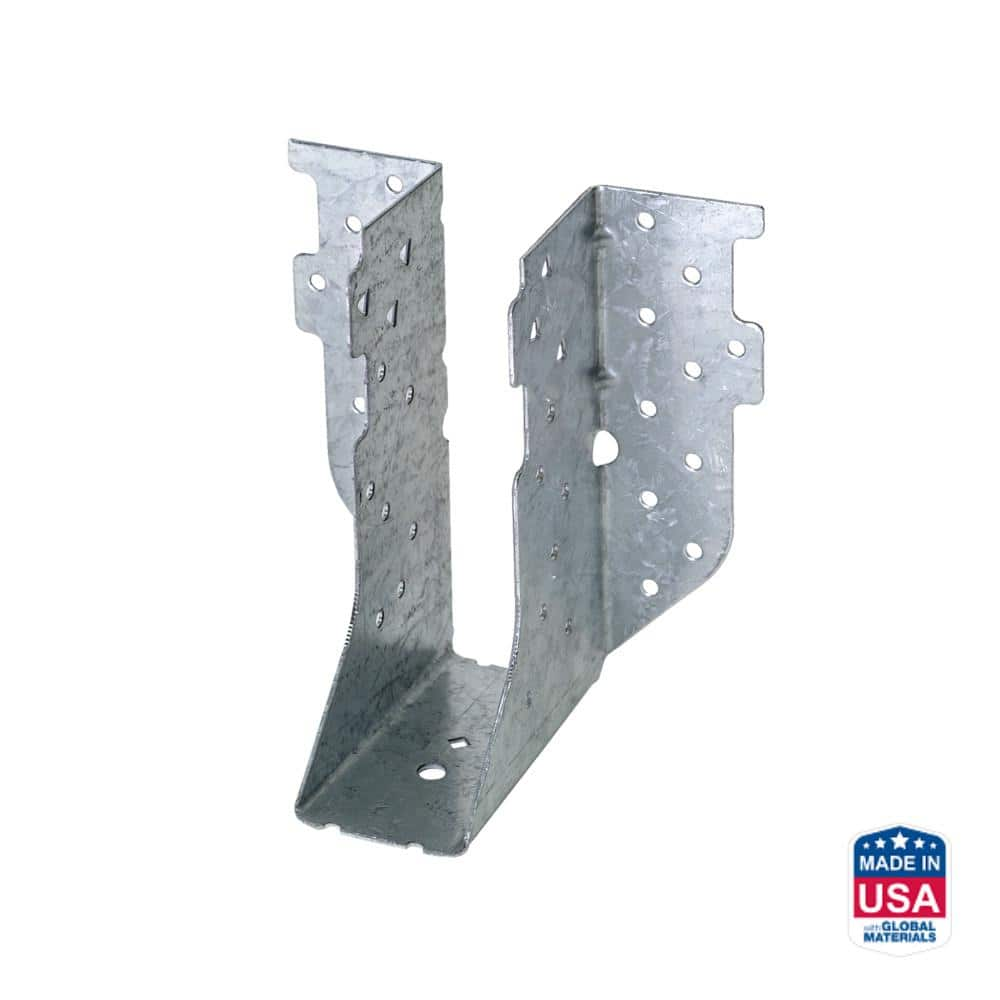

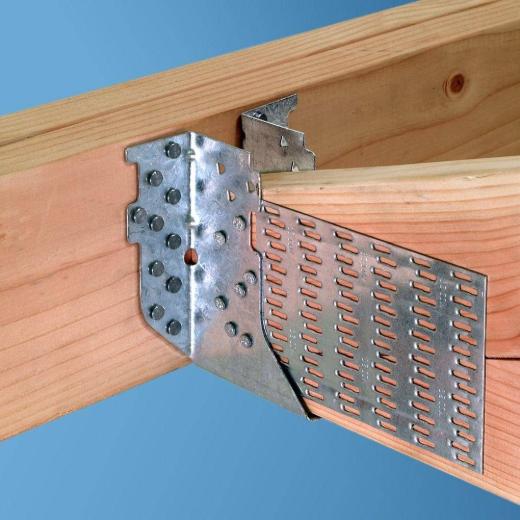

The Simpson Strong-Tie HTU26 is a heavy-duty face-mount truss hanger specifically designed for 2x6 lumber and shallow heel height applications. This high-performance connector features unique nail patterns that allow for full allowable loads on heel heights as low as 3-7/8 inches. Constructed from 16-gauge steel with a G90 galvanized finish, it provides exceptional durability and corrosion resistance for both residential and commercial projects. The hangers versatile design supports gaps up to 1/2 inch between the truss end and the carrying member, ensuring flexibility for various construction tolerances.
  • Designed for shallow heel heights
  • G90 galvanized finish
  • 16-gauge steel construction
  • Supports gaps up to 1/2 inch

Features

  • Unique nail patterns provide full allowable loads on low heel heights.

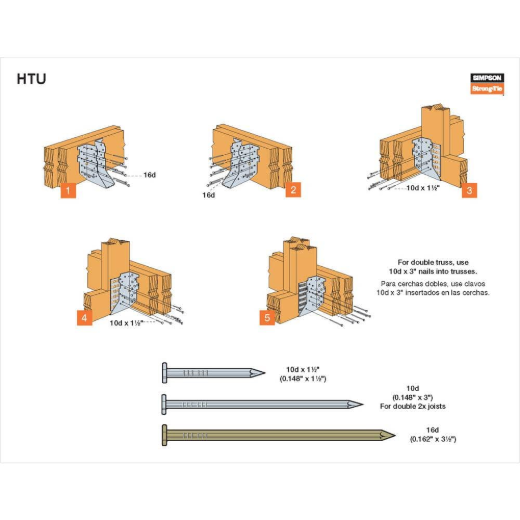

  • Versatile installation options using round or triangle holes for max values.
  • G90 zinc coating provides enhanced protection against corrosion.
  • Compatible with 16d or 10d common nails for flexible fastening.

Includes

  • (1) HTU26 Heavy Face Mount Truss Hanger
Products specifications
Model No. HTU26
Nominal Joist Size 2x6
Material 16-Gauge Steel
Finish G90 Galvanized

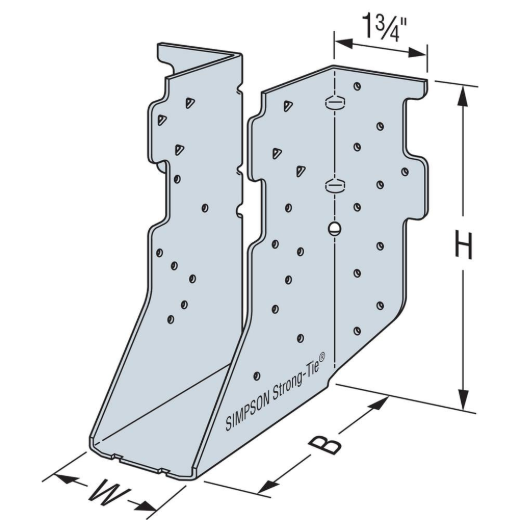

Height 5-7/16 inch
Width 1-5/8 inch
Base 3-1/2 inch
Min. Heel Height 3-7/8 inch
Fastener Type 10d or 16d Common Nails
Max. Construction Gap 1/2 inch
*
*
*
