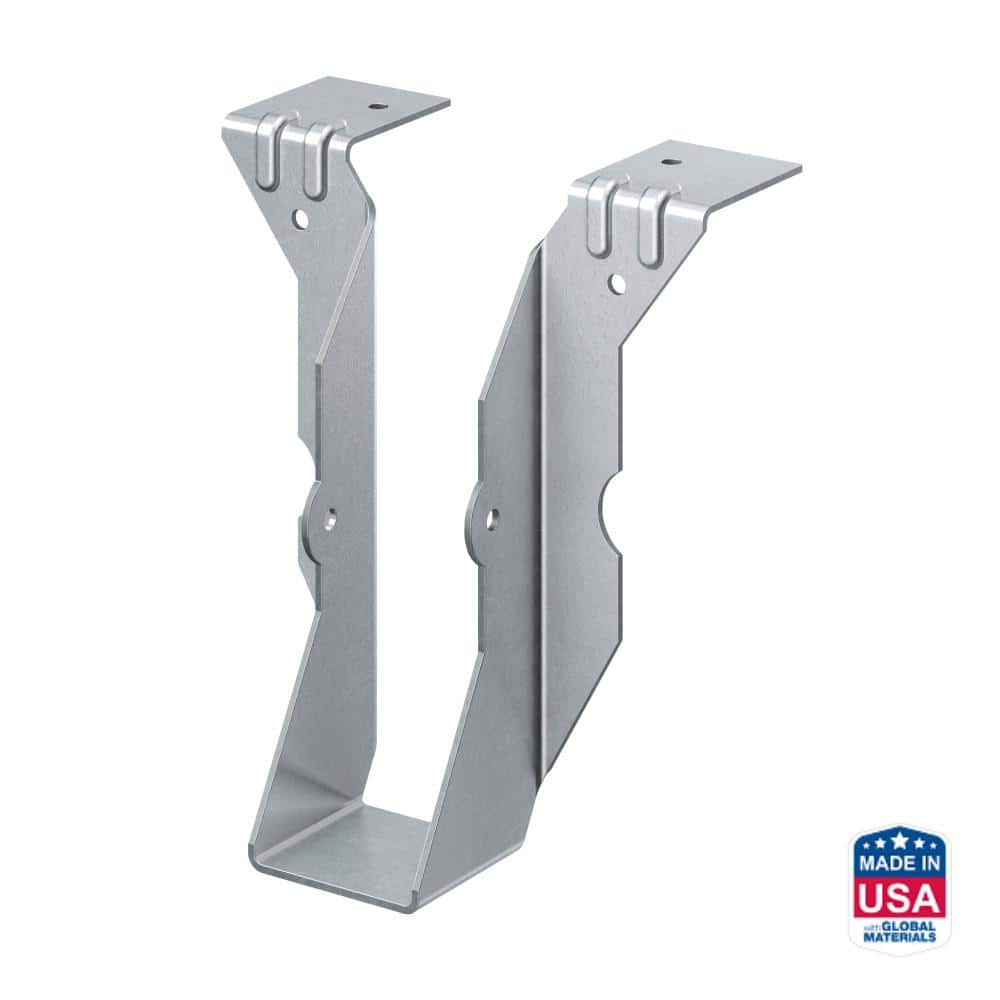

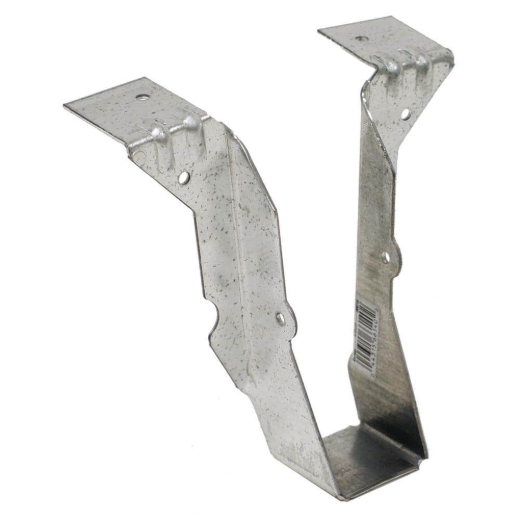

Simpson LB - 2" x 6" Top Flange Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091780
Mfr. #: LB26
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $8.31
i h h

Description

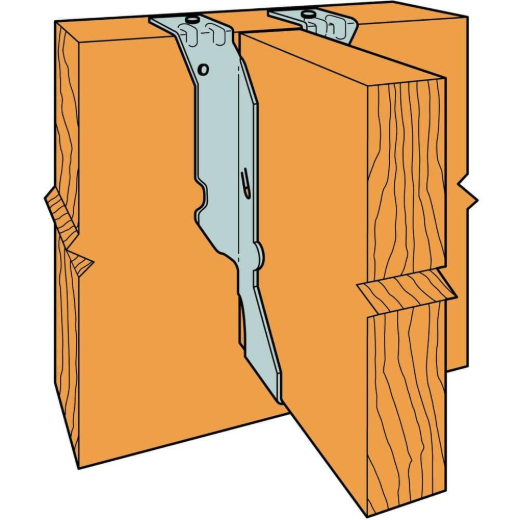

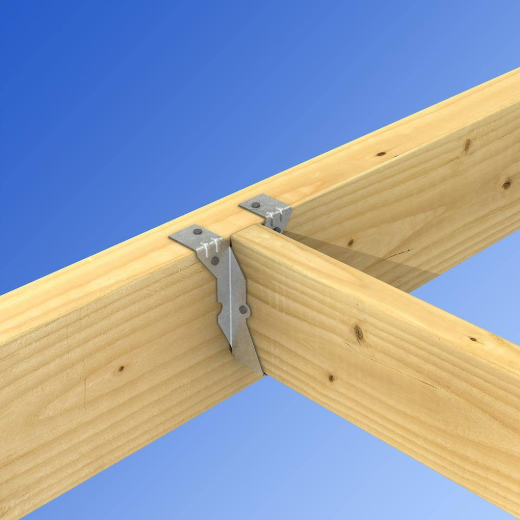

The Simpson Strong-Tie LB26 is a top-flange hanger specifically designed for solid sawn lumber applications. This cost-effective solution provides reliable support for light-to-medium load joist-to-beam and rafter-to-wall connections. It features a robust 14-gauge construction and is engineered to provide increased uplift resistance, making it an excellent choice for various residential framing projects.
  • Bent top-flange design for flexible installation
  • 14-gauge G90 galvanized steel for corrosion resistance

Features

  • Unique two-level embossment on the top flange provides increased stiffness.
  • Engineered for increased uplift loads for earthquake or high-wind loading.
Products specifications
Connector Type Top-Flange Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating Galvanized (G90)
Joist / Lumber Size 2 in x 6 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Top-Flange
Series LB
Steel Gauge 16 ga
*
*
*
