Simpson 3 in Reinforcing Angle

Mfr.: Simpson Strong-Tie
Item #: I093197
Mfr. #: L30
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.01
i h h

Description

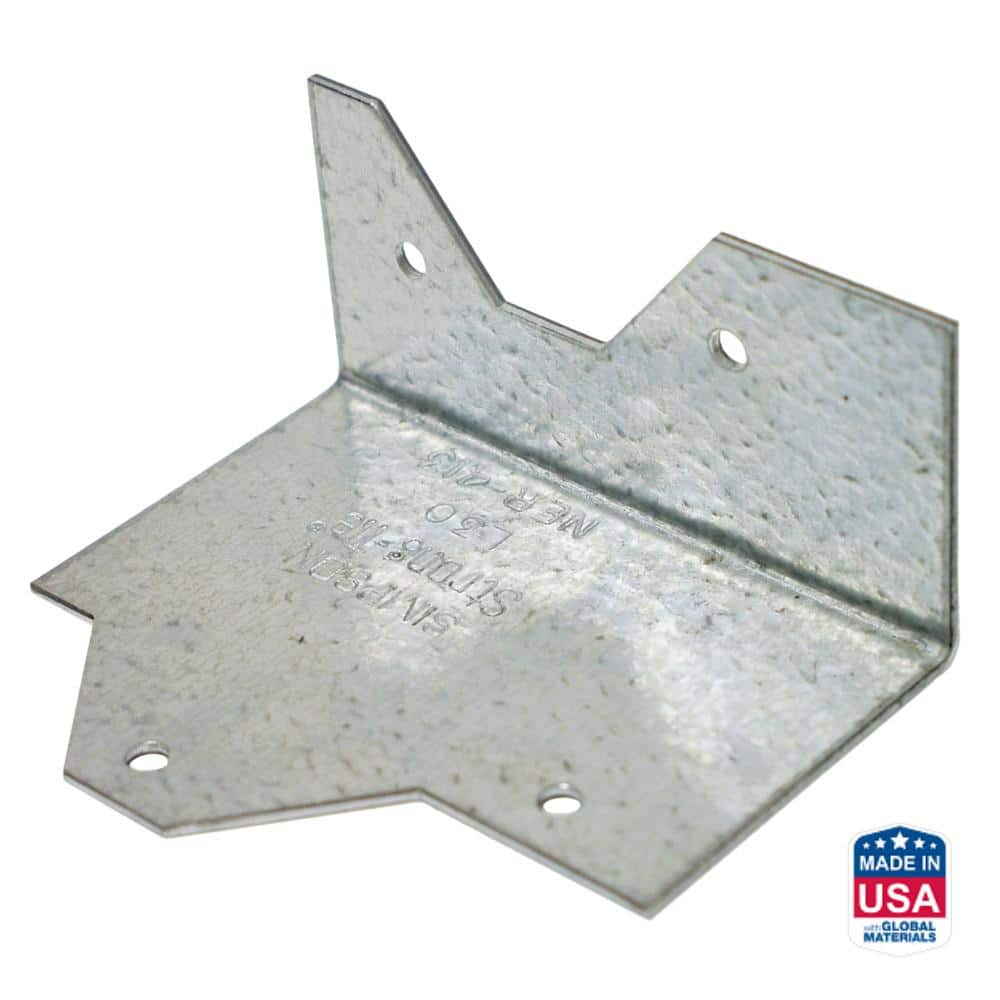

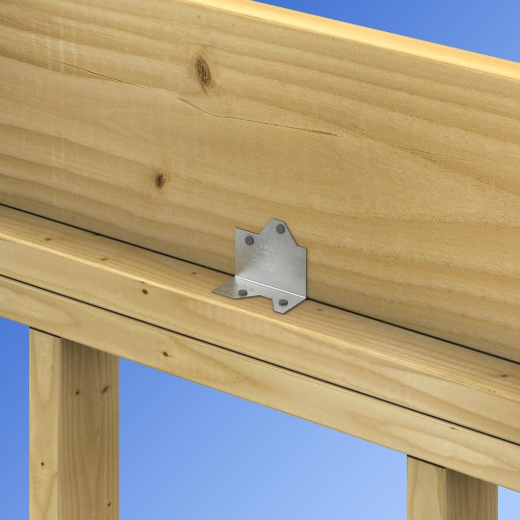

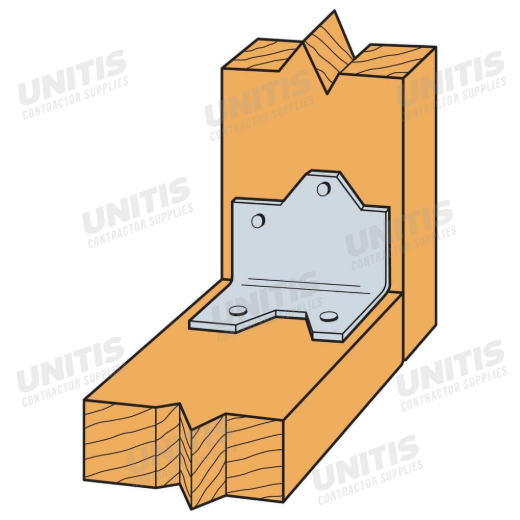

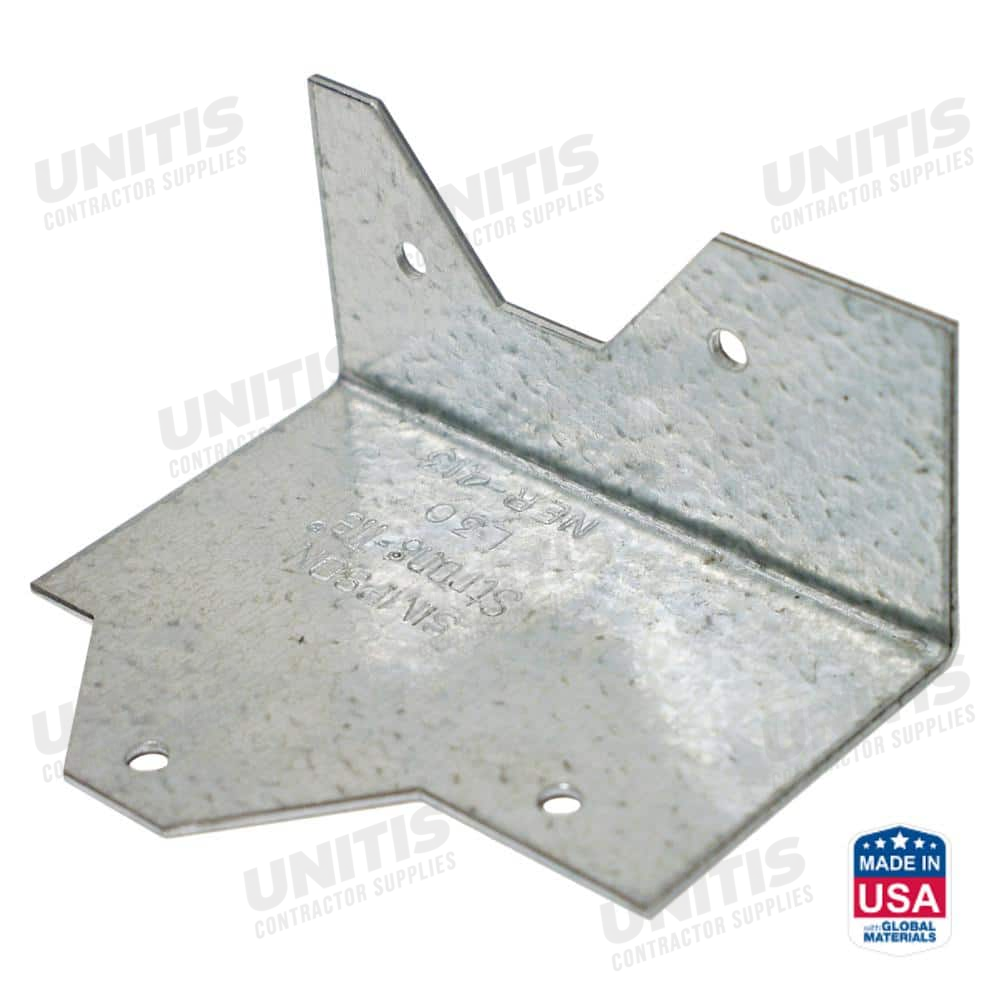

The Simpson Strong-Tie L30 Reinforcing Angle is a versatile, load-rated metal connector engineered to strengthen and stabilize 90 corner and joint connections in wood and cold-formed steel framing. Built from durable 16-gauge steel with well-defined fastener locations, this angle provides a reliable and engineered alternative to field-fabricated clip angles, ensuring consistent performance. It is designed for ease of installation and offers enhanced structural integrity for various construction projects, including decks, sheds, and general framing.
  • Load-rated for consistent performance
  • Durable 16-gauge steel construction

Features

  • Staggered fastener pattern reduces the risk of wood splitting during installation.
  • Available in multiple sizes and finishes (e.g., G90 galvanized, ZMAX) to suit job requirements and provide corrosion resistance.
  • Compatible with standard fasteners like 10d common nails or Strong-Drive SD connector screws.

Includes

  • (1) Reinforcing L Angle
Products specifications
Material 16-Gauge steel
Finish G90 Galvanized
Length 3 inch
Fastener Type 10d nails or SD screws
*
*
*
