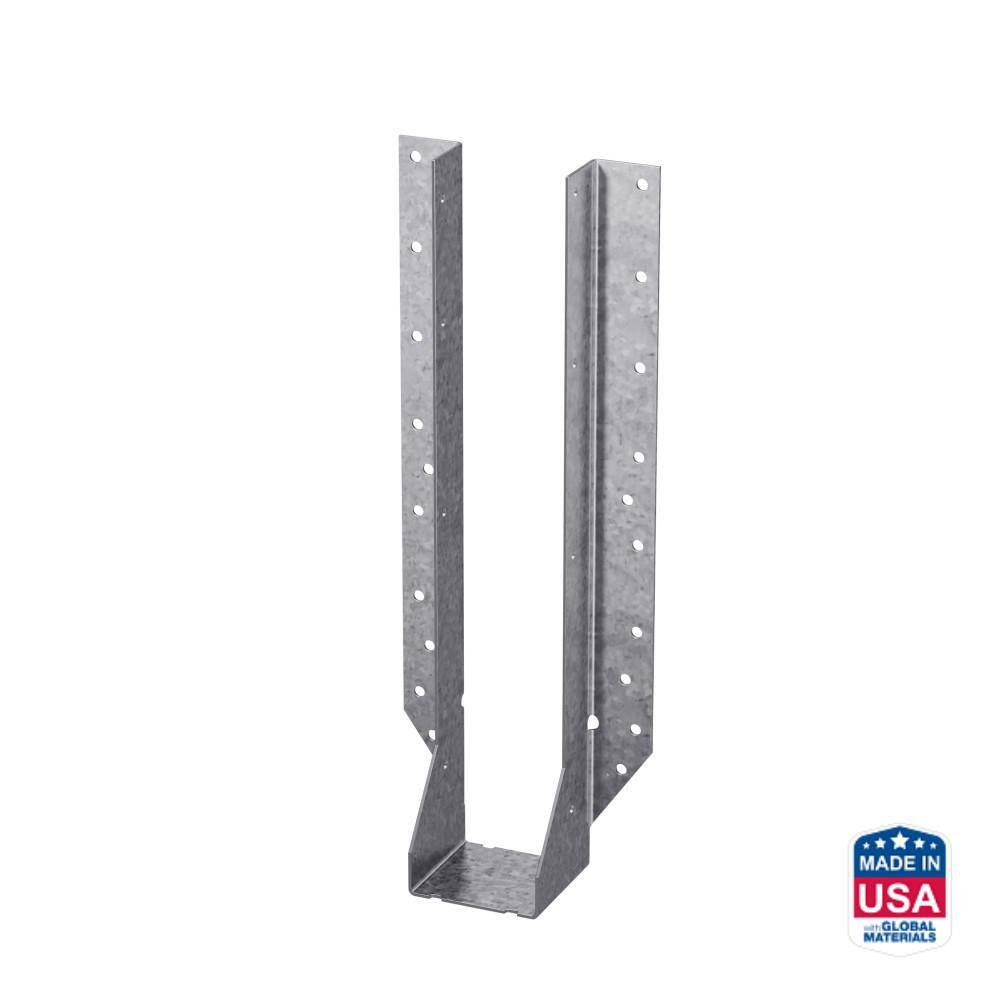

Simpson 3 X 16 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091500
Mfr. #: HU316
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $35.82
i h h

Description

The Simpson Strong-Tie HU316 is a heavy-duty face-mount joist hanger specifically engineered to provide superior strength and safety for 3x16 lumber connections. Part of the robust HU series, these hangers are designed for projects requiring enhanced structural support, making them a preferred choice for contractors and engineers. Their durable 14-gauge steel construction ensures reliability in diverse applications, including deck framing, floor systems, and roof truss connections.
  • G90 Galvanized Finish for corrosion resistance
  • Heavy-duty 14-gauge steel construction

Features

  • Tested, load-rated, and code-compliant design
  • Versatile for wood-to-wood and wood-to-masonry applications
  • Features added triangular holes on most models for increased load capacity

Includes

  • 1 Heavy-Duty Face-Mount Joist Hanger
Products specifications
Material Carbon Steel
Finish G90 Galvanized
Thickness 14 Gauge
Joist Size 3 in x 16 in
Width 2-9/16 in
Height 14-1/8 in
*
*
*
