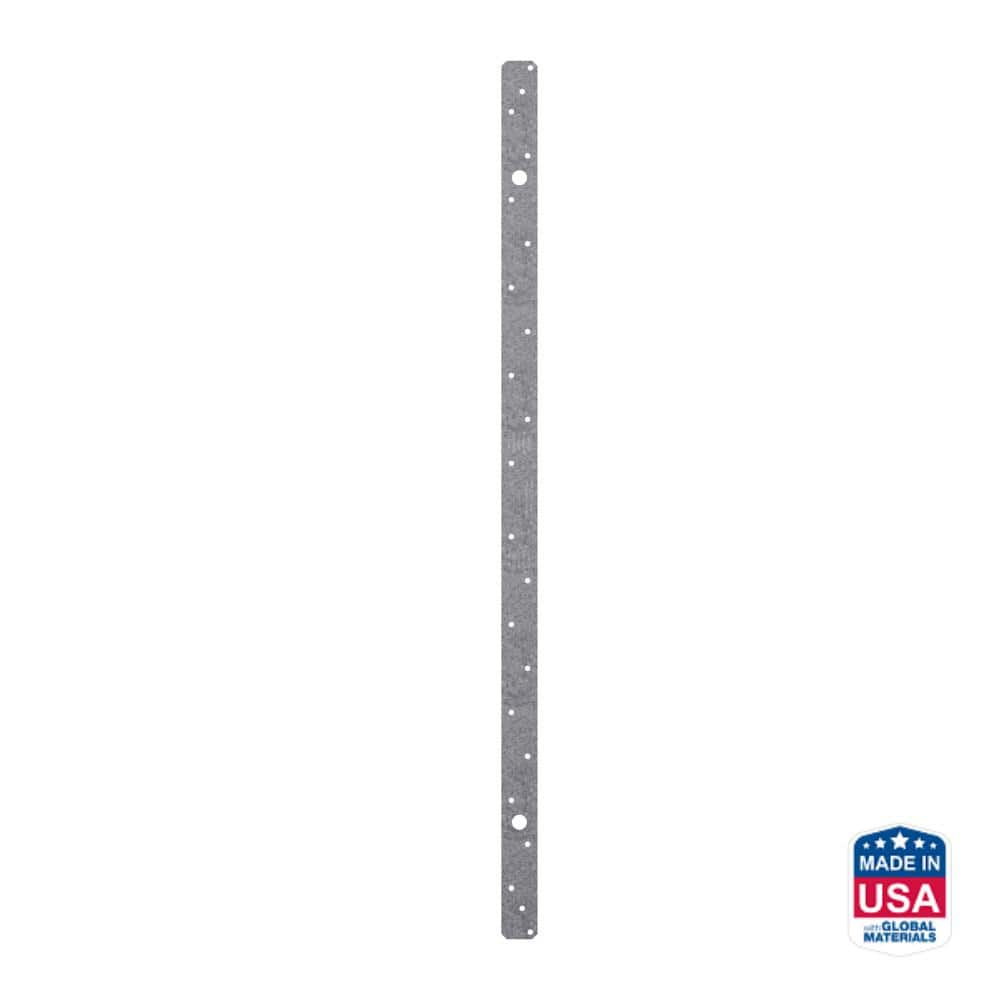

Simpson 30-Inch 18-Gauge Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090773
Mfr. #: LSTA30
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.87
i h h

Description

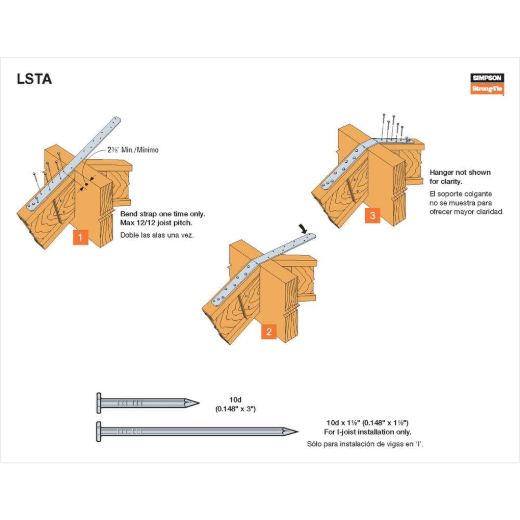

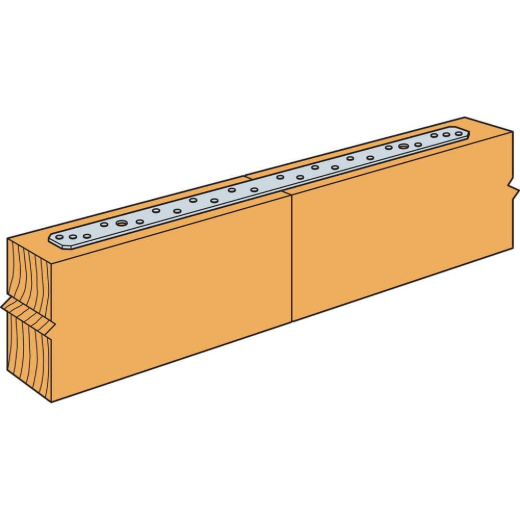

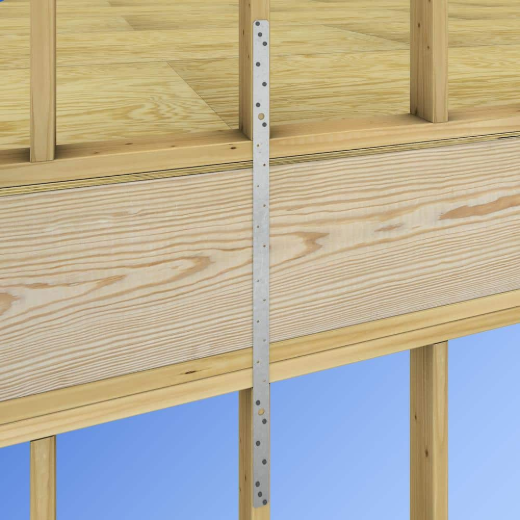

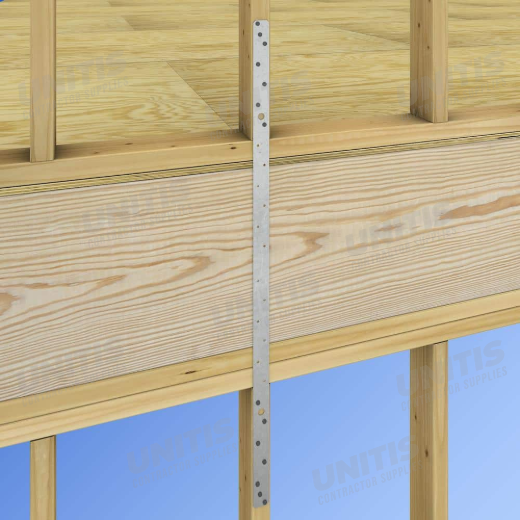

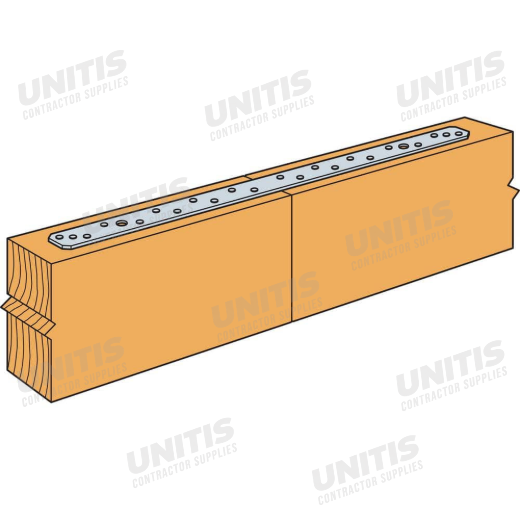

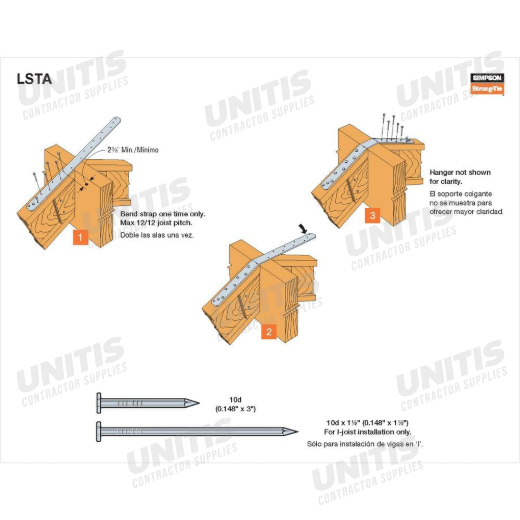

The Simpson Strong-Tie LSTA30 is a versatile, light-duty strap tie designed to resist tension loads in wood-to-wood applications. This 30-inch strap is specifically engineered for installation on the edge of nominal 2x lumber, providing a secure connection for a wide variety of construction and repair projects. Its staggered nailing pattern effectively transfers loads while minimizing the risk of splitting the wood during installation.
  • G90 Galvanized Coating
  • Staggered Nailing Pattern

Features

  • Provides high-strength tension load resistance.
  • Fabricated from 18-gauge steel for durability.
  • Versatile design for various splices and ties.

Includes

  • 1 x LSTA30 Strap Tie
Products specifications
Model LSTA30
Material 18-Gauge Steel
Finish G90 Galvanized
Length 30 inch
Width 1-1/4 inch
Fasteners Required 10d common or #9 x 1-1/2 inch SD screws
Fastener Quantity 22 total
*
*
*
