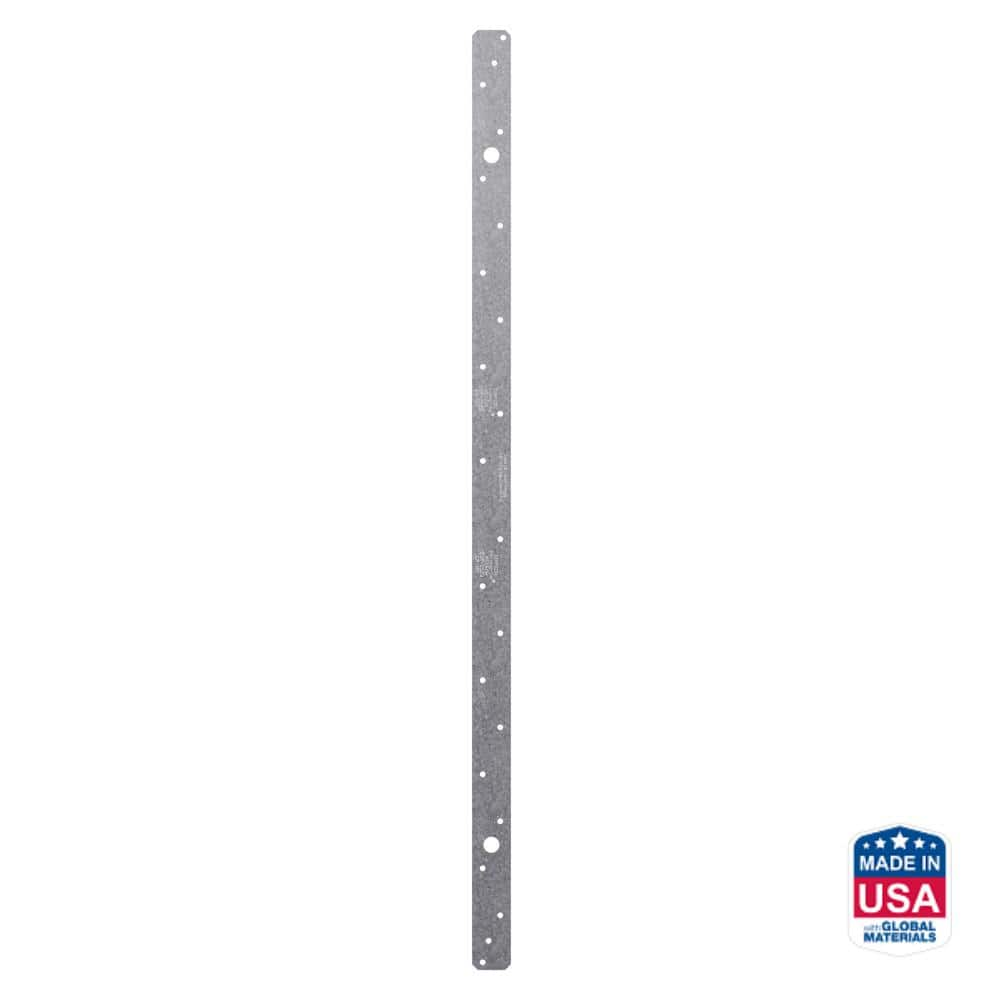

Simpson 30-Inch Medium Strap Tie MSTA30

Mfr.: Simpson Strong-Tie
Item #: I090806
Mfr. #: MSTA30
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.37
i h h

Description

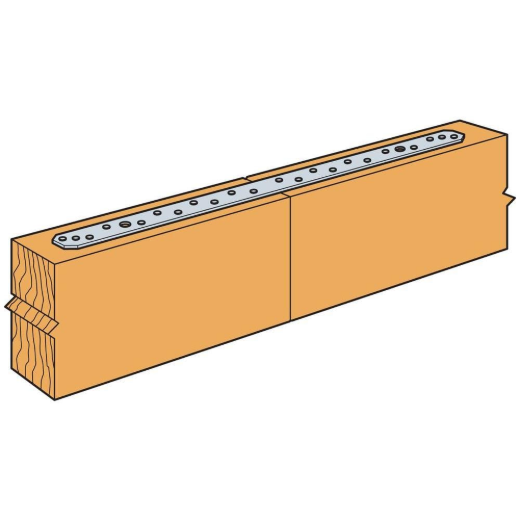

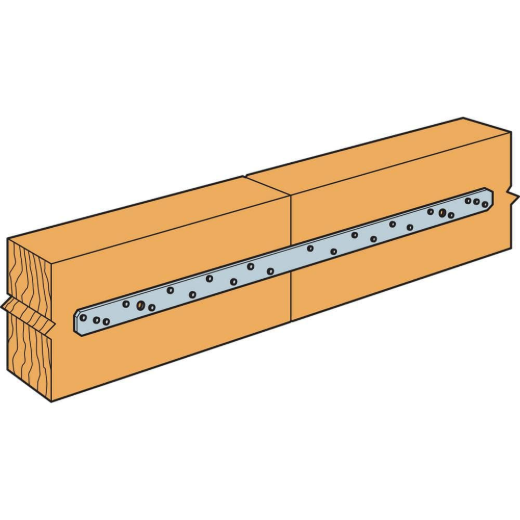

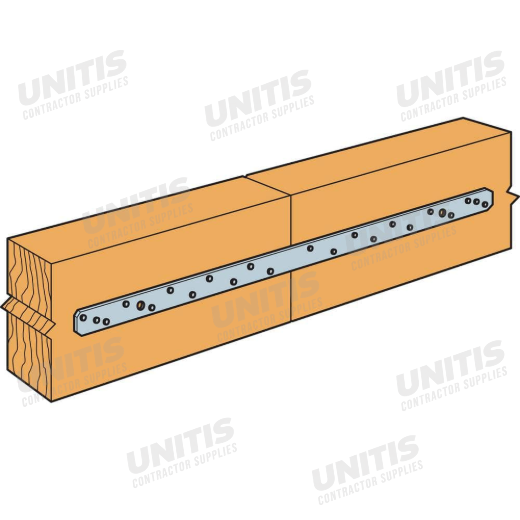

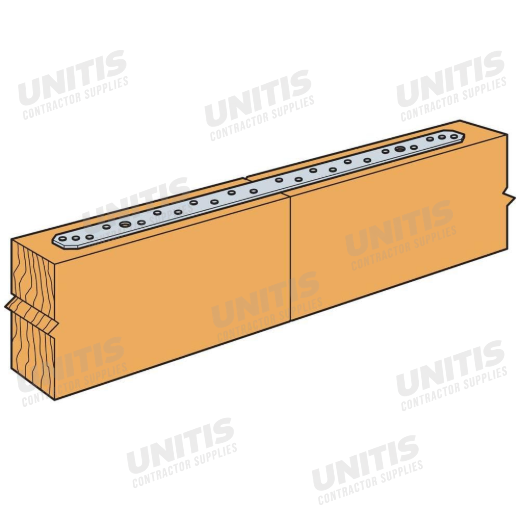

The Simpson Strong-Tie MSTA30 is a high-performance 30-inch medium strap tie designed to resist tension loads in wood-to-wood applications. This load-rated, precut strap is ideal for floor-to-floor clear span applications and provides essential structural reinforcement. It features a staggered nail pattern to help minimize wood splitting and is designed specifically for use on the edge of 2x members.
  • High-strength 16-gauge steel construction
  • G90 galvanized finish for corrosion resistance
  • Pre-punched holes for easy installation
  • Staggered hole pattern reduces wood splitting

Features

  • Designed to effectively resist wind and seismic forces in structural framing.
  • Versatile application including wall intersections and ridge ties.
  • Load-rated for optimal performance in tension-heavy wood connections.

Includes

  • (1) MSTA30 Medium Strap Tie
Products specifications
Model No. MSTA30
Length 30 inch
Width 1-1/4 inch
Material 16-Gauge Steel
Finish Galvanized (G90)
Fasteners Required (22) 0.148 inch x 2-1/2 inch Nails
Application Wood-to-Wood
Tension Load (DFSP) 2,050 lbs
Staggered Pattern Yes
*
*
*
