Simpson 30-Inch Medium Strap Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I090807
Mfr. #: MSTA30Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5.75
i h h

Description

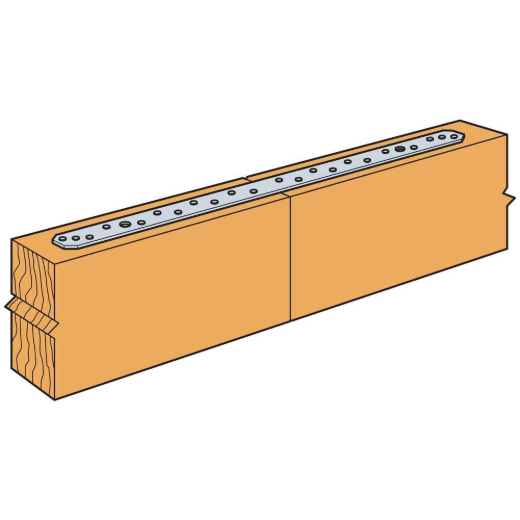

The Simpson Strong-Tie MSTA30Z is a versatile medium-duty strap tie designed to resist tension loads in wood-to-wood applications. It is specifically engineered for use on the edge of 2x members and features a staggered nail pattern that significantly reduces the potential for wood splitting. This load-rated strap is ideal for floor-to-floor clear span applications, wall intersections, and ridge ties, providing a reliable connection against wind and seismic forces. Its ZMAX galvanized finish ensures superior corrosion resistance for exterior and pressure-treated wood projects.
  • ZMAX Galvanized Finish
  • Staggered Nail Pattern

Features

  • Load-rated for reliable performance in wind and seismic applications.
  • Precut length for quick installation and optimal performance on the job site.
  • Manufactured from durable 16-gauge steel for high-capacity tension resistance.
  • Suitable for various connections including top plates, soles, and wall intersections.

Includes

  • (1) MSTA30Z Medium Strap Tie
Products specifications
Model No. MSTA30Z
Length 30 inch
Width 1-1/4 inch
Thickness 16 Gauge
Material Carbon Steel
Finish ZMAX Galvanized
Fasteners Required (22) 0.148 inch x 2-1/2 inch Nails
Application Wood-to-Wood Tension
*
*
*
