  • Simpson 33-13/16-In 14-Gauge Strap Tie

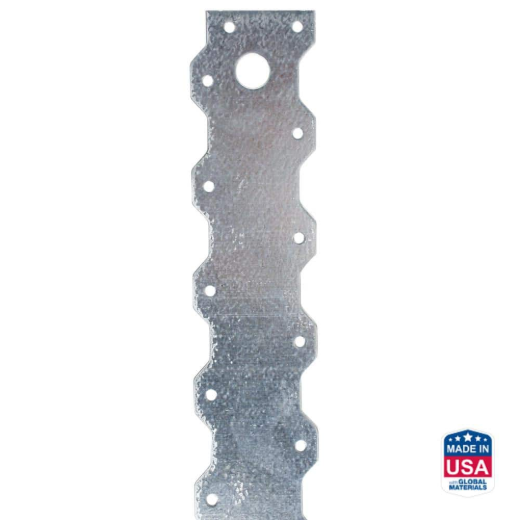

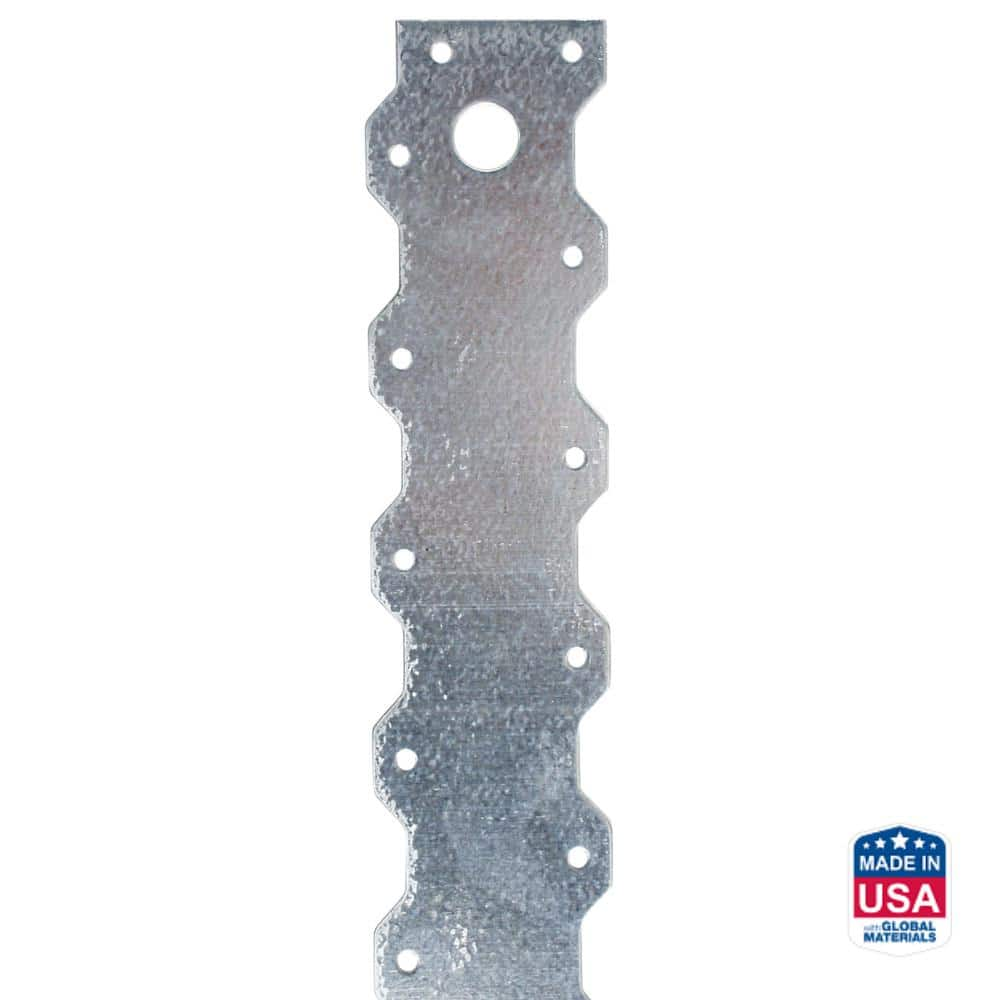

Simpson 33-13/16-In 14-Gauge Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090875
Mfr. #: ST6236
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $10.88
i h h

Description

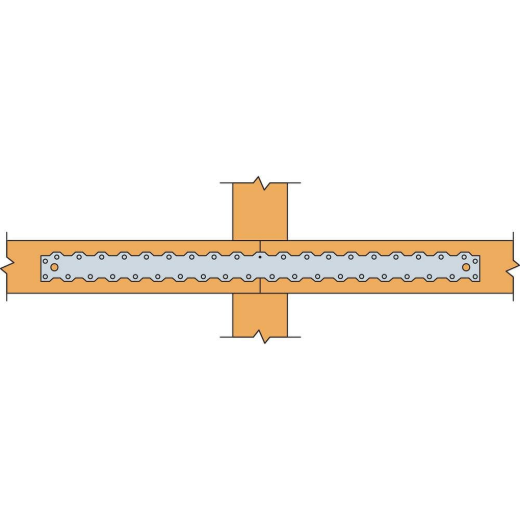

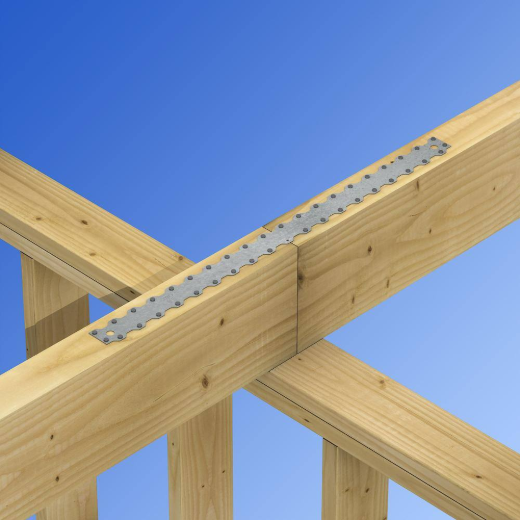

The Simpson Strong-Tie ST6236 is a load-rated, precut strap tie engineered to resist tension loads in a variety of structural applications. It is ideal for reinforcing joints where top or bottom plates are cut, at wall intersections, or when used as a ridge tie. This economical solution features a staggered nail pattern specifically designed to reduce the potential for wood splitting, ensuring a secure and reliable connection. The G90 galvanized finish provides added corrosion resistance for long-lasting performance in various construction environments.
  • G90 Galvanized Finish
  • 14-Gauge Steel Construction

Features

  • Engineered to resist wind and seismic forces in tension connections.
  • Precut lengths allow for quick and efficient installation on the jobsite.
  • Staggered nail pattern minimizes the risk of wood splitting during fastening.
  • Designed for edge use on 2x members for a clean and professional fit.

Includes

  • (1) ST6236 14-Gauge Strap Tie
Products specifications
Model Number ST6236

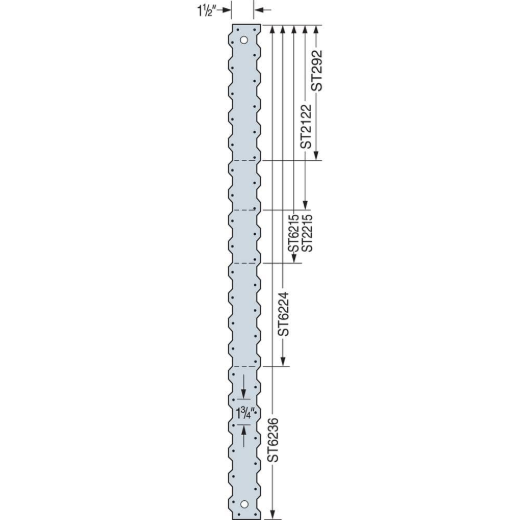

Length 33-13/16 inch
Width 2-1/16 inch
Thickness 14 Gauge
Material Carbon Steel
Finish Galvanized (G90)
Fasteners Required 40 - 16d Common Nails
*
*
*
