Simpson 36In Medium Strap Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I090809
Mfr. #: MSTA36Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6.60
i h h

Description

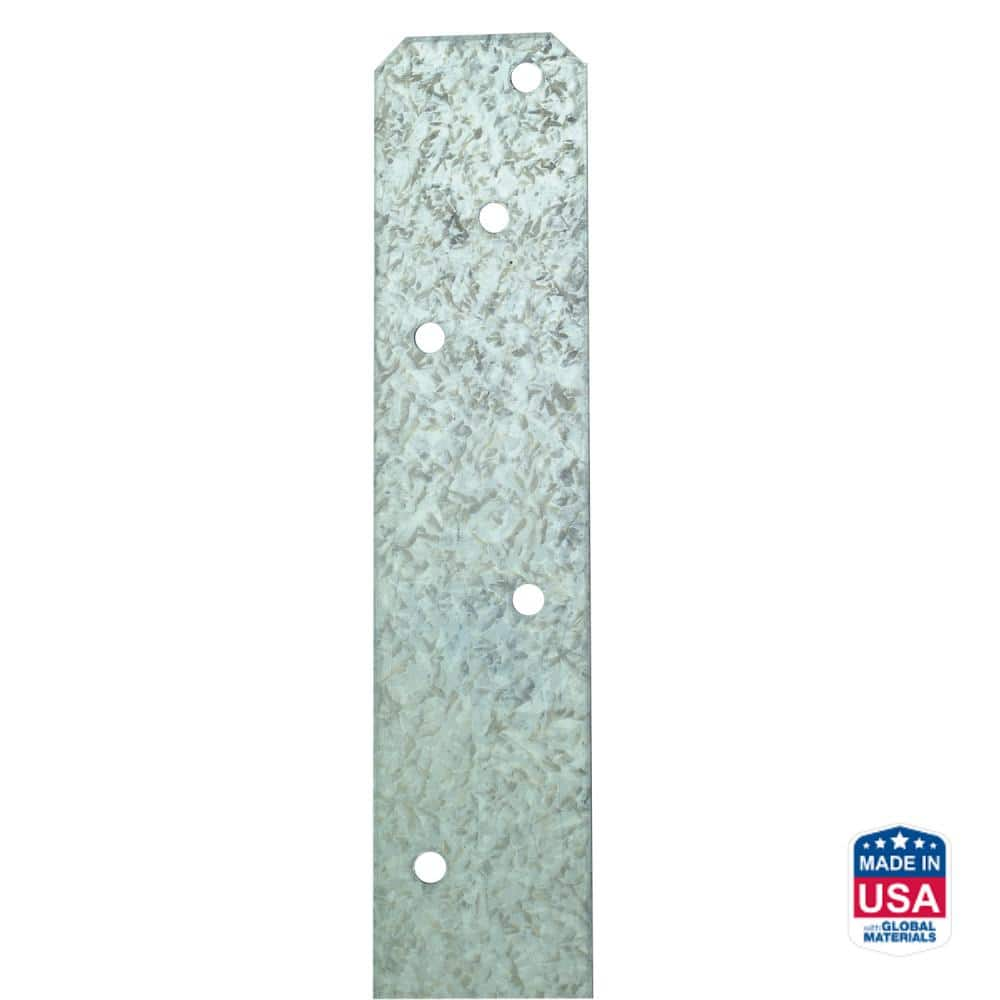

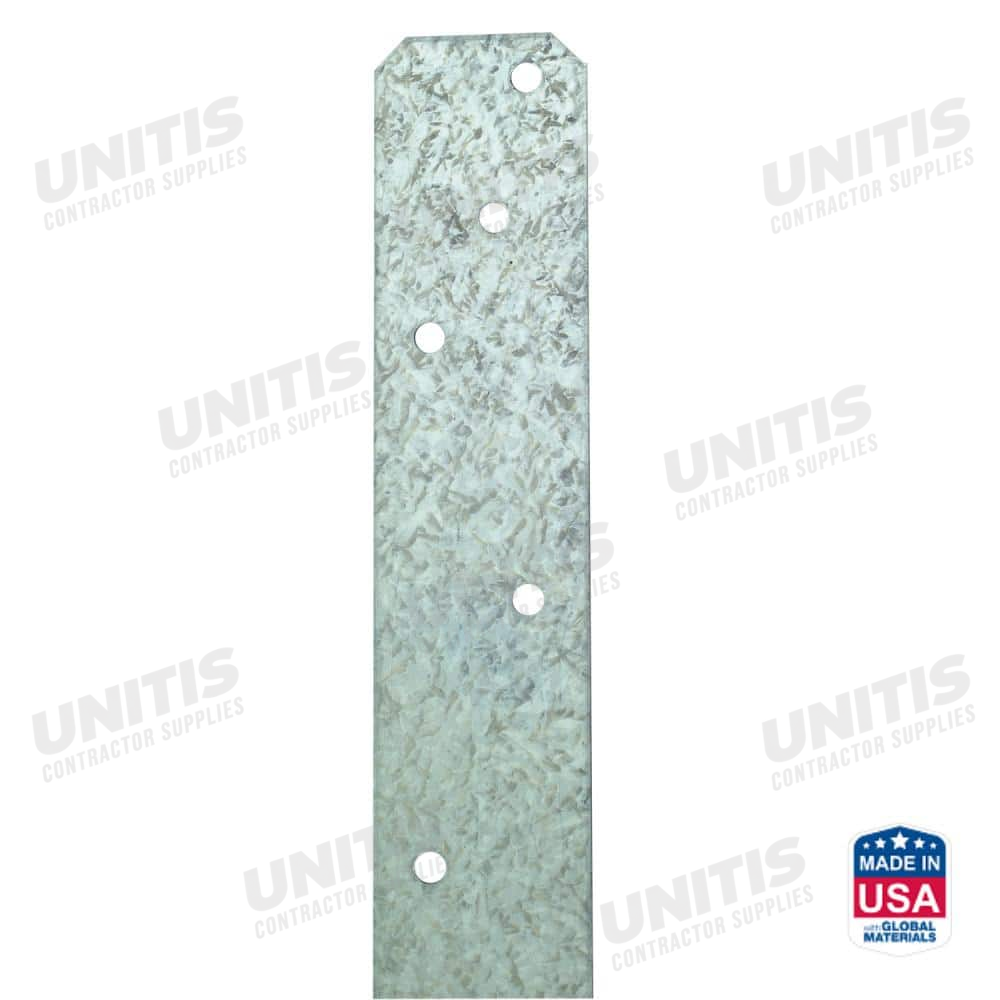

The Simpson MSTA36Z is a 36-inch, 16-gauge medium strap tie designed to resist tension loads in wood-to-wood uplift applications. This load-rated connector is specifically engineered for use on the edge of 2x members, providing superior performance compared to field-fabricated alternatives. Featuring a ZMAX galvanized finish, it offers enhanced corrosion resistance suitable for exterior and treated-wood applications. The strap's staggered nail pattern effectively minimizes wood splitting while ensuring a secure and reliable connection.
  • ZMAX Galvanized Finish
  • 16-Gauge Steel Construction
  • Staggered Nail Pattern
  • Load-Rated for Tension

Features

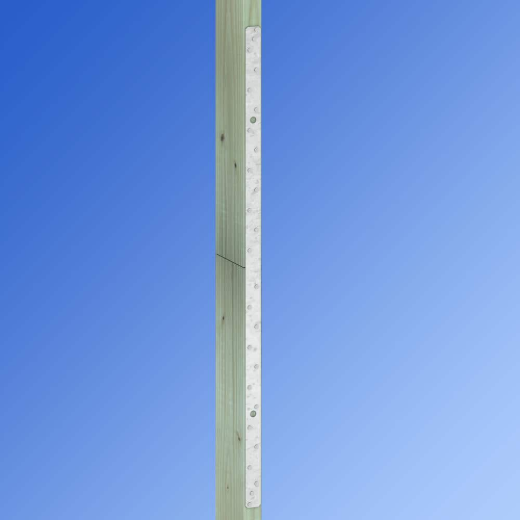

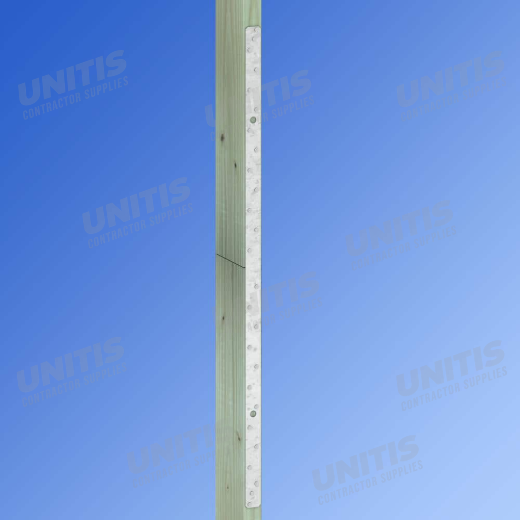

  • Designed to resist wind and seismic forces in floor-to-floor applications.
  • Pre-cut and load-rated for quick installation and optimal structural performance.

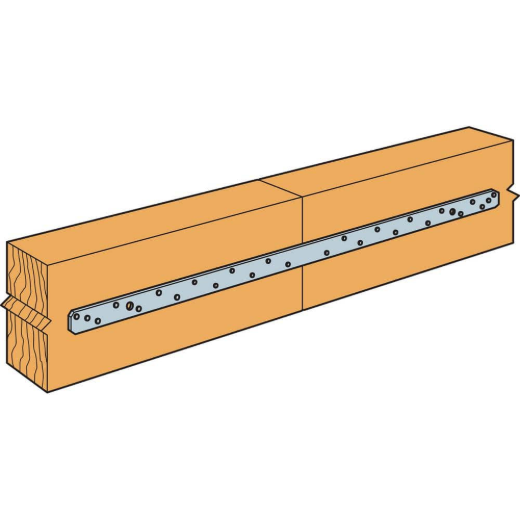

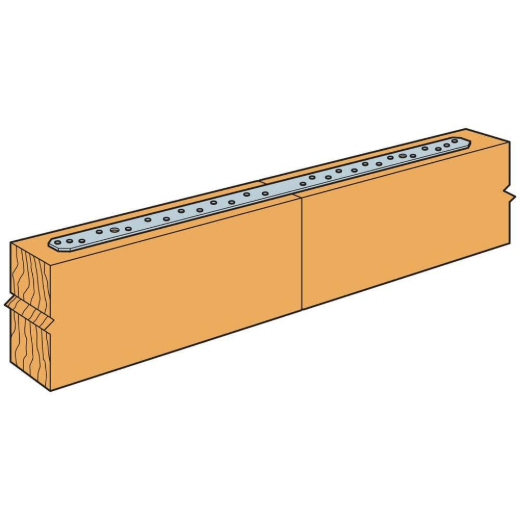

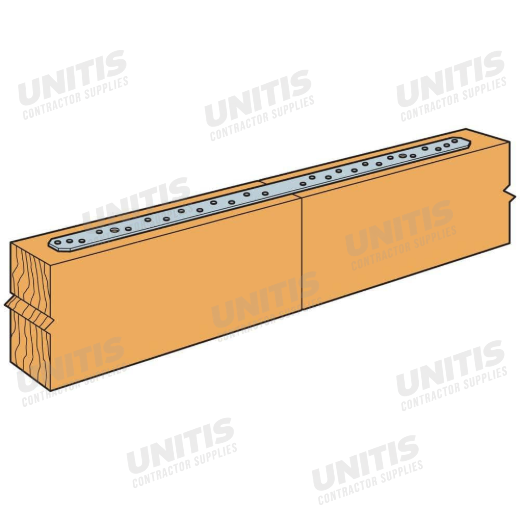

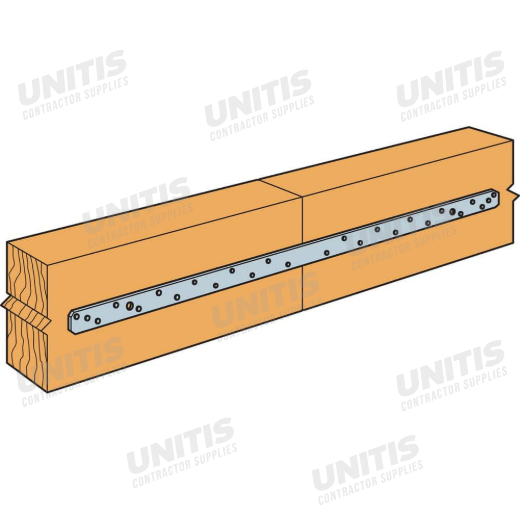

  • Suitable for use on the edge of 2x lumber members.
  • Complies with ASTM A153 specifications for hot-dip galvanized fasteners.

Includes

  • (1) MSTA36Z 36 inch Medium Strap Tie
Products specifications
Model MSTA36Z
Material 16-Gauge Steel
Finish ZMAX (G185 Galvanized)
Length 36 inch
Width 1-1/4 inch
Fasteners Required (26) 0.148 inch x 2-1/2 inch Nails
Allowable Tension Load 1,950 lbs
Fastener Type 10d Nails
*
*
*
