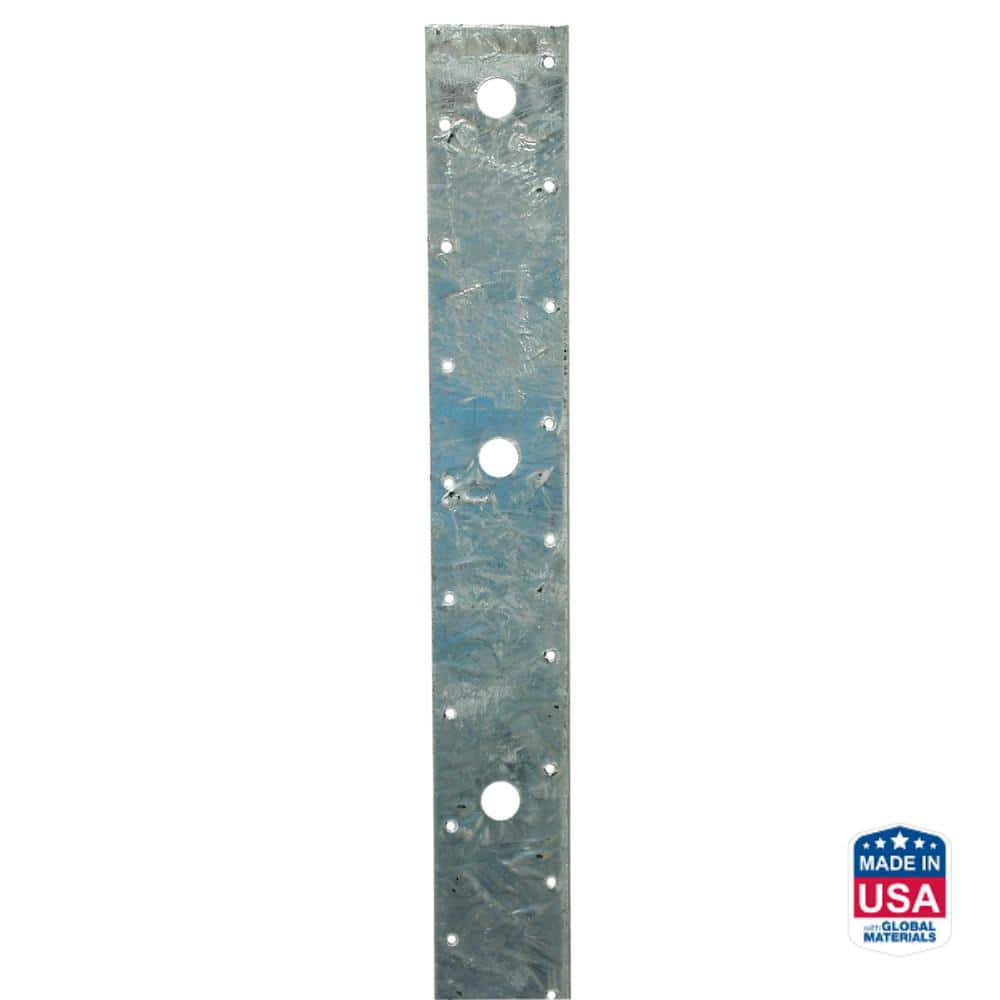

Simpson 37-Inch Medium Strap Tie Hdg

Mfr.: Simpson Strong-Tie
Item #: I090790
Mfr. #: MST37HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $35.46
i h h

Description

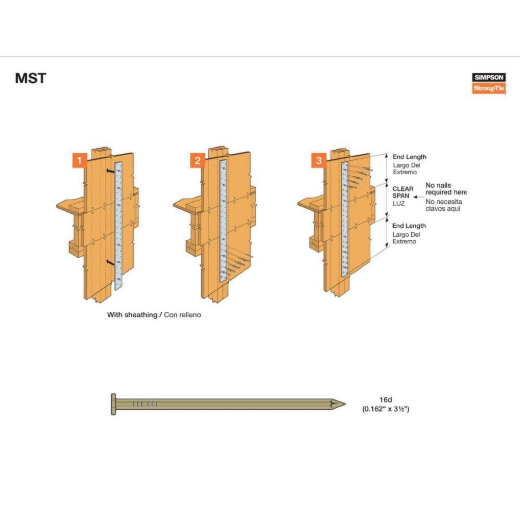

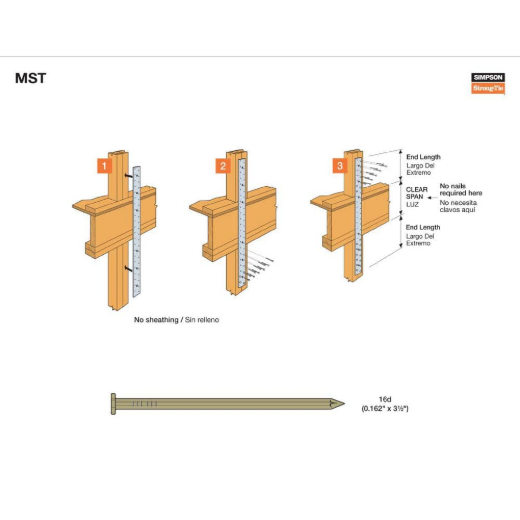

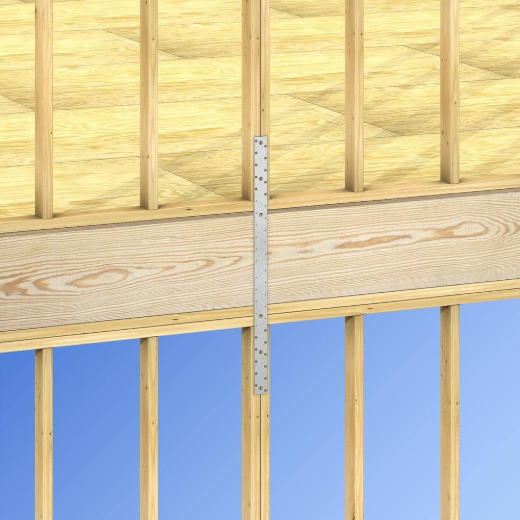

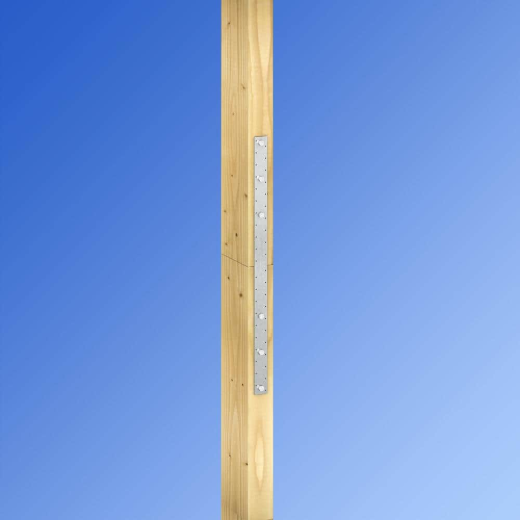

The Simpson Strong-Tie MST37HDG is a high-capacity, load-rated strap tie designed to resist tension loads in floor-to-floor and other wood-to-wood applications. This medium-duty strap features a dense nailing pattern for optimal performance and can be installed using either nails or bolts. Its hot-dip galvanized finish provides superior corrosion resistance, making it suitable for exterior use and treated lumber. These precut straps are ideal for reinforcing wall intersections, ridge ties, and top or bottom plate connections.
  • Hot-Dip Galvanized Finish
  • 12-Gauge Steel Construction
  • Dense Nailing Pattern

Features

  • Designed to resist wind and seismic forces
  • Precut for quick installation and performance
  • Suitable for double 2x members or greater

Includes

  • (1) MST37HDG Strap Tie
Products specifications
Model Number MST37HDG
Material Steel
Gauge 12 Gauge (97 mil)
Finish Hot-Dip Galvanized
Length 37-1/2 inch
Width 2-1/16 inch
Fasteners Required (42) 0.162 inch x 3-1/2 inch Nails
Tension Load (DFSP) 5,395 lbs
Compliance ASTM A123 / A153
*
*
*
