Simpson 4-7/8 Reinforcing Angle

Mfr.: Simpson Strong-Tie
Item #: I093228
Mfr. #: LS50
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $3.95
i h h

Description

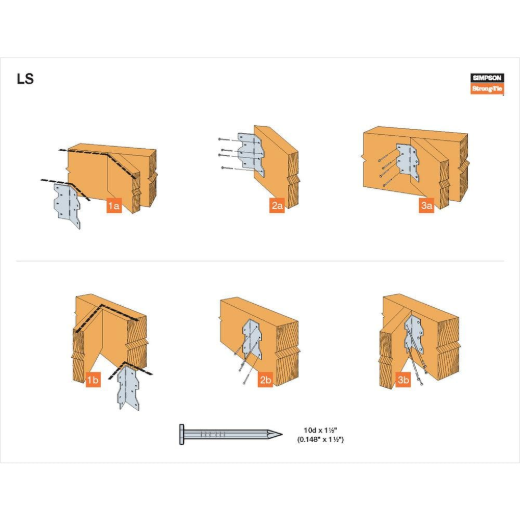

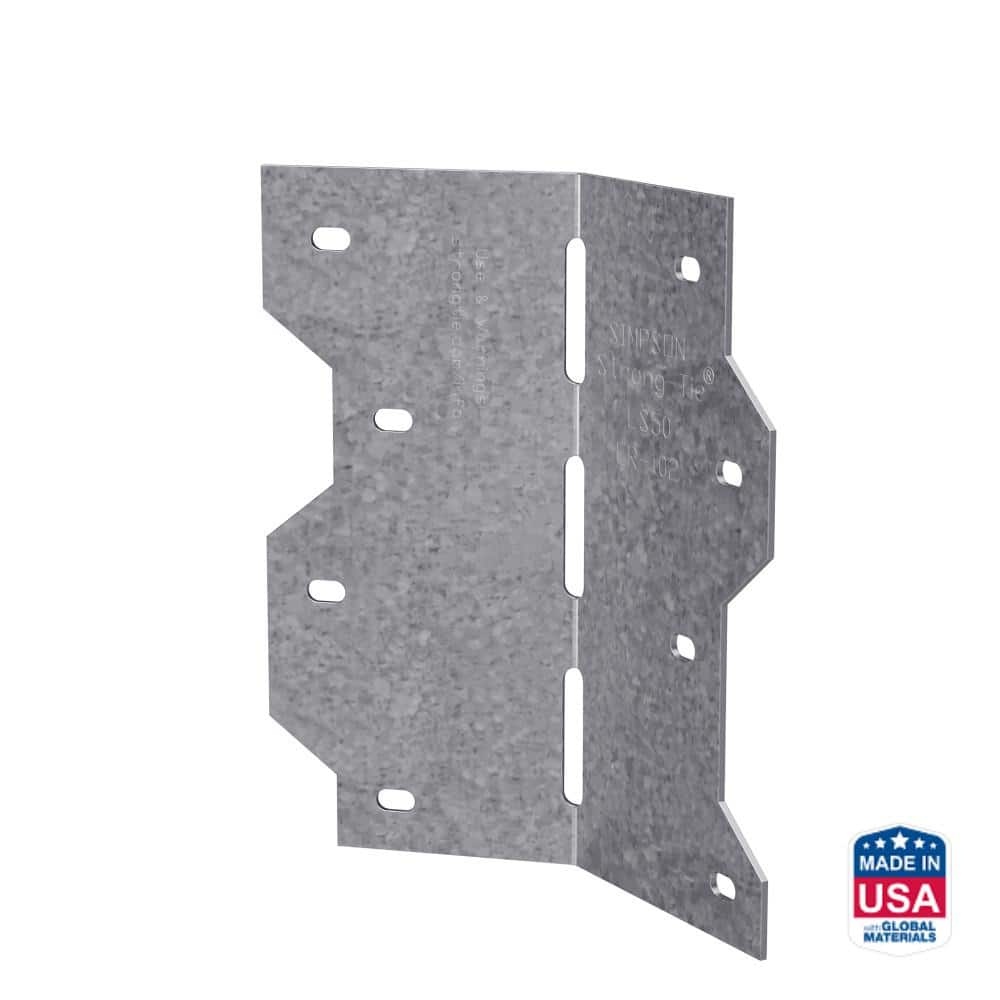

The Simpson Strong-Tie LS50 is a versatile, field-adjustable reinforcing angle designed to strengthen intersecting framing members in wood construction. This skewable angle can be bent to accommodate a wide range of framing configurations, making it ideal for custom angles and repairs. It is a cost-effective solution for connecting roof rafters to hip rafters and offers a durable design with well-defined fastener locations for reliable structural support. The LS50 is made from 18-gauge steel and is galvanized for extra corrosion resistance.
  • Field-adjustable from 0 to 135 degrees

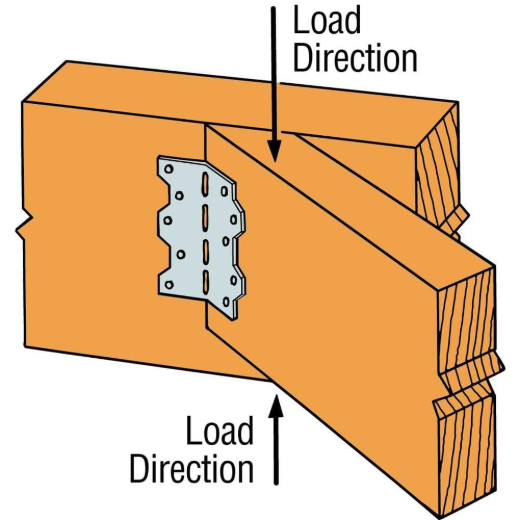

  • Strengthens intersecting framing members

Features

  • General utility-reinforcing angles with multiple uses.
  • Ideal for household repairs and DIY projects.
  • Made from 18 ga steel.
  • Galvanized (G90) for extra corrosion resistance.

Includes

  • LS50 Reinforcing Angle
Products specifications
Material 18 ga steel
Finish Galvanized (G90)
Angle Adjustment 0-135 degrees
Length 4-7/8 in
Gauge 18
Type Skewable Reinforcing Angle
*
*
*
