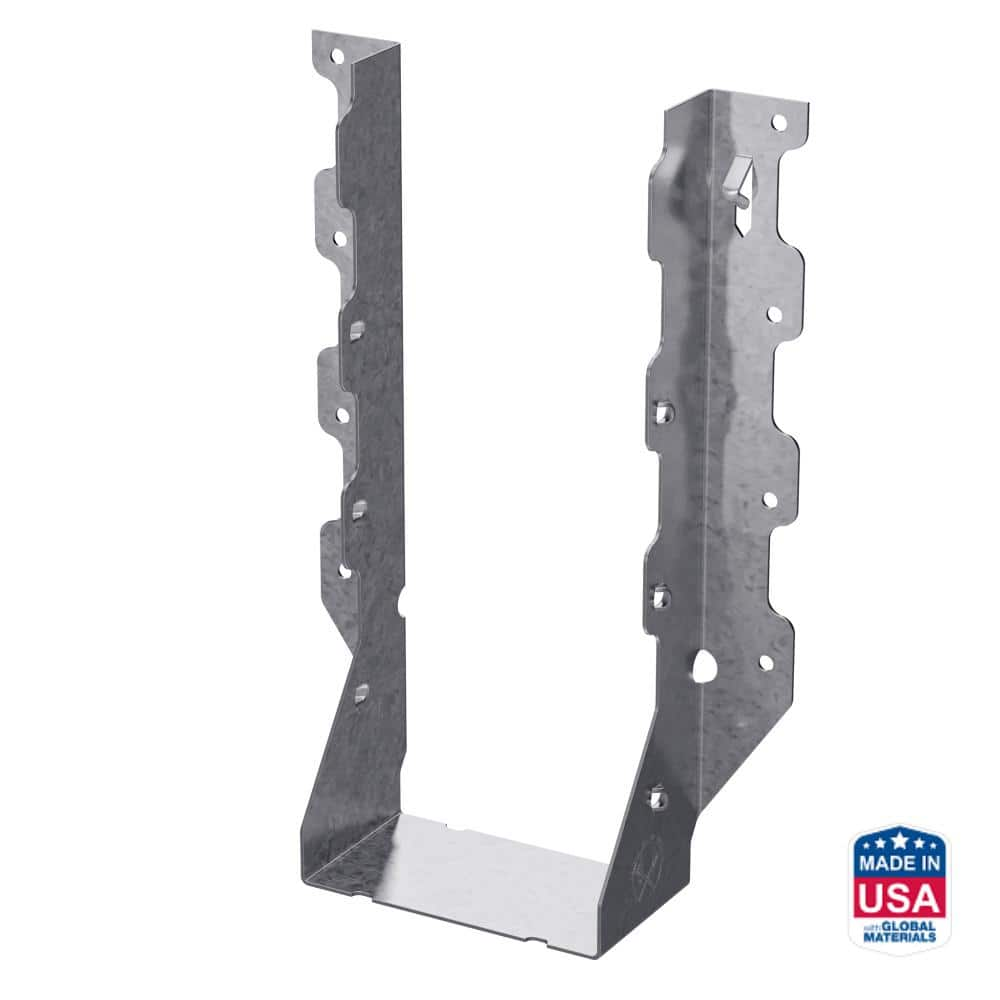

Simpson LUS - 4" x 10" Double Shear Face Mount Joist Hanger ZMAX

Mfr.: Simpson Strong-Tie
Item #: I091820
Mfr. #: LUS410Z
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $9.62
i h h

Description

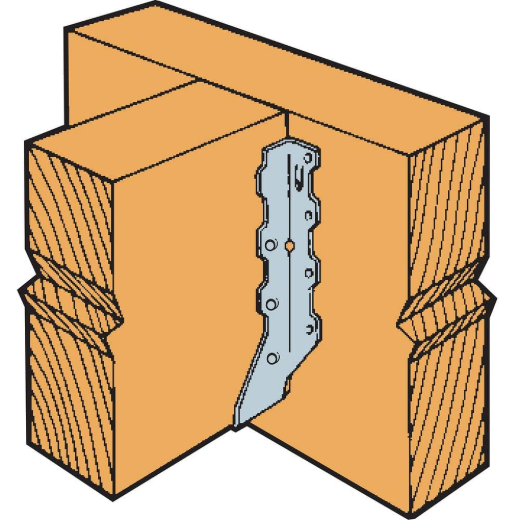

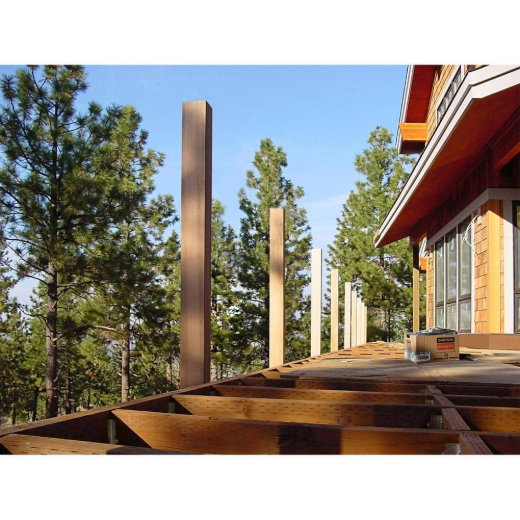

The Simpson Strong-Tie LUS410Z is a light-capacity, U-shaped face mount hanger designed for common 4x10 lumber sizes in wood-framed construction. It features innovative double-shear nailing technology, which distributes the load across two points on each joist nail to provide greater strength while allowing for faster installation with fewer nails. Coated with ZMAX, this hanger offers enhanced corrosion resistance, making it an ideal choice for outdoor and treated-lumber applications such as decks, porches, and other exterior structures.

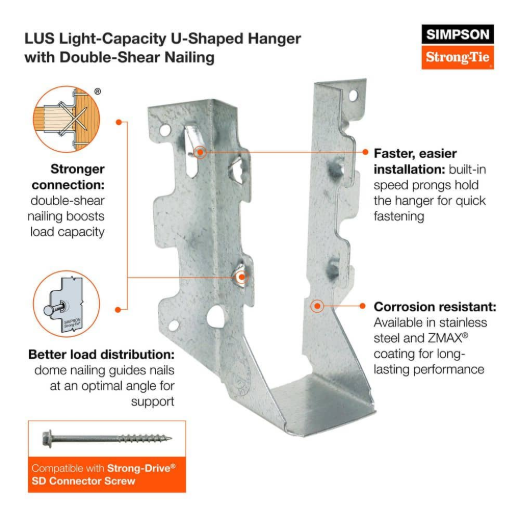

  • ZMAX Coating for superior corrosion resistance in outdoor environments
  • Double-Shear Nailing technology for increased load capacity

Features

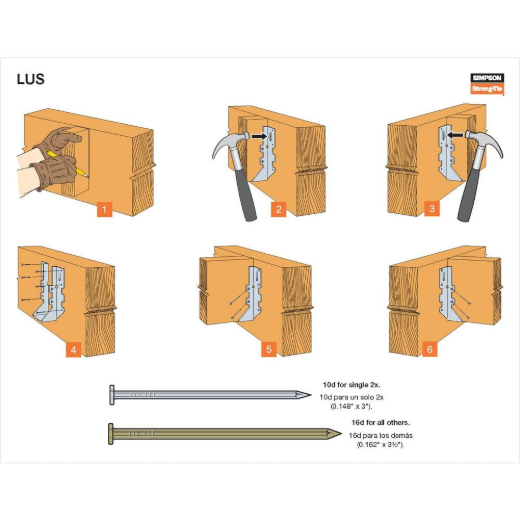

  • Speed prongs allow for temporary positioning and easier installation
  • Engineered for solid sawn lumber and code-compliant structural performance
Products specifications
Connector Type Face-Mount Joist Hanger
Country of Origin USA (subject to change)
Finish / Coating ZMAX (G185)
Joist / Lumber Size 4 in x 10 in
Manufacturer's Warranty Limited Lifetime
Material Galvanized Steel
Mount Style Face-Mount
Series LUS
Steel Gauge 18 ga
*
*
*
