Simpson 4 X 10 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091341
Mfr. #: HHUS410
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $17.61
i h h

Description

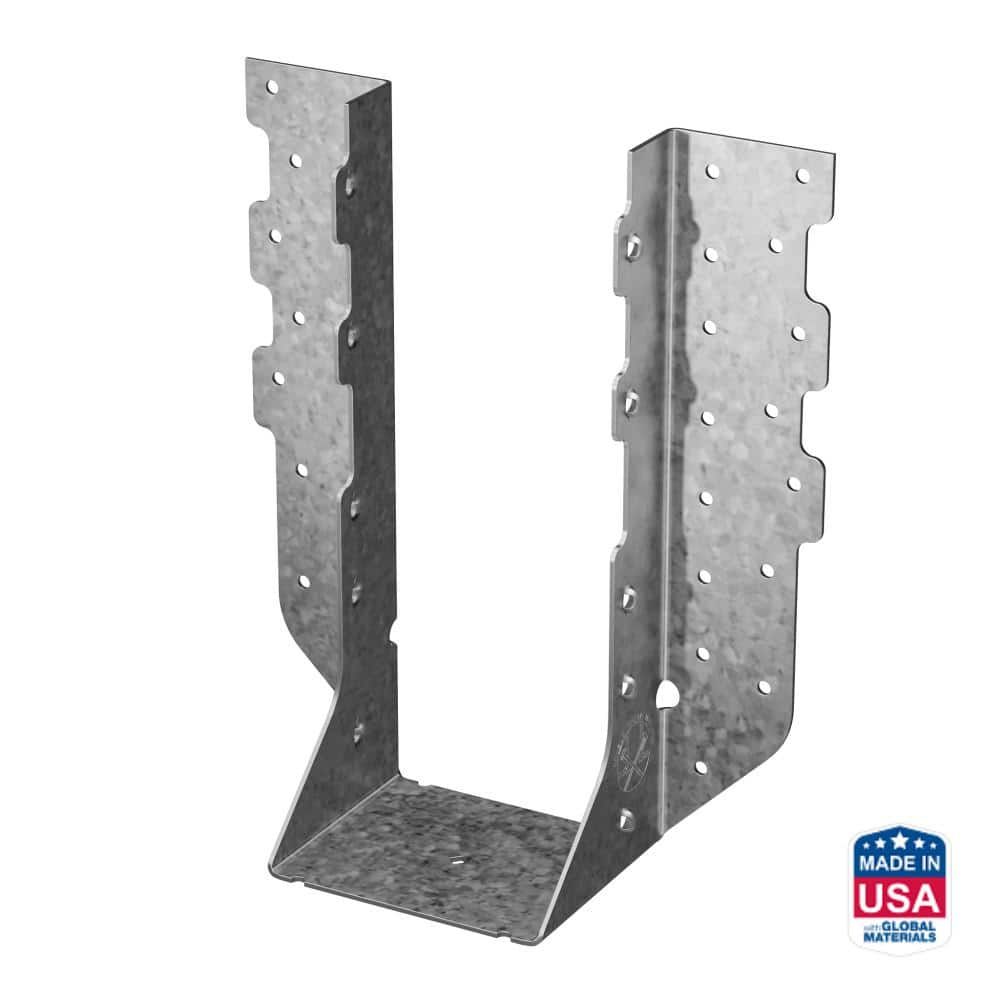

The Simpson Strong-Tie HHUS410 is a heavy-duty face-mount hanger designed for 4x10 nominal lumber applications where high load capacities are essential. It features a patented double-shear nailing design that distributes the load through two points on each joist nail, significantly increasing connection strength. This value-engineered hanger allows for faster installation using fewer nails than standard models, providing a secure and economical structural solution.
  • G90 Galvanized Coating
  • Double-Shear Nailing Design

Features

  • Extra-heavy load capacity supports substantial structural wood framing and plated trusses.

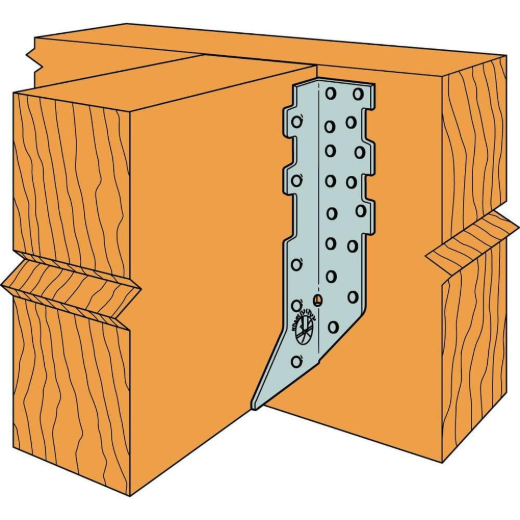

  • Versatile installation allows the hanger to be added after the beam is secured in place.
  • Constructed from durable 14-gauge steel for long-lasting structural integrity.
  • Tested and code-compliant for professional residential and commercial construction.

Includes

  • (1) HHUS410 Face Mount Hanger
Products specifications
Joist Size 4 x 10
Material Steel
Finish G90 Galvanized
Thickness 14 Gauge
Width 3-5/8 inch
Height 9 inch
Nailing Type Double Shear
Mounting Type Face Mount
Fastener Type 16d Common Nails
*
*
*
