Simpson 4 X 18 Adjustable Truss Hanger

Mfr.: Simpson Strong-Tie
Item #: I091934
Mfr. #: THA418
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $11.66
i h h

Description

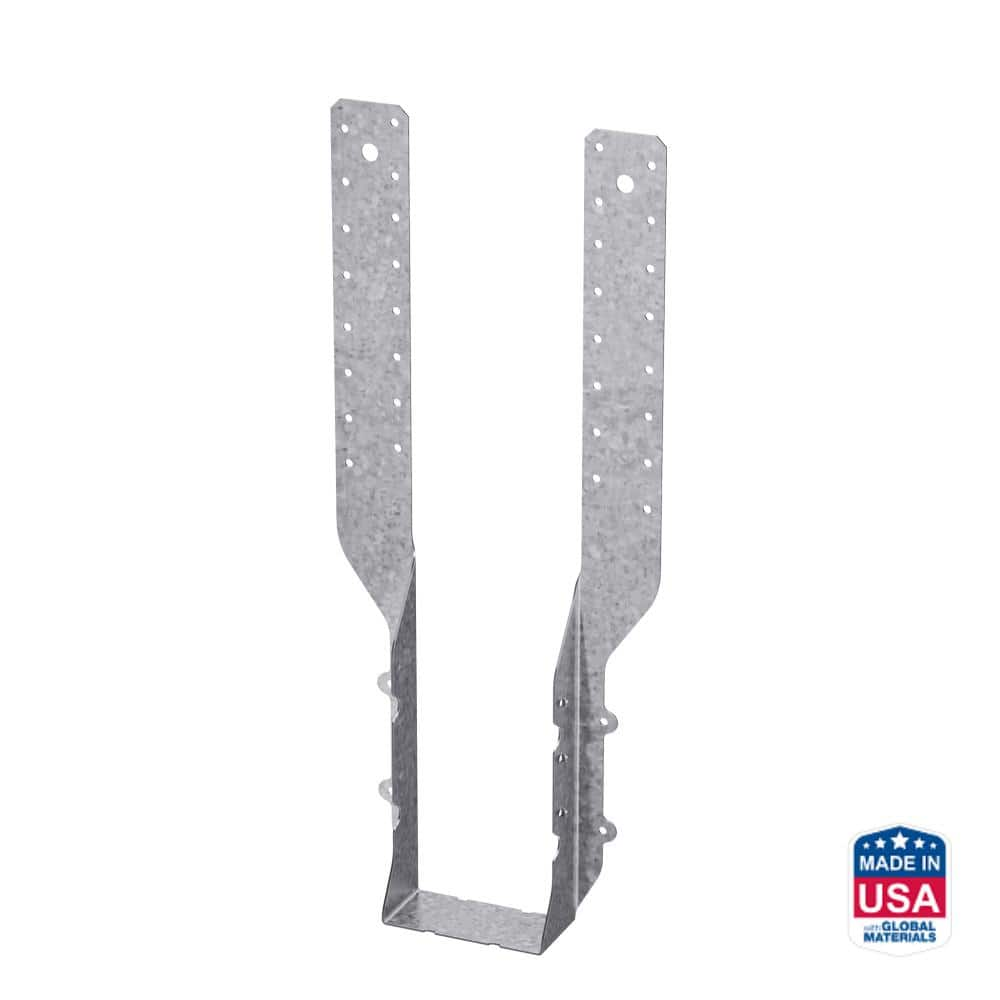

The Simpson THA418 is a versatile, U-shaped truss hanger designed to support trusses and beams in wood construction. Featuring extra-long straps that can be field-formed, this hanger offers exceptional height adjustability and top-flange installation convenience. Its robust design is ideal for applications where the height location of the supported member needs to be precise, ensuring a strong and reliable connection.
  • Extra-long straps for field-adjustable height
  • G90 galvanized coating for corrosion resistance

Features

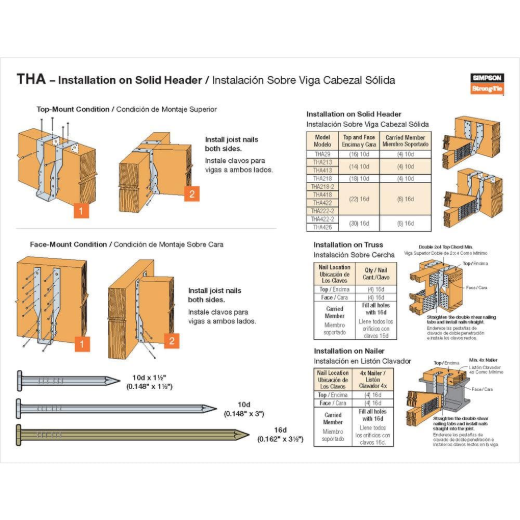

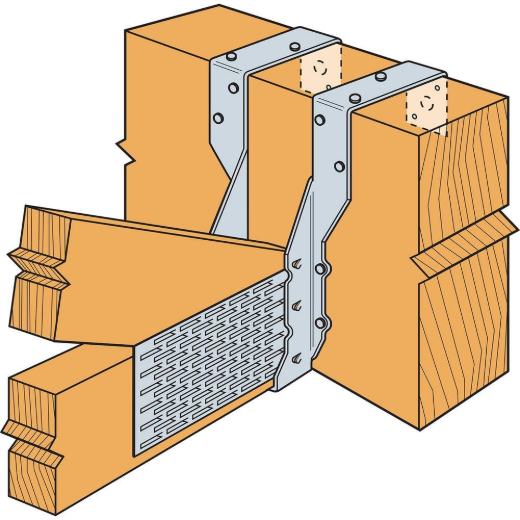

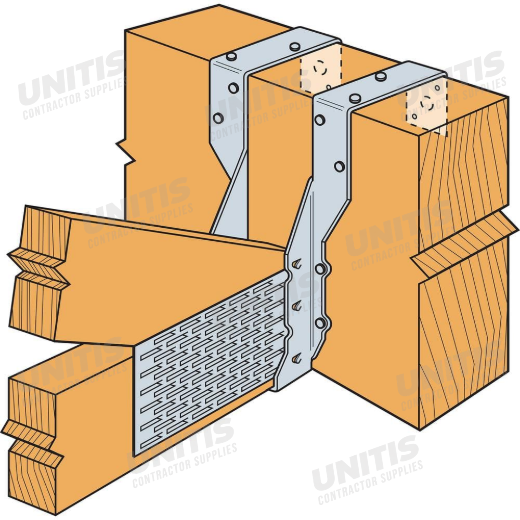

  • Can be installed as either a top-flange or face-mount hanger.
  • Dense nail pattern in straps provides multiple installation options.

Includes

  • 1 Adjustable Truss Hanger
Products specifications
Model THA418
Material Steel
Finish G90 Galvanized
Gauge 16
Joist Size 4x Floor Truss
Height 17-1/2 in
Width 3-5/8 in
*
*
*
