Simpson CBSQ 4x6 Standoff Column Base

Mfr.: Simpson Strong-Tie
Item #: I037462
Mfr. #: CBSQ46
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $66.10

Description

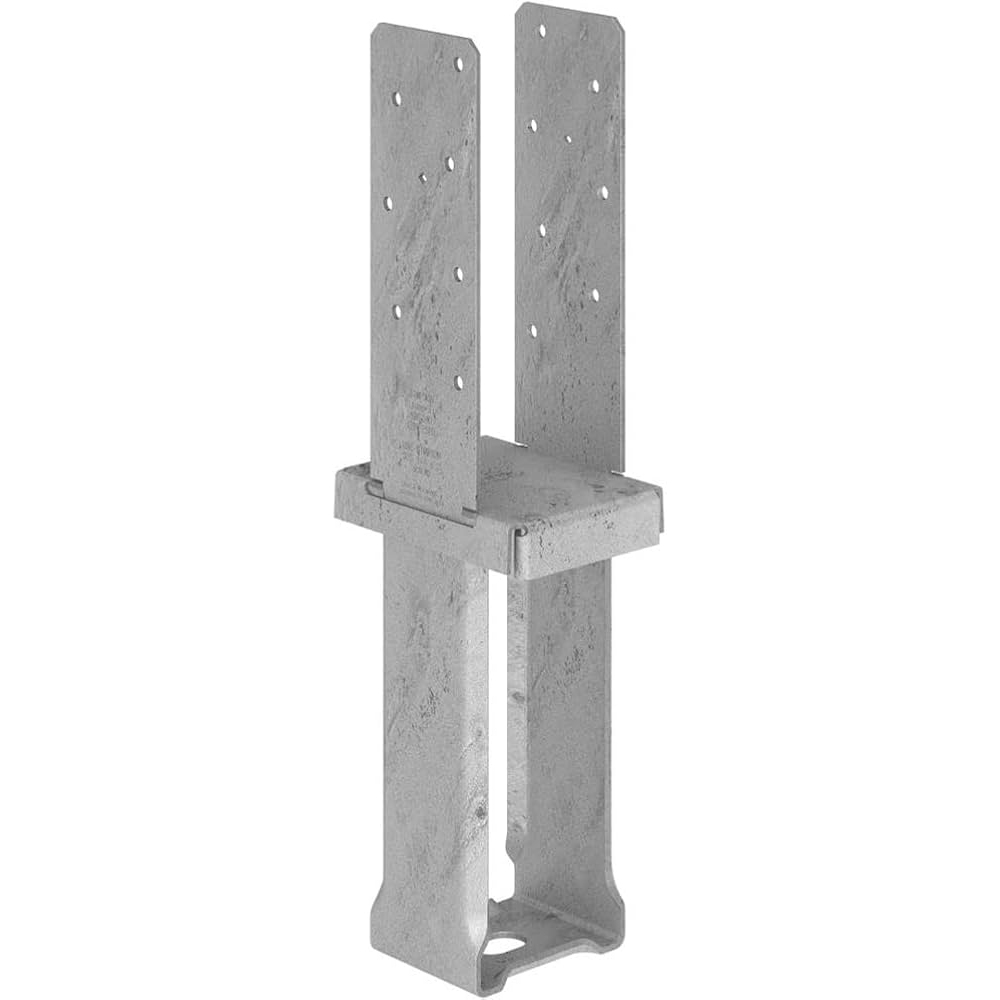

The CBSQ46 is a 4x6 column base designed to link columns to concrete footings, featuring a 1-inch standoff for code compliance and included SDS Heavy-Duty Connector screws for fast installation.
  • 1-inch standoff meets code requirements for structural posts
  • Includes Strong-Drive SDS Heavy-Duty Connector screws
  • Provides greater net section area than bolts
  • Galvanized finish; some models available in HDG or stainless steel

Features

  • 1-inch standoff meets code requirements for structural posts
  • Includes Strong-Drive SDS Heavy-Duty Connector screws
  • Provides greater net section area than bolts
  • Galvanized finish; some models available in HDG or stainless steel

Includes

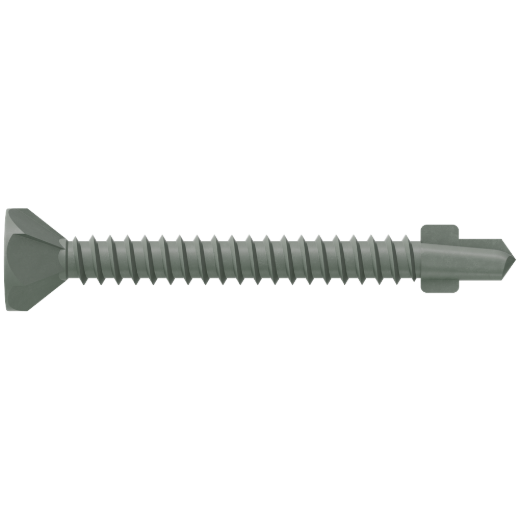

  • 14 Strong-Drive SDS Heavy-Duty Connector screws (1/4 x 2 in.)

Specifications


ModelCBSQ46Nominal Column Size4x6
Material12 ga. base, 10 ga. x 3 inch strapDimensions (W1)3 9/16 inch
Dimensions (W2)5 5/16 inchDimensions (D)7 13/16 inch
Dimensions (H)8 11/16 inchFasteners(14) 1/4 x 2 inch SDS SS
DFSP Allowable Uplift (Uncracked)5,390 lb.DFSP Allowable Uplift (Cracked)4,650 lb.
DFSP Allowable Uplift (WindSeismic AB)14,420 lb.FinishGalvanized
*
*
*
