Simpson BC - 4" x 6" Post Cap ZMAX

Mfr.: Simpson Strong-Tie
Item #: I092086
Mfr. #: BC46Z
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $19.09
i h h

Description

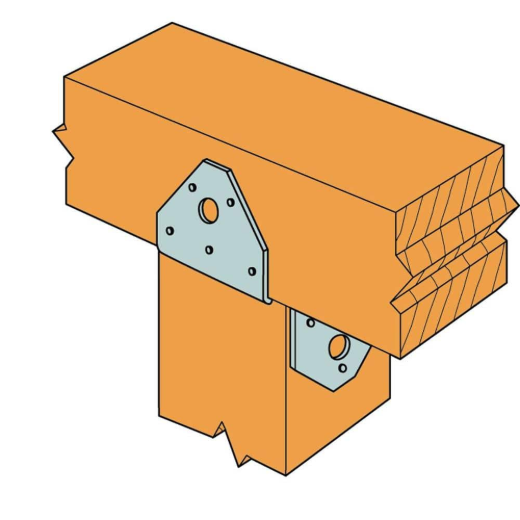

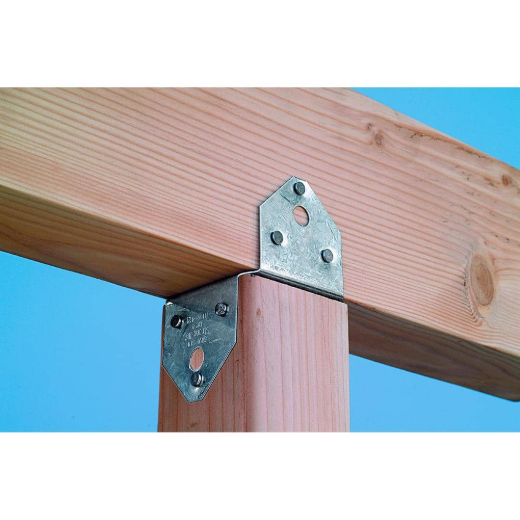

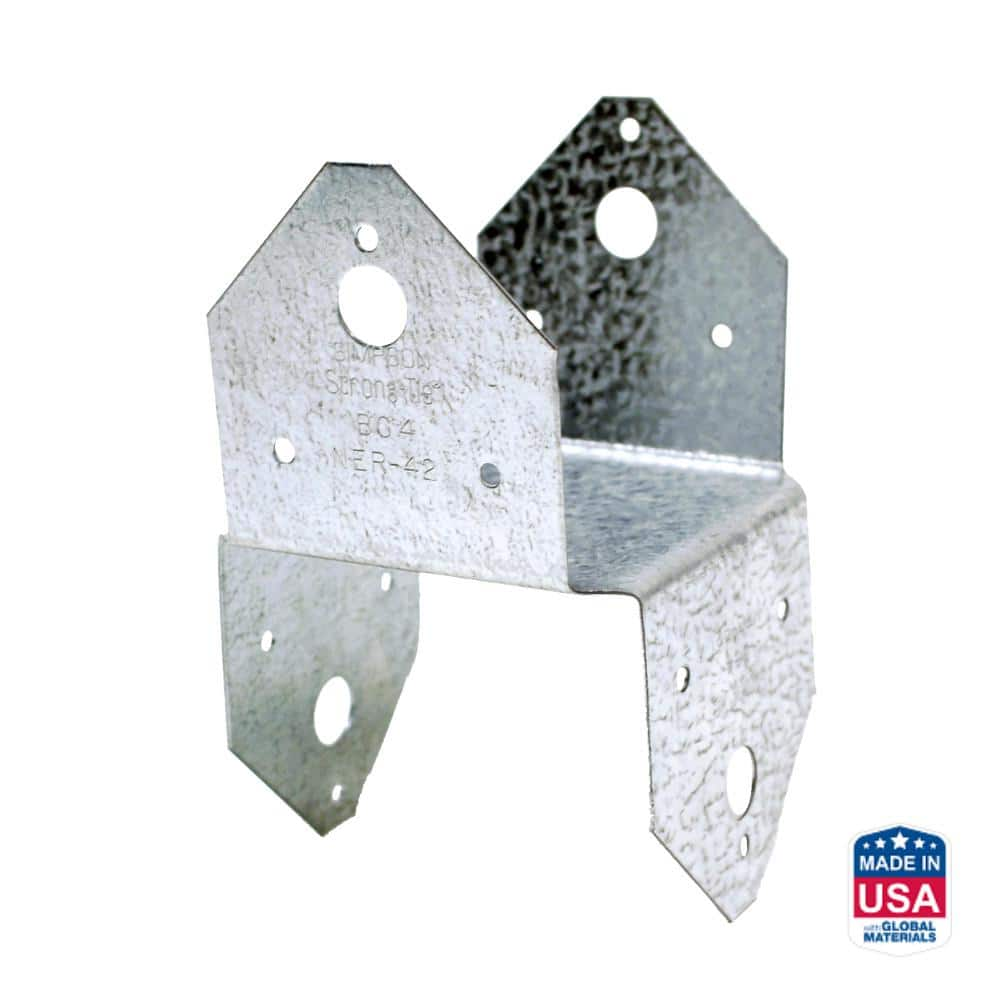

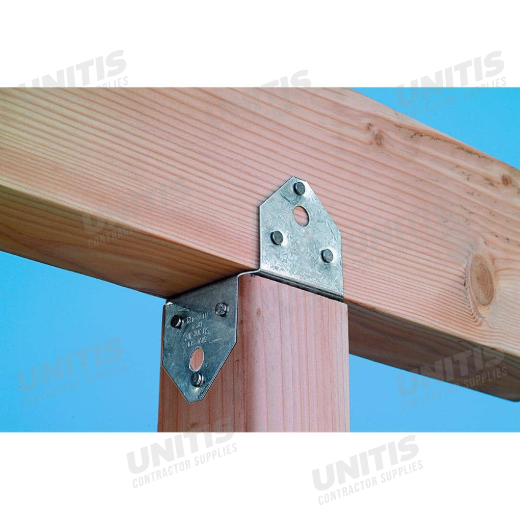

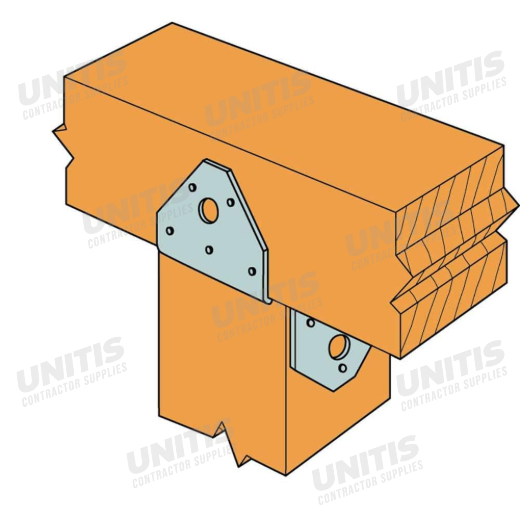

The Simpson Strong-Tie BC46Z post cap is engineered to provide a secure, positive connection between a beam and a 4x6 post. Constructed from 18-gauge steel and featuring a ZMAX galvanized finish, this connector offers essential durability and corrosion resistance for exterior and pressure-treated wood applications. It is specifically designed for light-duty framing, providing both uplift and lateral resistance to enhance the structural stability of your project.
  • Provides uplift and lateral resistance
  • ZMAX coating for superior corrosion resistance

Features

  • Opposing flanges provide increased lateral resistance
  • Reduces chance of post splitting compared to angled nailing

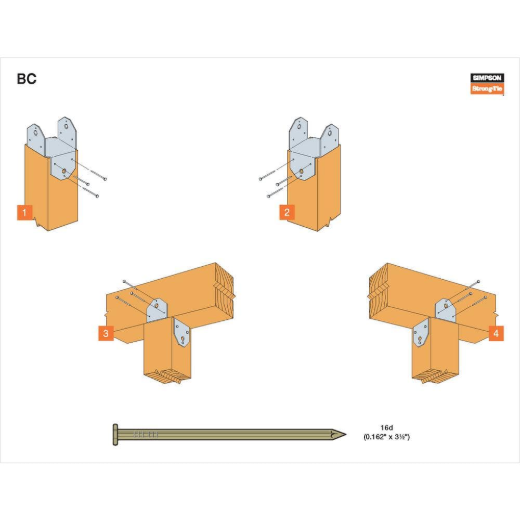

  • Attains full allowable load with common or pneumatic nails
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-2604
Connector Type Post Cap
Country of Origin Varies (subject to change)
Finish / Coating ZMAX (G185)
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x6
Series BC
*
*
*
