Simpson 4 X 6 Standoff Post Base

Mfr.: Simpson Strong-Tie
Item #: I091031
Mfr. #: PBS46
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $27.55
i h h

Description

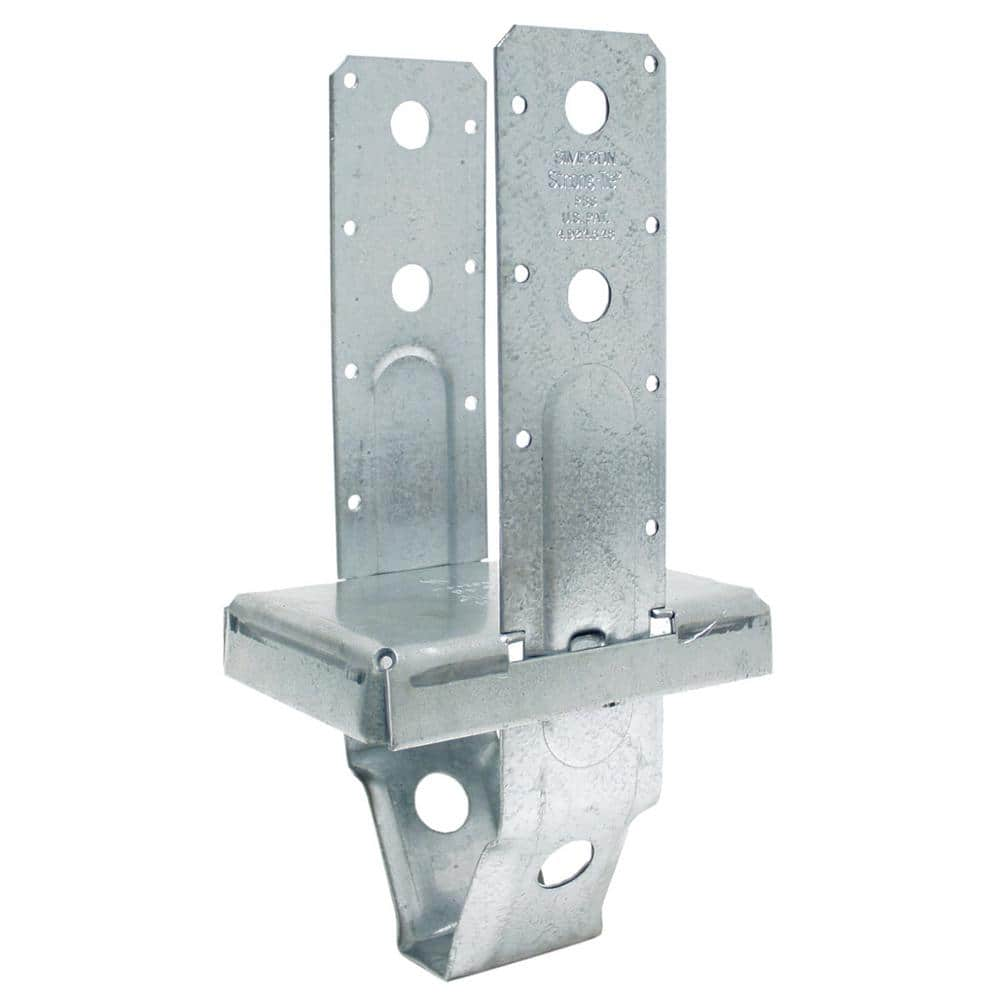

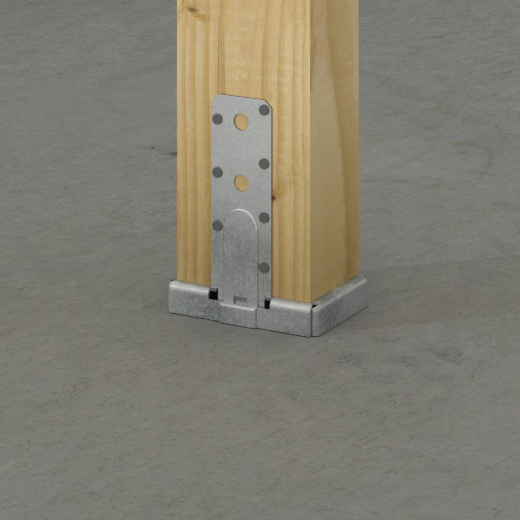

The Simpson Strong-Tie PBS46 is a high-quality standoff post base designed to provide a secure, cast-in-place connection for 4x6 wood posts in concrete foundations. This durable connector features a 1-inch standoff to keep the post elevated above the concrete surface, significantly reducing the risk of moisture-induced decay and rot. Please note that the PBS46 has been discontinued and replaced by the PBST46Z model, which offers enhanced load capacities and a ZMAX coating.
  • G90 Galvanized Finish
  • 1-Inch Standoff Height

Features

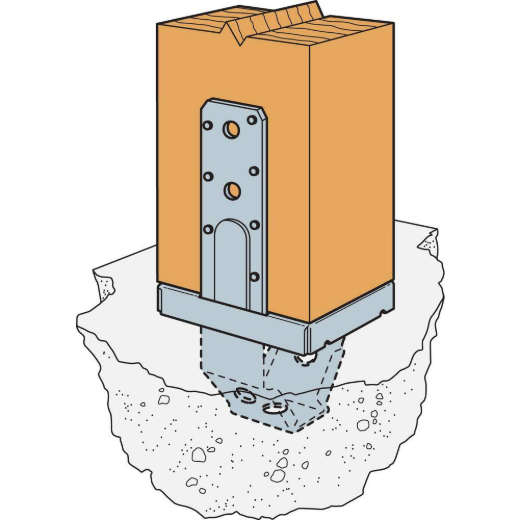

  • Designed to be embedded in wet concrete for a robust structural connection.
  • Manufactured from heavy-gauge steel with a 12-gauge base and 14-gauge straps.
  • Features holes in the bottom of the straps to allow free concrete flow and increased strength.

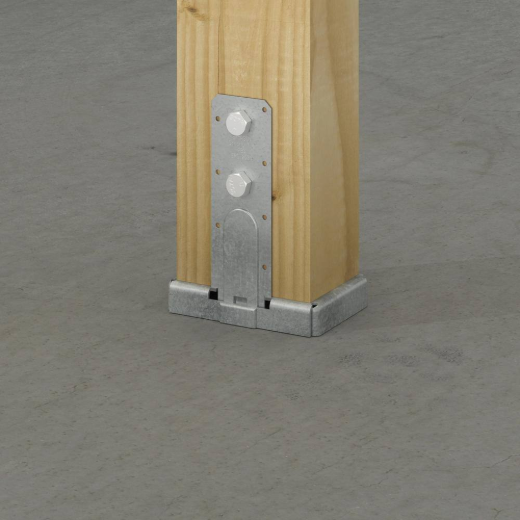

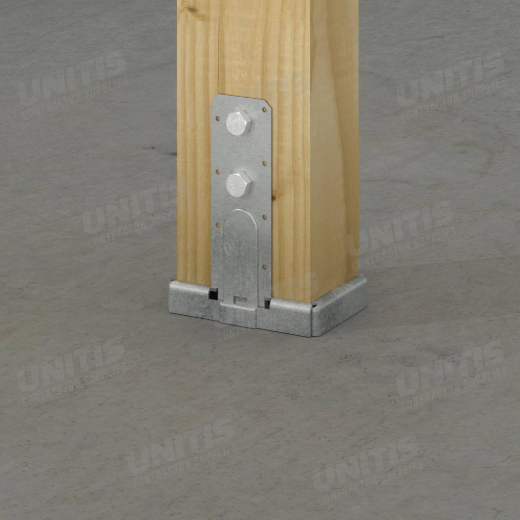

  • Compatible with both nail and bolt fastening options for installation flexibility.

Includes

  • (1) Galvanized Standoff Post Base for 4x6
Products specifications
Post Size 4x6 Nominal
Material Heavy-Gauge Steel
Finish G90 Galvanized
Base Gauge 12 Gauge
Strap Gauge 14 Gauge
Standoff Height 1 Inch
Fasteners (Nails) (14) 0.162 inch x 3-1/2 inch
Fasteners (Bolts) (2) 1/2 inch Machine Bolts
*
*
*
