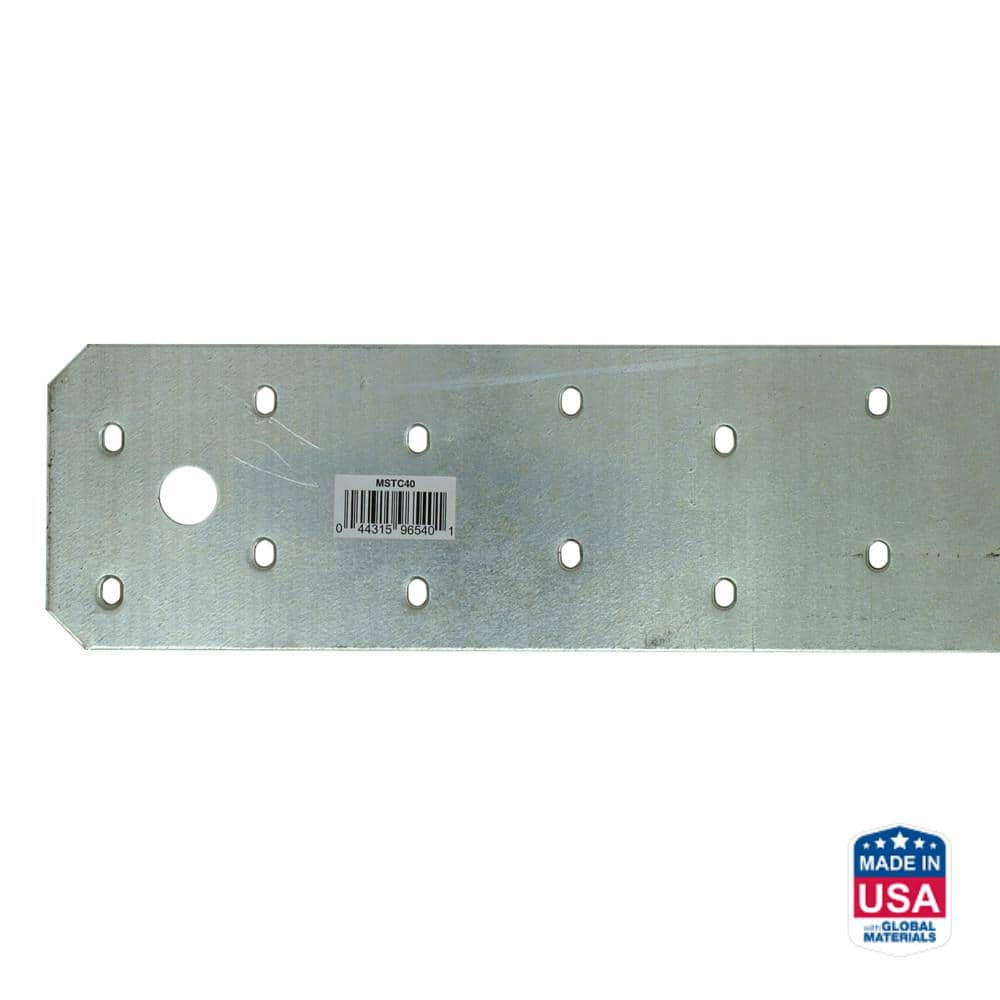

Simpson 40-1/4 Medium Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090816
Mfr. #: MSTC40
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $20.00
i h h

Description

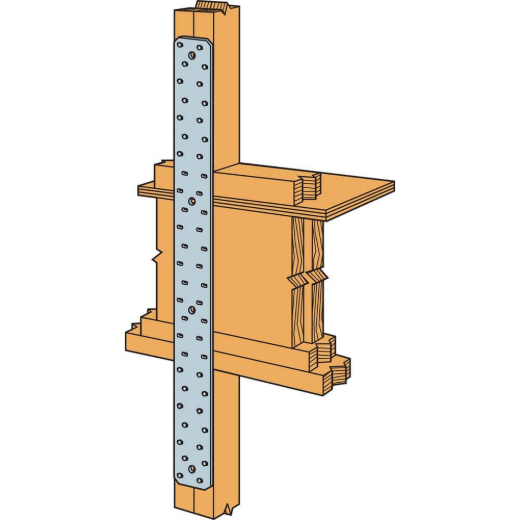

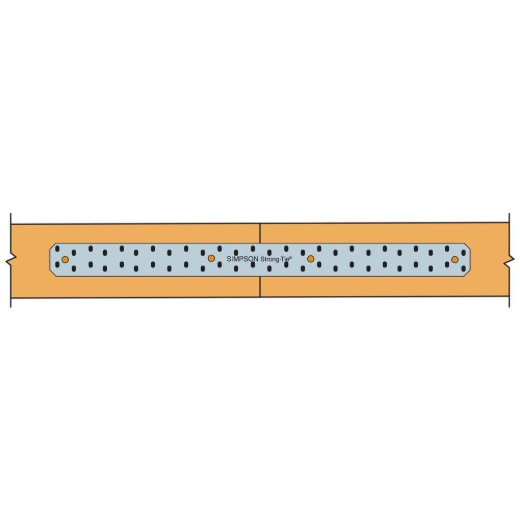

The Simpson Strong-Tie MSTC40 is a high-capacity medium strap tie designed to effectively resist tension loads in various wood-to-wood applications. This 16-gauge connector is ideal for reinforcing joints where top or bottom plates are cut, at wall intersections, and as ridge ties. Its robust G90 galvanized finish ensures long-lasting corrosion resistance for both interior and exterior structural projects.
  • G90 Galvanized Steel
  • 16-Gauge Construction

Features

  • Utilizes a staggered nail pattern to help minimize wood splitting.
  • Features countersunk nail slots for a lower nailing profile.
  • Precut and load-rated for quick installation and optimal performance.

Includes

  • Simpson MSTC40 Medium Strap Tie
Products specifications

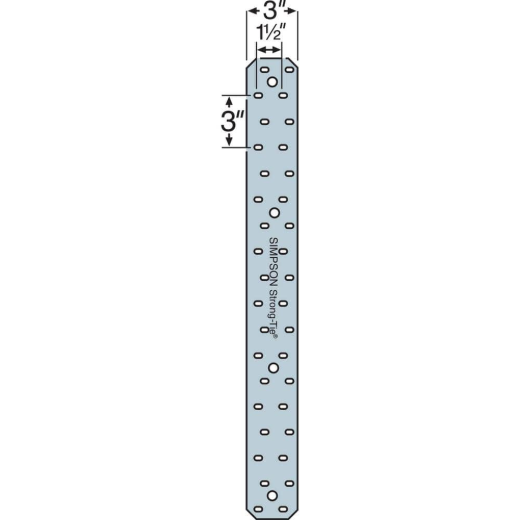

Model No. MSTC40
Length 40-1/4 inch
Width 3 inch
Thickness 16 Gauge
Finish G90 Galvanized
Material Steel
Fasteners Required (52) 0.148 inch x 3-1/4 inch Nails
Installation Type Wood-to-Wood
*
*
*
