Simpson 40-1/4 Medium Strap Tie Wood To Masonry

Mfr.: Simpson Strong-Tie
Item #: I090822
Mfr. #: MSTCM40
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $23.87
i h h

Description

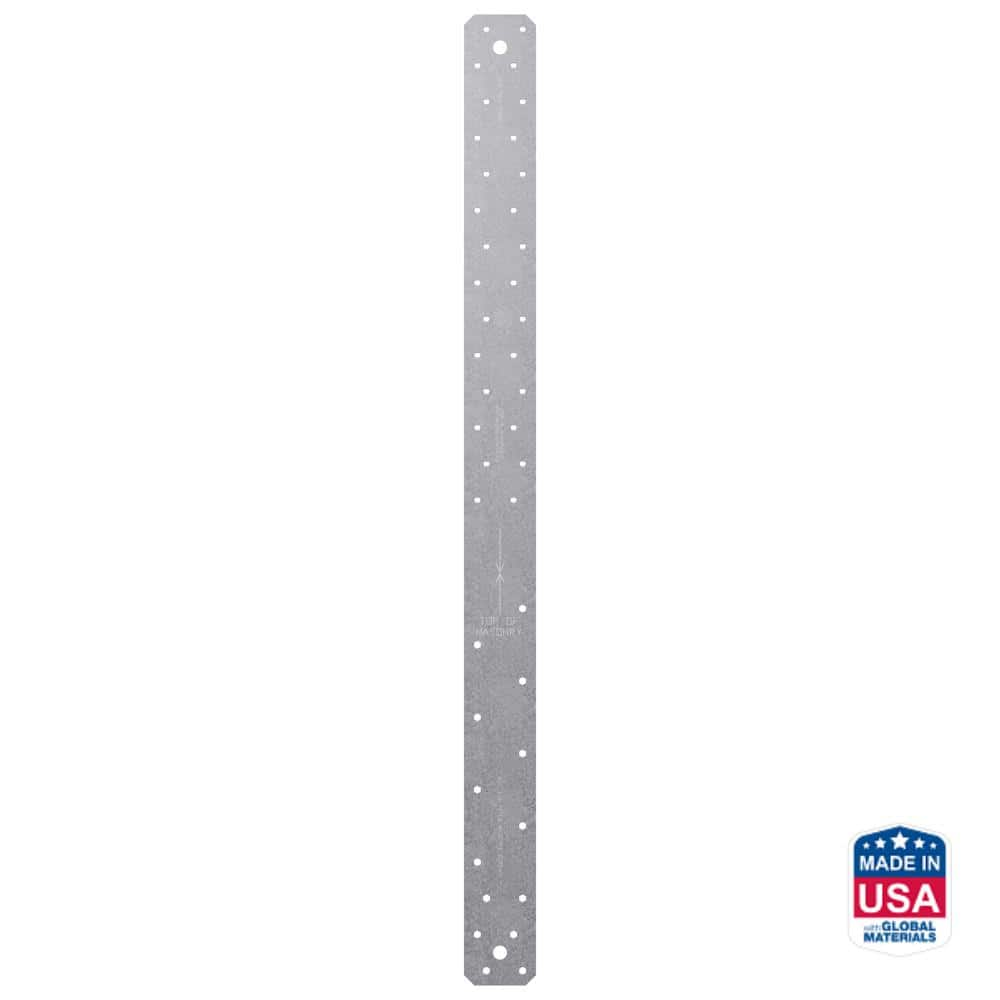

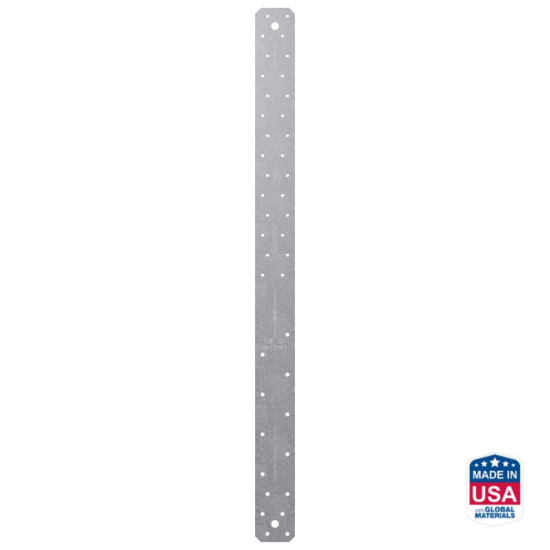

The Simpson Strong-Tie MSTCM40 is a high-capacity medium strap tie specifically engineered for wood-to-masonry applications. Designed to resist tension loads in uplift scenarios, it provides a secure connection between wood framing and concrete or grout-filled masonry units. This precut, load-rated strap is an essential component for projects requiring resistance against wind and seismic forces. Its galvanized finish ensures durability in dry, non-corrosive environments.
  • G90 Galvanized Coating
  • 16-Gauge Steel Construction

Features

  • Features countersunk nail slots for a lower nailing profile and cleaner finish.
  • Utilizes a staggered nail pattern to significantly reduce the risk of wood splitting.

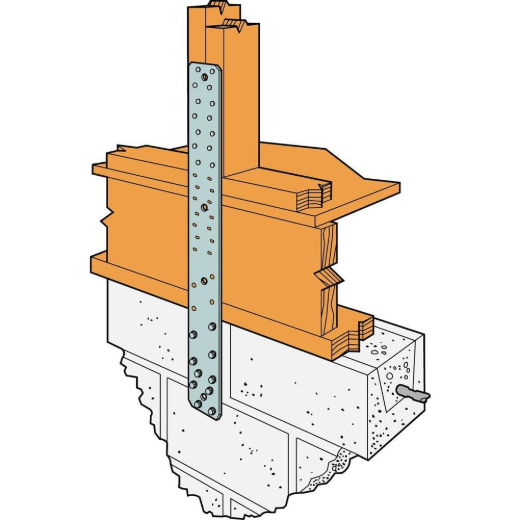

  • Versatile installation for both floor-to-floor clear span and standard wood-to-CMU framing.
  • Designed to meet rigorous building codes for seismic and wind load resistance.

Includes

  • (1) MSTCM40 Medium Masonry Strap Tie
Products specifications
Model No. MSTCM40

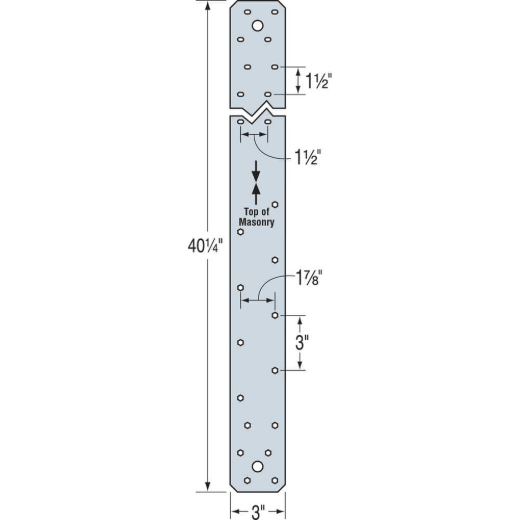

Length 40-1/4 inch
Width 3 inch
Material 16-Gauge Steel
Finish G90 Galvanized
Application Wood-to-Masonry
Weight 2.1 lbs
Fasteners Required Nails and Titen Screws
*
*
*
