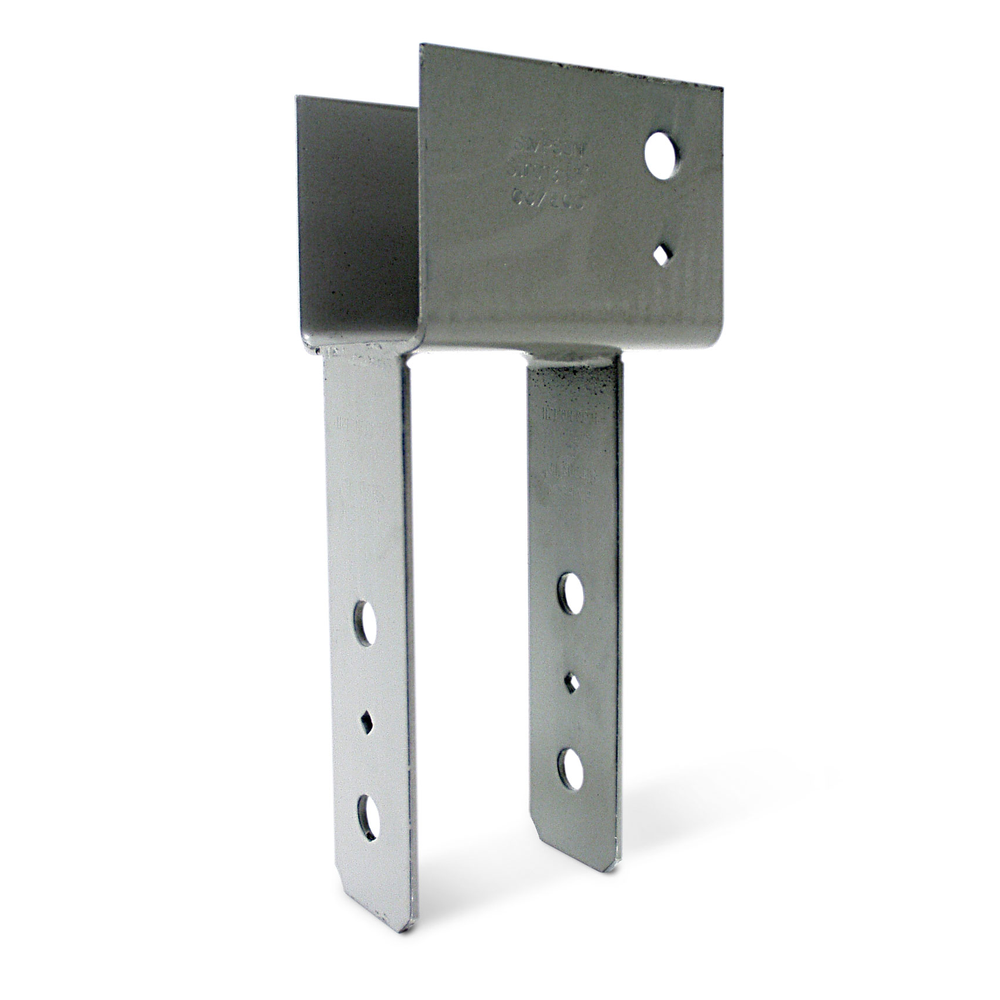

Simpson ECC End Column Cap for 4x Beam, 4x Post

Mfr.: Simpson Strong-Tie
Item #: I092708
Mfr. #: ECC44
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $124.28
i h h

Description

The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
  • Certified welds for confidence in strength and loading
  • Uplift loads increased for earthquake or wind loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening

Features

  • Certified welds for confidence in strength and loading
  • Uplift loads increased for earthquake or wind loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening
  • Nominal beam width: 4x
  • Nominal post size: 4x

Specifications


Nominal beam width4xNominal post size4x
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-2604
Connector Type Column Cap
Country of Origin Varies (subject to change)
Finish / Coating Galvanized (G90)
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x
Series ECC End
*
*
*
