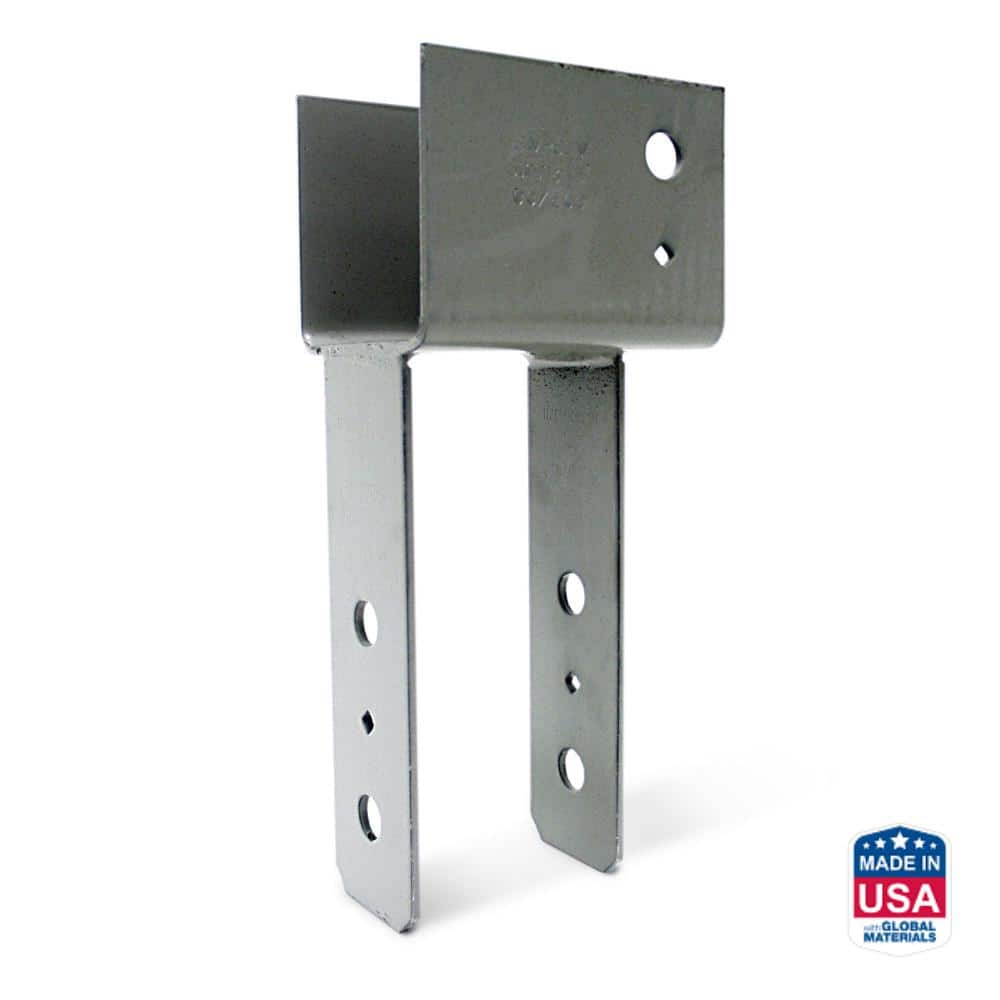

Simpson 4X Beam, 4X Post HDG End Column Cap

Mfr.: Simpson Strong-Tie
Item #: I092709
Mfr. #: ECC44HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $144.87
i h h

Description

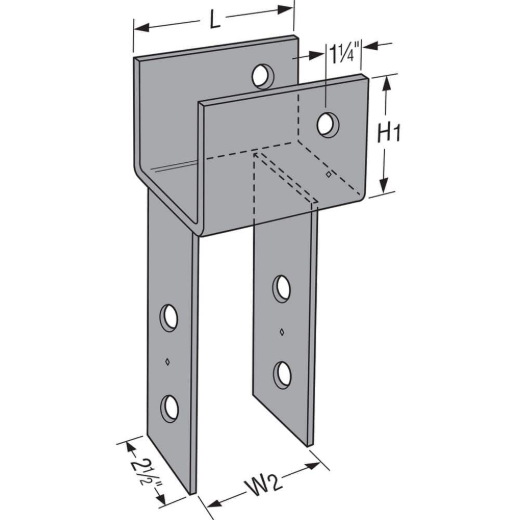

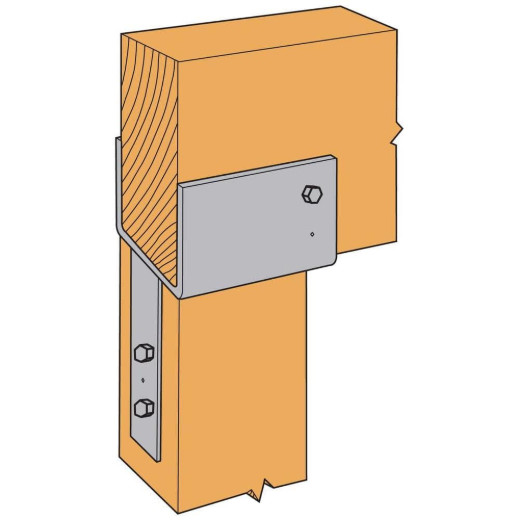

The Simpson Strong-Tie ECC44HDG End Column Cap is engineered to provide robust and stable column-to-beam connections in wood construction, specifically for end-of-beam applications. Its design features an extended seat area that offers increased bearing surface, effectively distributing loads from the beam and enhancing the overall support of the connection. This ensures greater structural integrity and reduces stress points within the assembly, making it ideal for projects requiring enhanced load distribution and durability. The cap is constructed from durable steel and finished with a hot-dip galvanized coating for long-lasting corrosion resistance.
  • Provides strong column-to-beam connections
  • Enhanced load distribution through extended seat area
  • Hot-dip galvanized finish for corrosion resistance

Features

  • Certified welds for strength and reliable loading.
  • Increased uplift loads suitable for earthquake or wind loading conditions.
  • Diamond holes facilitate temporary fastening during installation.
  • Bolt spacing is designed to meet NDS code requirements for optimal performance.

Includes

  • Fasteners required: Beam - (1) 5/8 inch Machine Bolt, Post - (2) 5/8 inch Machine Bolts.
Products specifications
Model No. ECC44HDG
Description 4X Beam, 4X Post HDG End Column Cap
Material 7 gauge steel
Finish Hot Dip Galvanized
Beam size 4x
Post size 4x
For Treated Lumber Yes
*
*
*
