Simpson 4X Beam, 6X Post Hdg Column Cap

Mfr.: Simpson Strong-Tie
Item #: I092230
Mfr. #: CC46HDG
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $235.82
i h h

Description

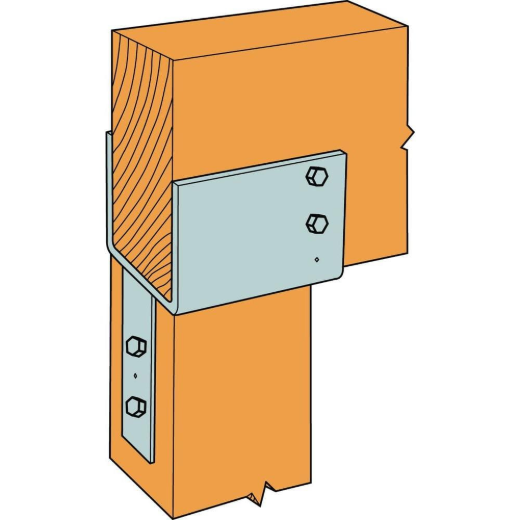

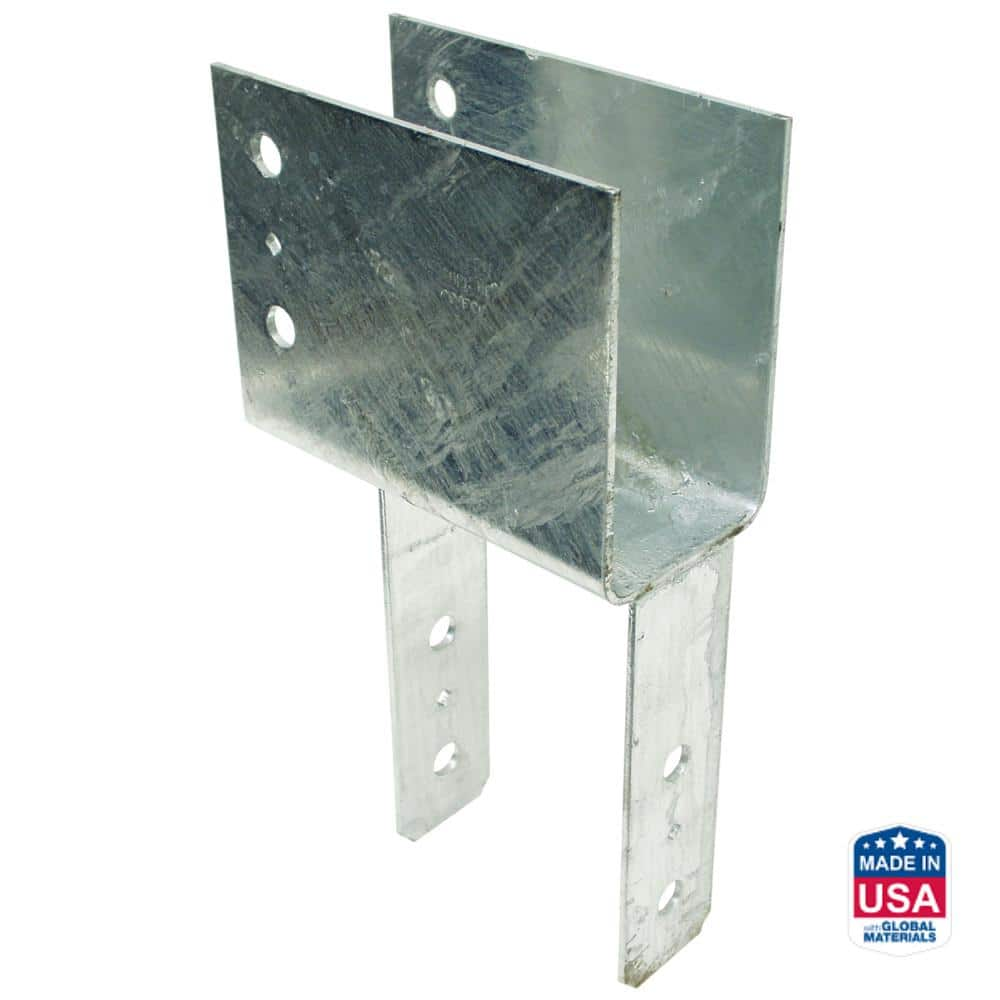

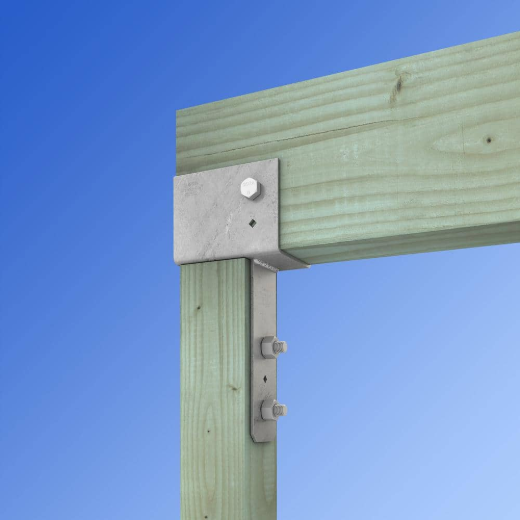

Engineered for robust wood construction, the Simpson Strong-Tie CC46HDG column cap provides strong and reliable connections between beams and posts. Its innovative seat design extends bearing surface area beyond the column, enhancing stability and distributing loads effectively. The hot-dip galvanized finish ensures superior corrosion resistance, making it ideal for exterior applications and treated lumber. Certified welds provide confidence in its strength and loading capabilities, while increased uplift loads offer resilience against wind and seismic activity. This column cap is designed to meet NDS code requirements for optimal performance.
  • Hot-Dip Galvanized finish for corrosion resistance
  • Strong column-beam connections

Features

  • Certified welds for confidence in strength and loading.
  • Uplift loads increased for earthquake or wind loading.
  • Bolt spacing meets NDS code requirements.
  • Diamond holes for temporary fastening.
  • Made from 7-gauge steel.

Includes

  • (6) 5/8-in diameter HDG bolts required for installation (not included).
Products specifications
Model No. CC46HDG
Beam Width 3 1/2 inch
Post Size 4x6
Dimensions (W1) 3 5/8 inch
Dimensions (W2) 5 1/2 inch
Dimensions (L) 11 inch
Dimensions (H1) 6 1/2 inch
Bolt Size 5/8 inch
Material 7-gauge steel
Finish Hot Dip Galvanized
*
*
*
