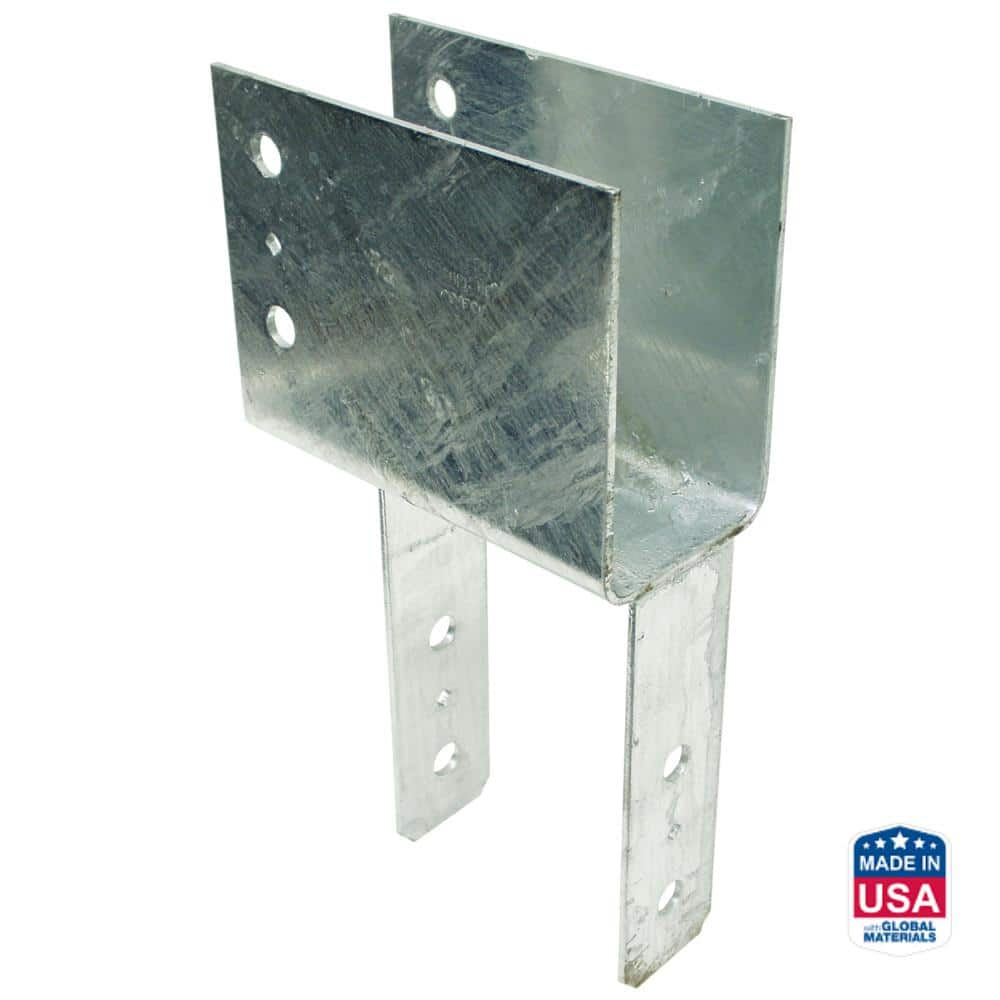

Simpson ECC - End Column Cap for 4x Beam, 6x Post HDG

Mfr.: Simpson Strong-Tie
Item #: I092714
Mfr. #: ECC46HDG
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $235.82
i h h

Description

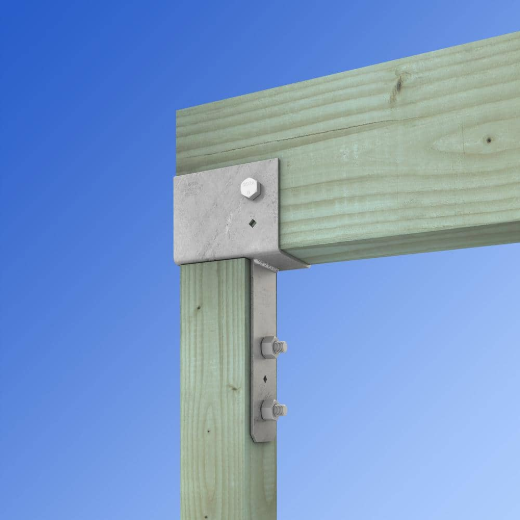

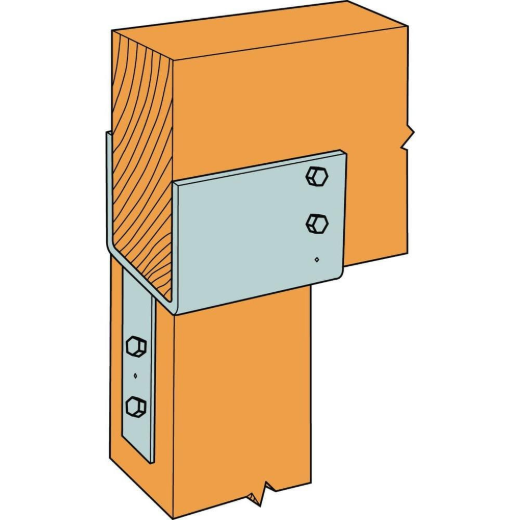

The Simpson Strong-Tie ECC46HDG is a robust hot-dip galvanized end column cap engineered for wood construction, providing secure column-to-beam connections. It is specifically designed for 4x beams and 6x posts, ensuring a strong and stable structural integrity. The unique seat design offers extended bearing surface area, effectively distributing loads and enhancing the overall support of the connection. This cap is ideal for end-of-beam applications where superior load transfer and durability are paramount.
  • Hot-Dip Galvanized (HDG) Finish
  • For 4x Beam and 6x Post applications

Features

  • Certified welds ensure confidence in strength and loading capacity.
  • Increased uplift loads accommodate seismic or high-wind conditions.
  • Bolt spacing meets NDS code requirements for optimal performance.
  • Diamond-shaped holes allow for temporary fastening during installation.
  • Made from durable 7-gauge steel for long-lasting structural support.

Includes

  • 1 x Simpson Strong-Tie ECC46HDG Hot-Dip Galvanized End Column Cap
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-2604
Connector Type Column Cap
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x
Series ECC End
*
*
*
