Simpson 4X Post Base

Mfr.: Simpson Strong-Tie
Item #: I090905
Mfr. #: BC40
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $6.80
i h h

Description

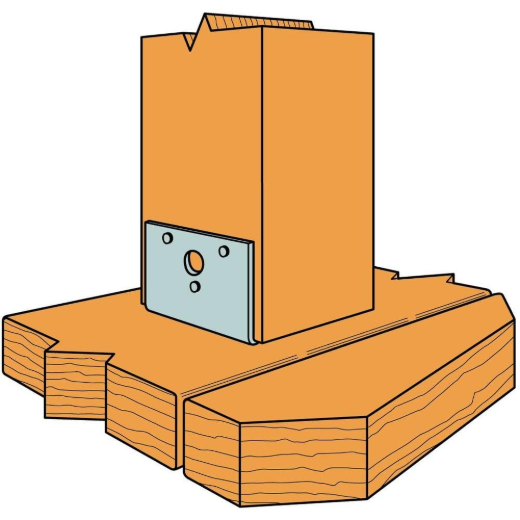

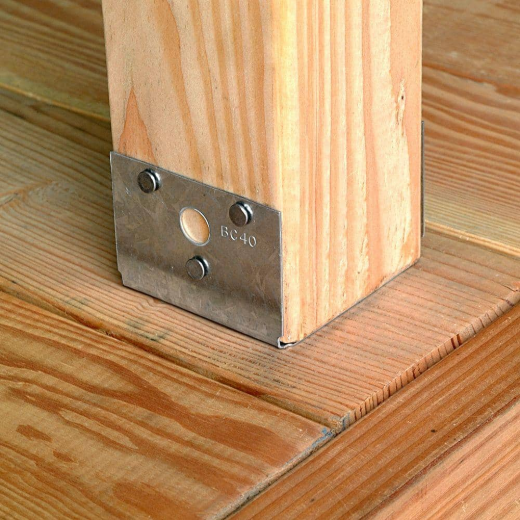

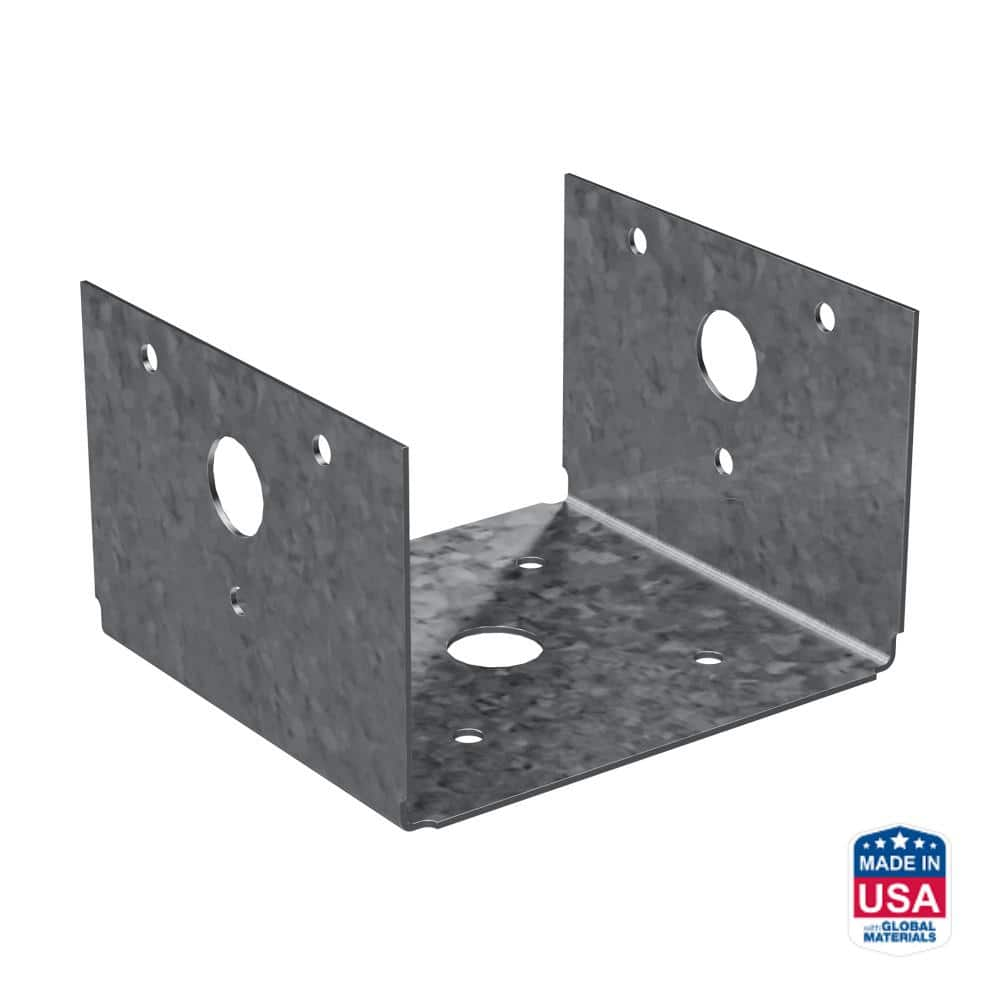

The Simpson Strong-Tie BC40 is a versatile, dual-purpose connector designed for light-duty post-to-beam or post-to-base connections. This 18-gauge steel base enhances the structural integrity of your projects by providing secure uplift and lateral resistance. It is an ideal solution for residential construction where a simple, reliable connection is required for 4x lumber.
  • G90 Galvanized Finish
  • 18-Gauge Steel Construction

Features

  • Dual-purpose design works as a post cap or base.
  • Opposing nail pattern helps reduce wood splitting.
  • Compatible with common or pneumatic nail sizes.
  • Provides essential uplift and lateral resistance.

Includes

  • Simpson BC40 Post Base/Cap
Products specifications
Model Number BC40
Post Size 4x
Material 18-Gauge Steel
Finish G90 Galvanized
Width 3-9/16 inch
Length 3-1/4 inch
Height 2-1/4 inch
Fasteners Required 0.162 x 3-1/2 inch Nails
*
*
*
