Simpson 4X Post Base Zmax

Mfr.: Simpson Strong-Tie
Item #: I090907
Mfr. #: BC40Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6.80
i h h

Description

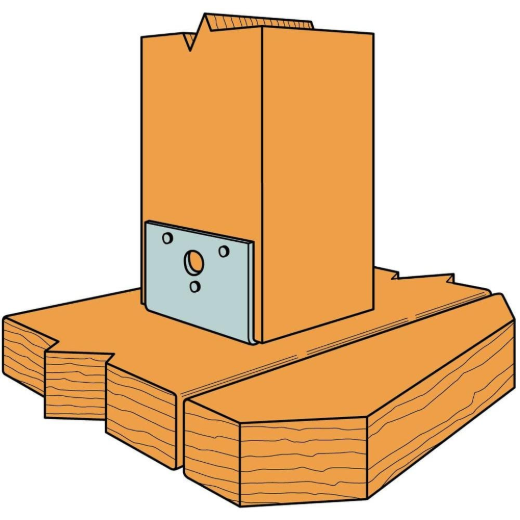

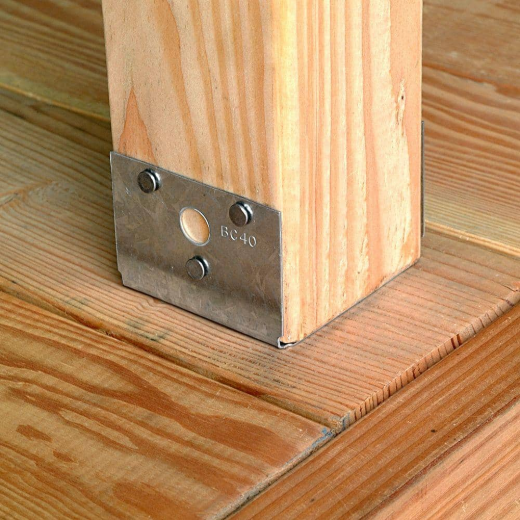

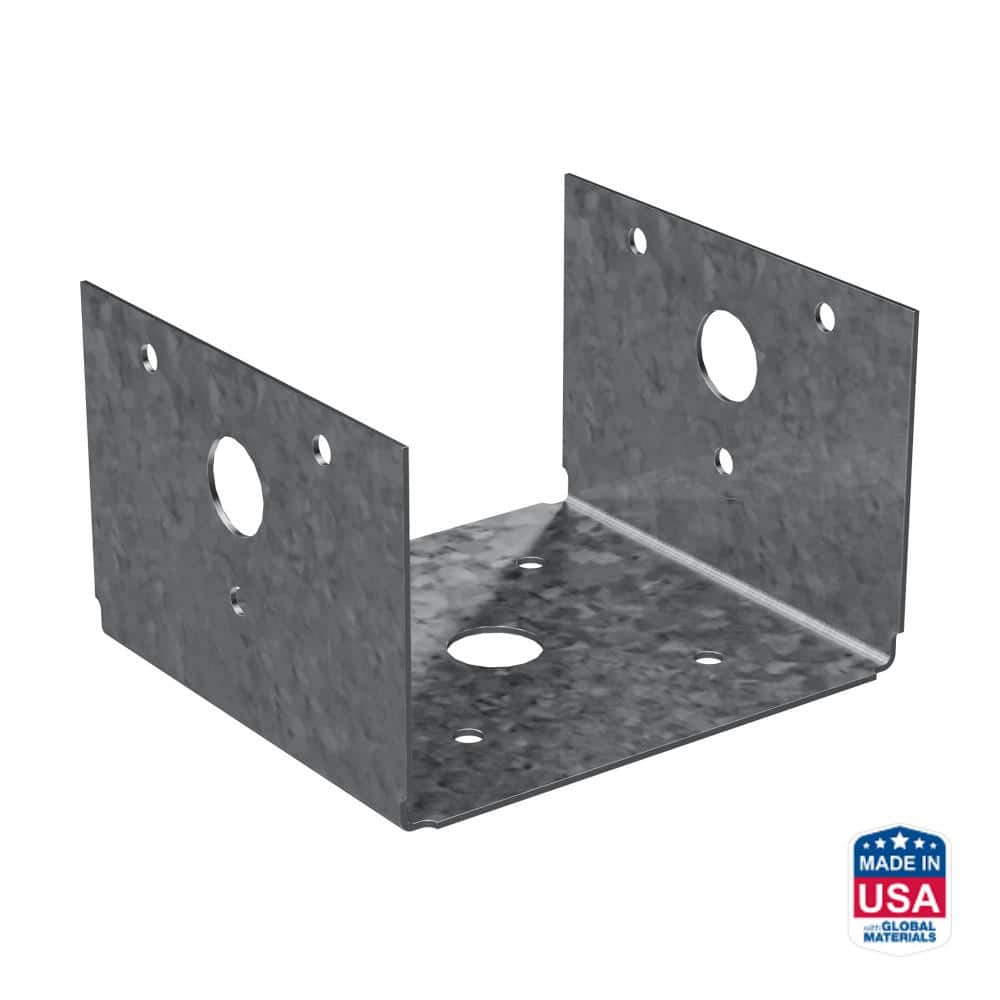

The Simpson Strong-Tie BC40Z is a light-gauge post base designed to connect a post to a wood supporting member. Constructed from durable 18-gauge steel, it provides essential uplift and lateral resistance for light-duty construction projects. This model features a ZMAX finish, offering enhanced corrosion resistance suitable for exterior and preservative-treated wood applications.
  • ZMAX Galvanized Coating
  • 18-Gauge Steel Construction

Features

  • Opposing nail pattern designed to reduce the risk of wood splitting during installation.
  • Attains full allowable load using either common nails or pneumatic nail sizes for versatility.
  • Provides a positive connection that is stronger than angled nailing or screw fastening.
  • Designed for light-duty applications including decks and patio covers.

Includes

  • (1) BC40Z 4x Post Base
Products specifications
Material 18-Gauge Steel
Finish ZMAX Galvanized
Post Size 4x4
Height 2-1/4 inch
Length 3-1/4 inch
Width 3-9/16 inch
Uplift Load 510 lb
Lateral Load 735 lb
Post Fasteners (6) 0.162 x 3-1/2 inch Nails
Base Fasteners (4) 0.162 x 3-1/2 inch Nails
*
*
*
