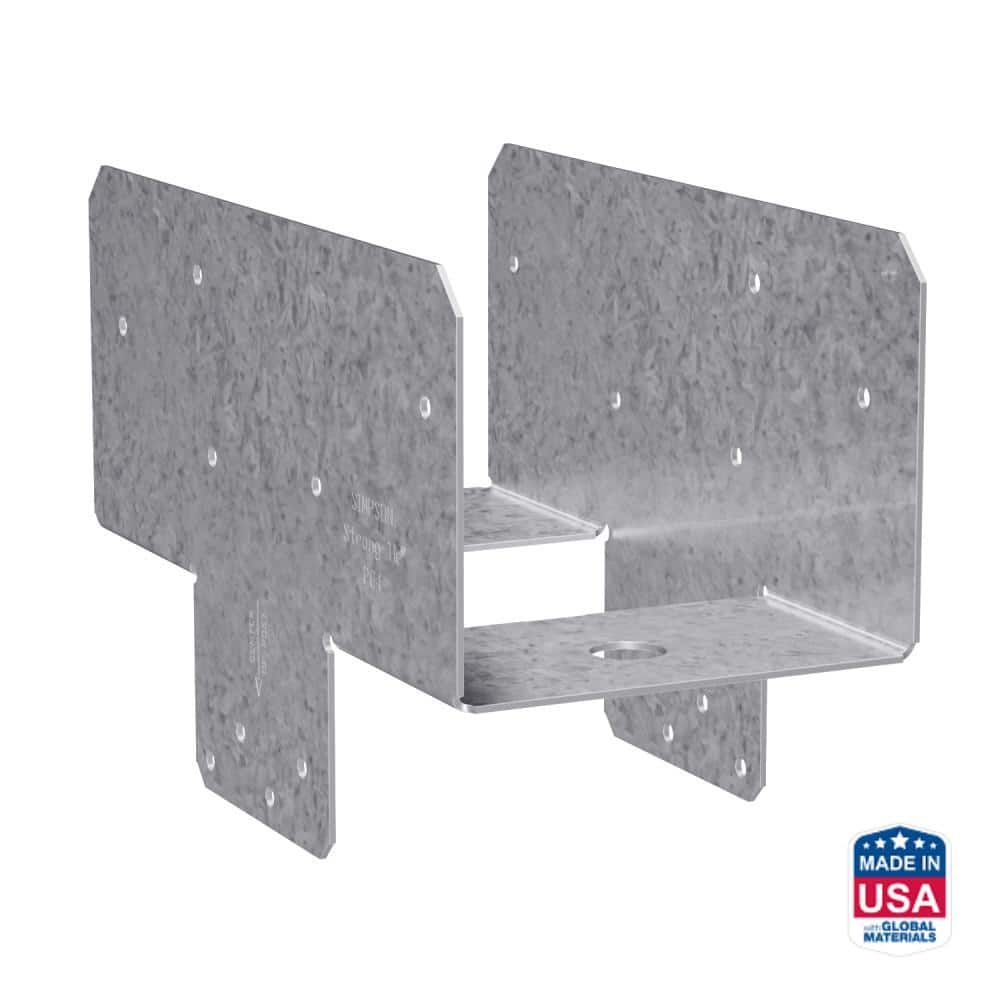

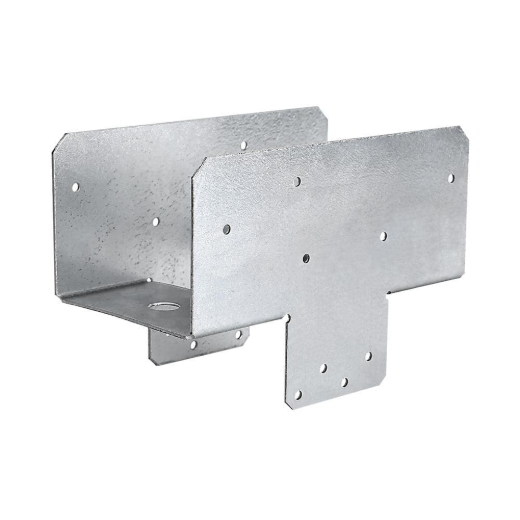

Simpson 4X Post Cap 16Ga Zmax

Item #: I092861
Mfr. #: PC4Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $35.68
i h h

Description

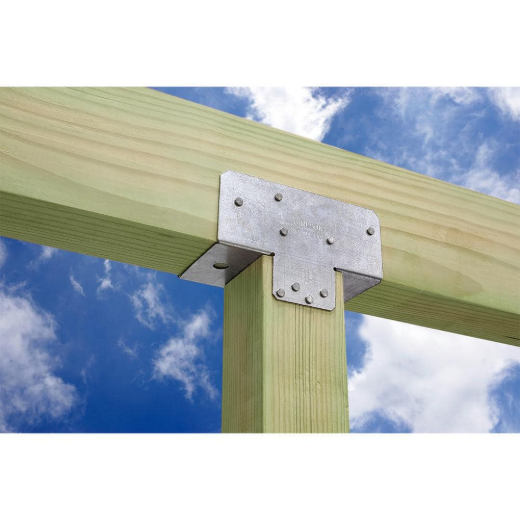

The Simpson Strong-Tie PC4Z post cap is engineered for efficient and straightforward post-to-beam connections. Its design features in-line post and beam flanges, allowing a single model to accommodate various post sizes, simplifying project planning and execution. The ZMAX galvanized finish provides reliable corrosion resistance, making it suitable for diverse environmental conditions. This post cap ensures a secure connection, reducing installation time and effort. Ideal for deck framing, pergolas, and other structural applications, it offers a dependable solution for both new construction and retrofitting projects.
  • ZMAX Galvanized Finish
  • 16-Gauge Steel Construction

Features

  • In-line flanges accommodate multiple post sizes.
  • Designed for fast and easy installation.
  • Suitable for 4x nominal lumber posts.
  • Compatible with 10d (0.148 inch x 3 inch) common nails or Strong-Drive SD Connector screws.

Includes

  • 1 x Simpson Strong-Tie PC4Z Post Cap
Products specifications
material 16 gauge steel
finish ZMAX
seat width 3-9/16 inch
nominal post size 4x
length 3-1/2 inch
thickness 16 Gauge
*
*
*
