  • Simpson 4X10 Heavy Left-Skewed Joist Hanger

Simpson 4X10 Heavy Left-Skewed Joist Hanger

Mfr.: Simpson Strong-Tie
Item #: I091372
Mfr. #: HSUL410
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $67.02
i h h

Description

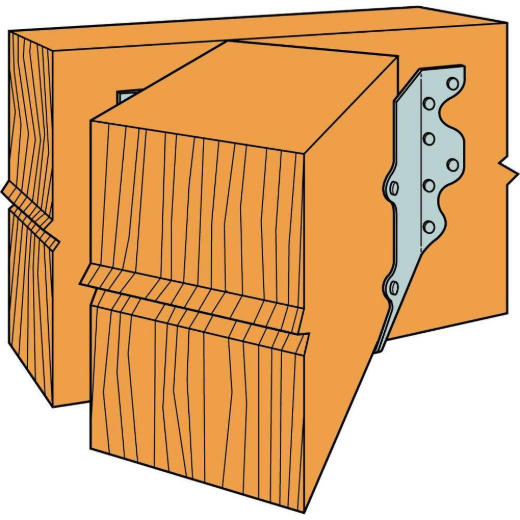

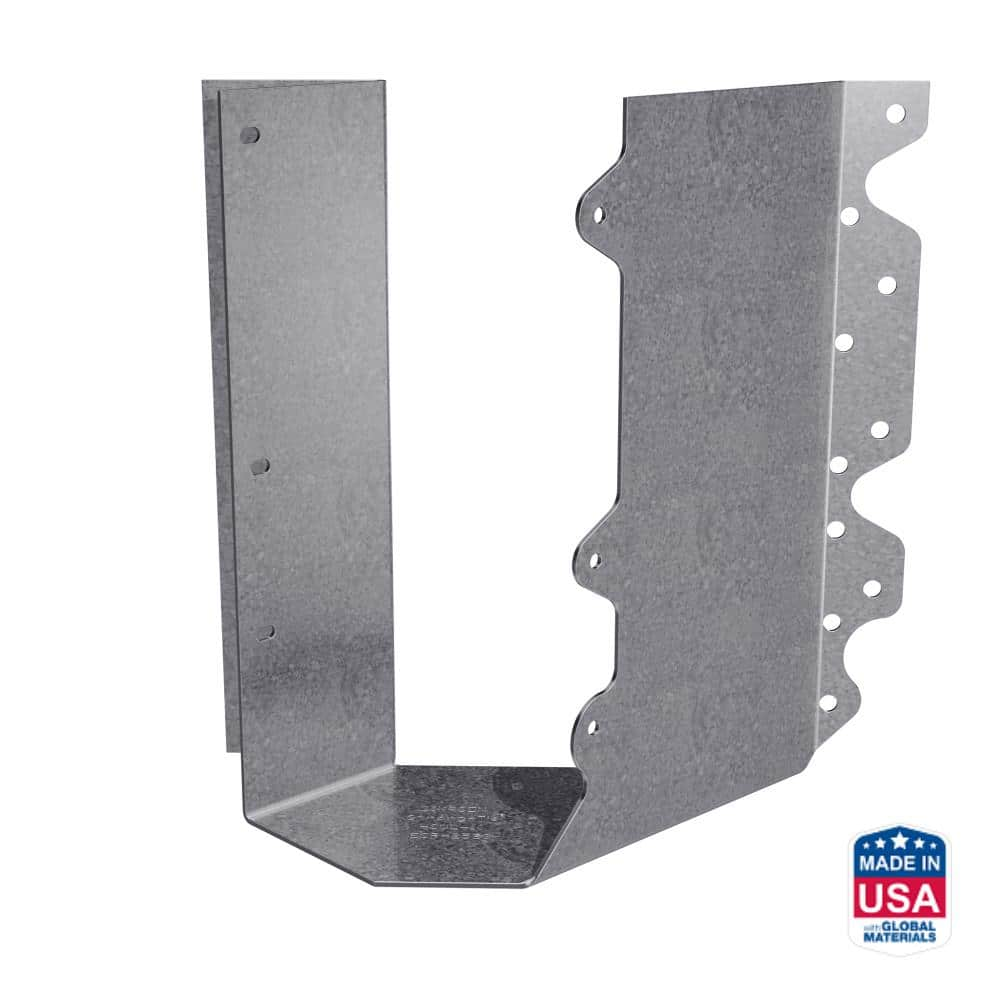

The Simpson Strong-Tie HSUL410 is a heavy-duty, U-shaped joist hanger specifically designed for 45-degree left-skewed connections in wood construction. This hanger is engineered to support large joist members and double I-joists, providing superior structural strength for high-load applications. Its unique design encapsulates the top flange of the joist, eliminating the need for web stiffeners in standard installations while ensuring a code-compliant connection.
  • G90 Galvanized Finish
  • 45-Degree Left Skew
  • 14-Gauge Steel Construction

Features

  • Features obround nail holes on the acute side for easy installation parallel to the joist.
  • Positive-angle nailing prevents wood splitting and increases installation speed for engineered wood.
  • Versatile design accommodates actual joist skews from 40 to 50 degrees.

Includes

  • (1) HSUL410 Skewed Joist Hanger
Products specifications
Model No. HSUL410
Material 14-Gauge Carbon Steel
Finish G90 Galvanized
Joist Size 4x10
Skew Direction Left
Skew Angle 45 Degrees
Width 3-9/16 In.
Height 8-1/2 In.
Base Dimension 2-7/16 In.
Face Fasteners (20) 0.162 inch x 3-1/2 inch Nails
Joist Fasteners (6) 0.162 inch x 3-1/2 inch Nails
*
*
*
