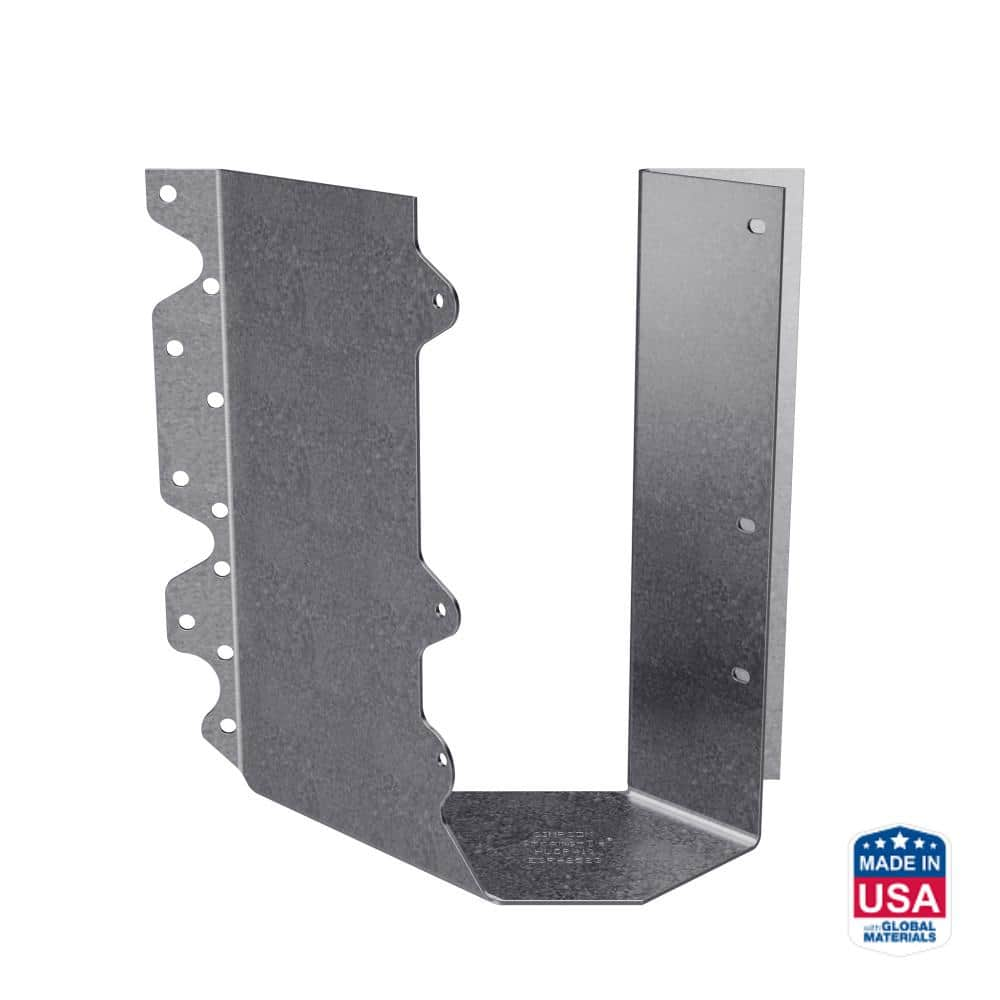

Simpson 4X10 Joist Hanger Skew Right

Mfr.: Simpson Strong-Tie
Item #: I091403
Mfr. #: HSUR410
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $67.02
i h h

Description

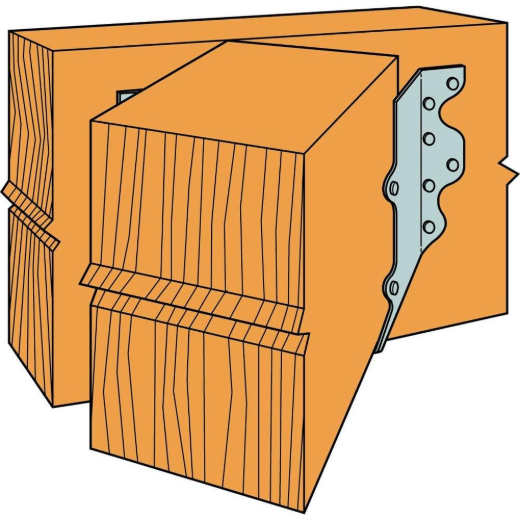

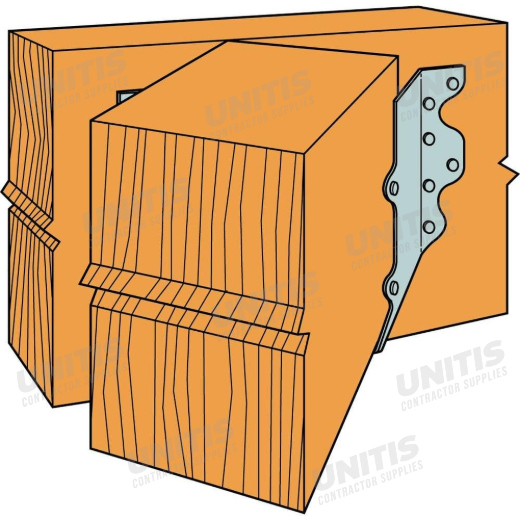

The Simpson Strong-Tie HSUR410 is a heavy-duty, 45-degree right-skewed joist hanger designed to support large lumber members or double I-joists in wood construction. Its robust U-shaped design encapsulates the top flange of the joist, providing superior stability and ensuring that no web stiffeners are required for standard installations. This hanger is ideal for angled wood-to-wood connections in decks, floors, and roof framing, delivering high load-bearing capacity and a secure fit. The G90 galvanized finish offers essential corrosion resistance for long-term structural reliability.
  • G90 Galvanized Finish
  • 45-Degree Right Skew
  • 14-Gauge Carbon Steel

Features

  • Features obround nail holes on the acute side for easier installation parallel to the joist.
  • Positive-angle nailing helps prevent wood splitting and speeds up the installation process.
  • Accommodates a range of skew angles from 40 to 50 degrees for versatile framing.

Includes

  • (1) HSUR410 Skewed Right Joist Hanger
Products specifications
Material Carbon Steel
Thickness 14 Gauge
Finish G90 Galvanized
Width (W) 3-9/16 inch
Height (H) 8-1/2 inch
Base (B) 2-7/16 inch
Joist Size 4 x 10
Skew Direction Right
Skew Angle 45 Degrees
Face Fasteners (20) 0.162 x 3-1/2 Nails
Joist Fasteners (6) 0.162 x 3-1/2 Nails
*
*
*
