Simpson 4X4 Adjustable Post Base Z-Max

Mfr.: Simpson Strong-Tie
Item #: I090892
Mfr. #: ABU44Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $26.94
i h h

Description

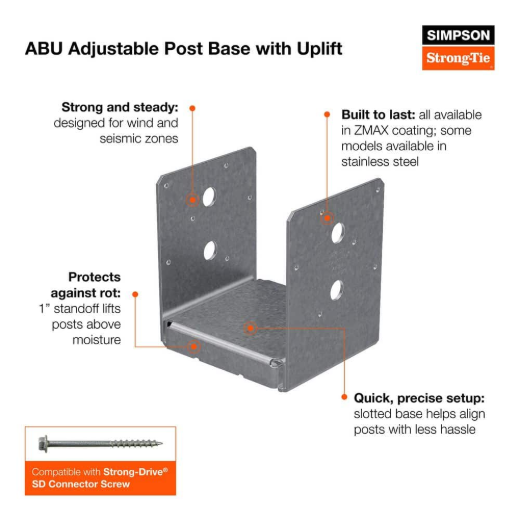

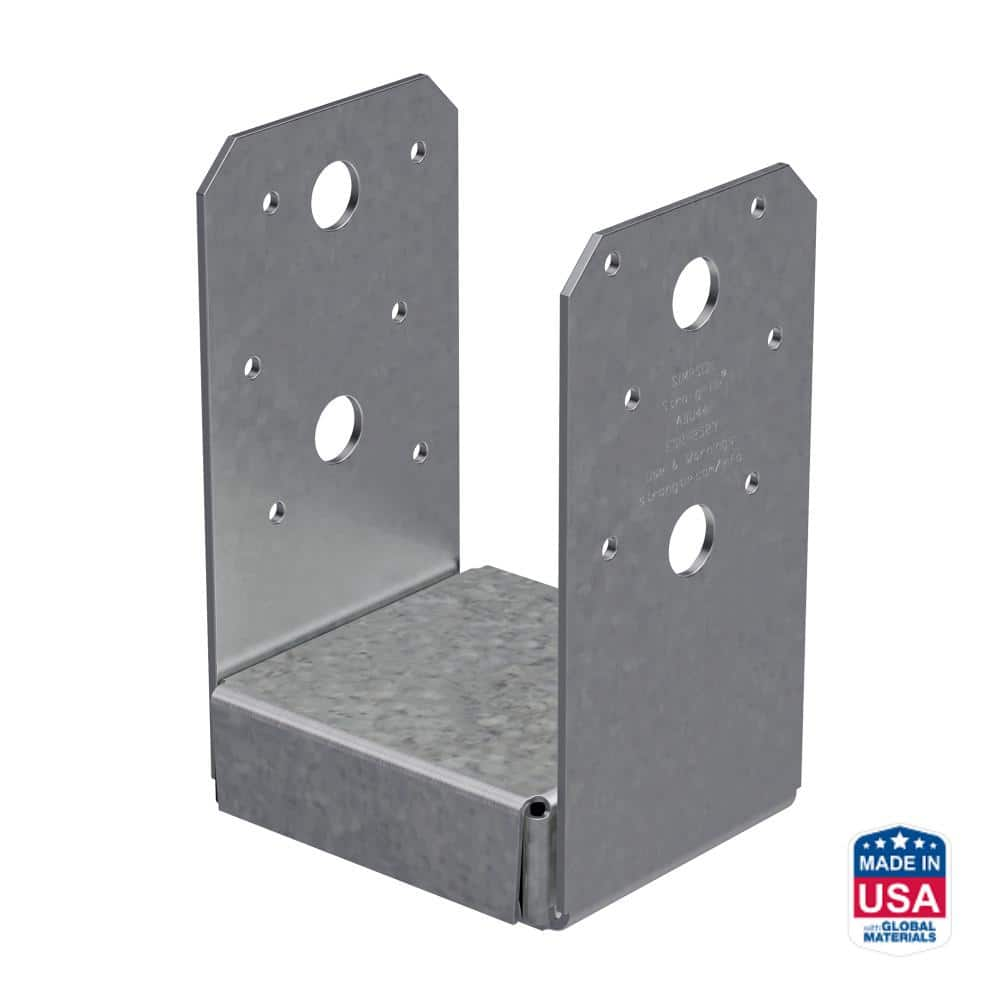

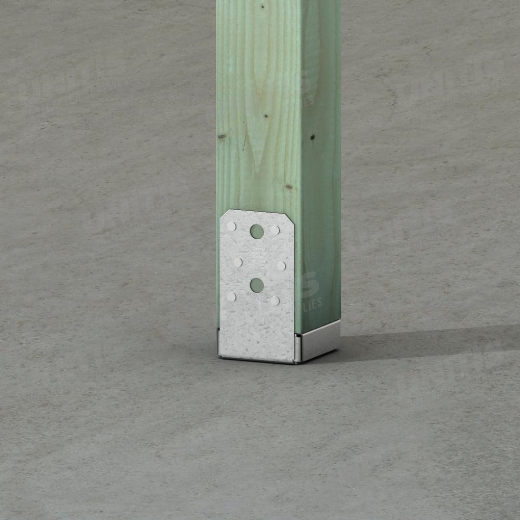

The Simpson Strong-Tie ABU44Z is a high-capacity adjustable post base designed to secure 4x4 wooden posts to existing concrete foundations. This versatile connector features a built-in 1-inch standoff to prevent post-end rot and meet building code requirements for moisture protection. Engineered for both new construction and retrofit projects, it provides exceptional uplift resistance for decks, porches, and other structural applications.

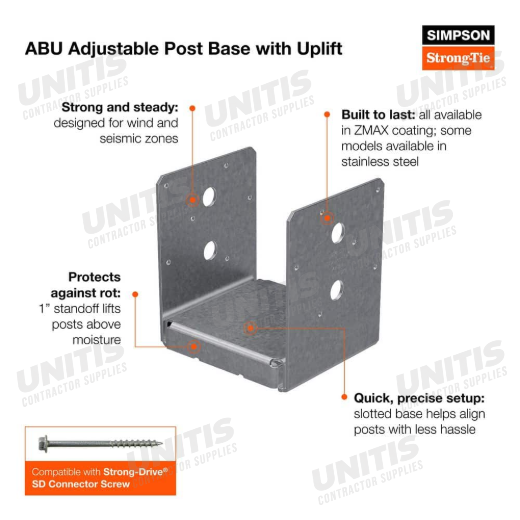

  • ZMAX Galvanized Finish
  • 1-inch Elevated Standoff

Features

  • Slotted base allows for lateral adjustment to ensure precise post alignment during installation.
  • Heavy-duty 12-gauge steel strap construction provides superior structural strength.
  • ZMAX coating offers enhanced corrosion resistance for outdoor and pressure-treated lumber use.

Includes

  • (1) ABU44Z Adjustable Post Base

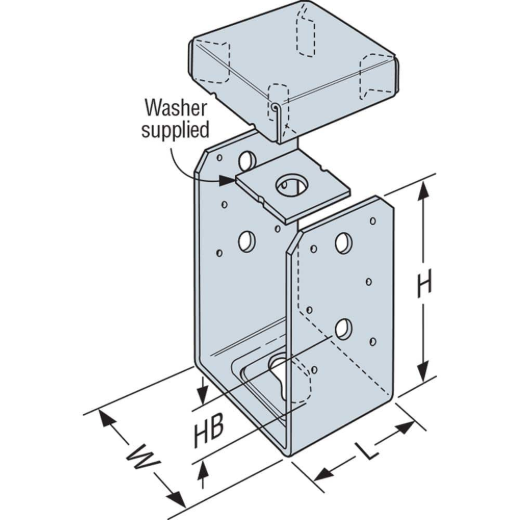

Products specifications
Brand Simpson Strong-Tie
Model ABU44Z
Post Size 4x4 (Nominal)
Material 12-Gauge Steel (Strap)
Finish ZMAX Galvanized
Standoff Height 1 in
Base Width 3-9/16 in
Base Length 3 in

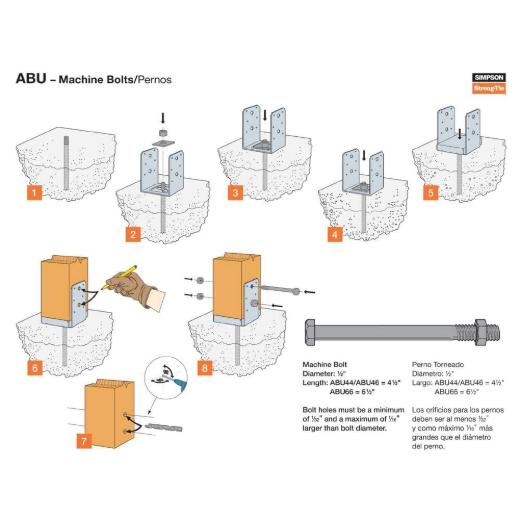

Anchor Bolt Size 5/8 in

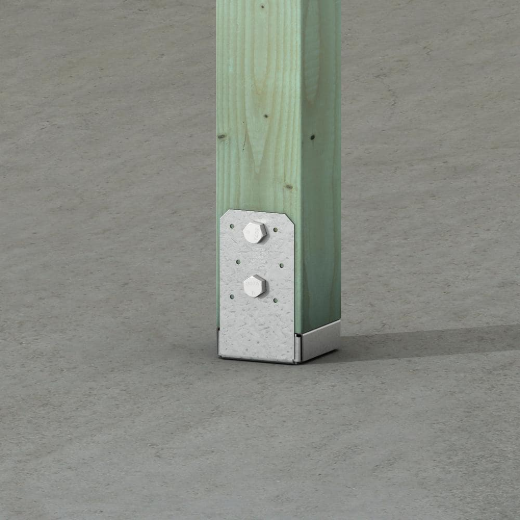

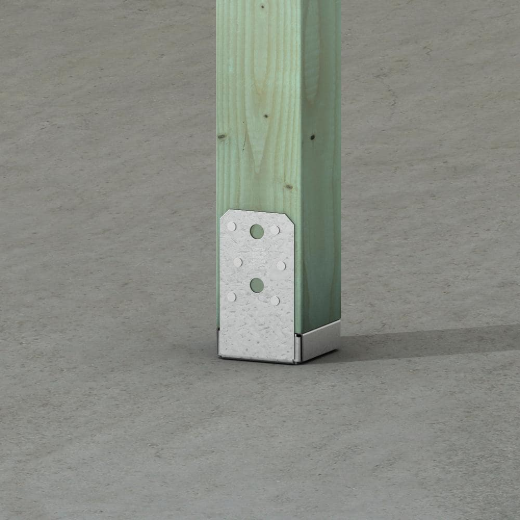

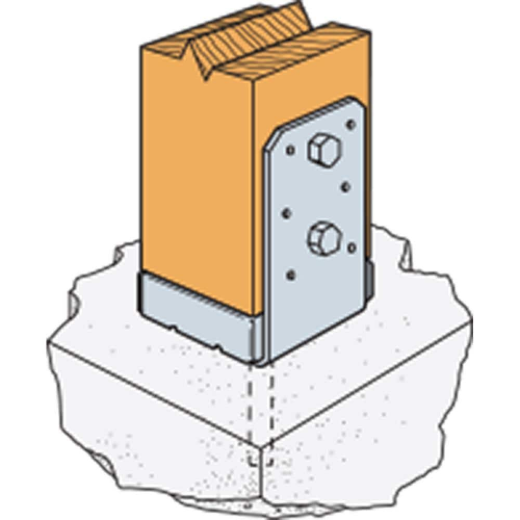

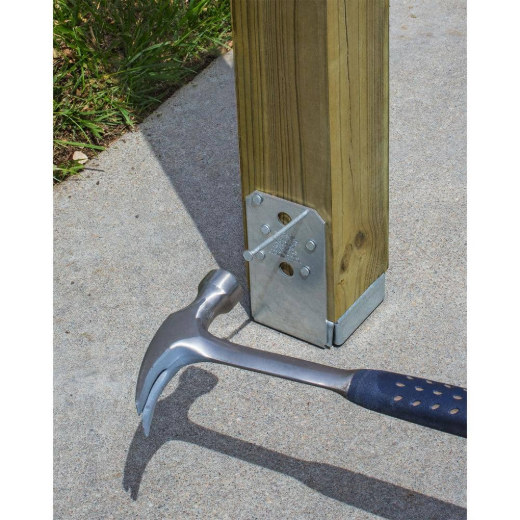

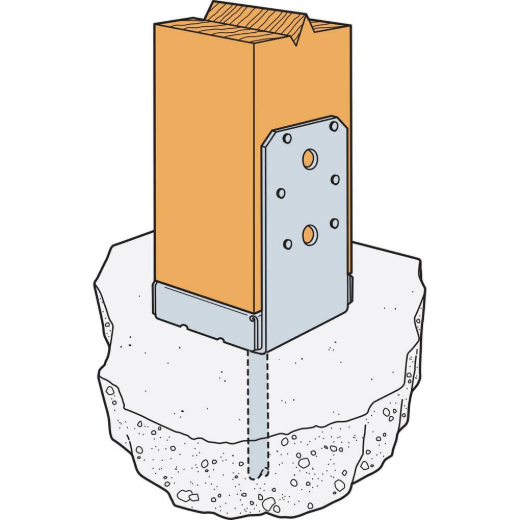

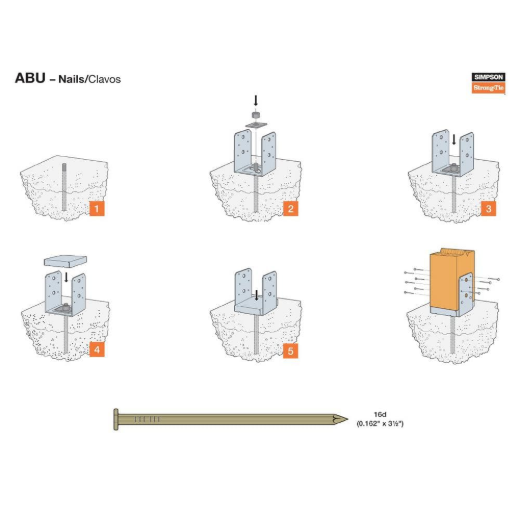

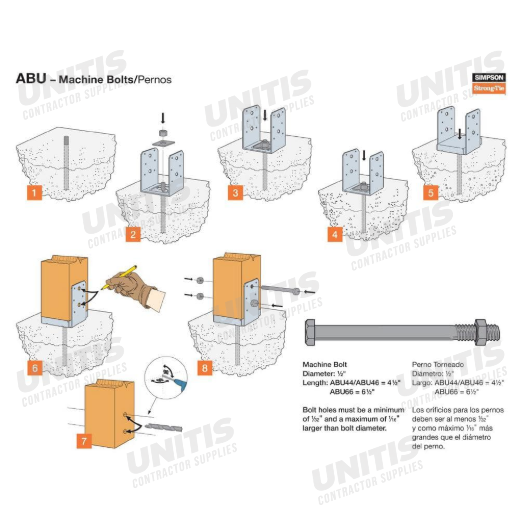

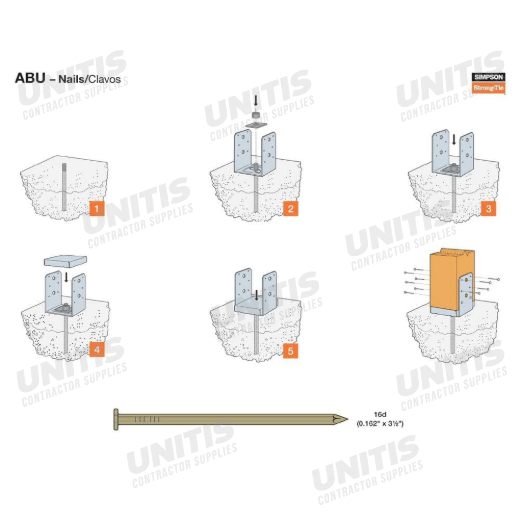

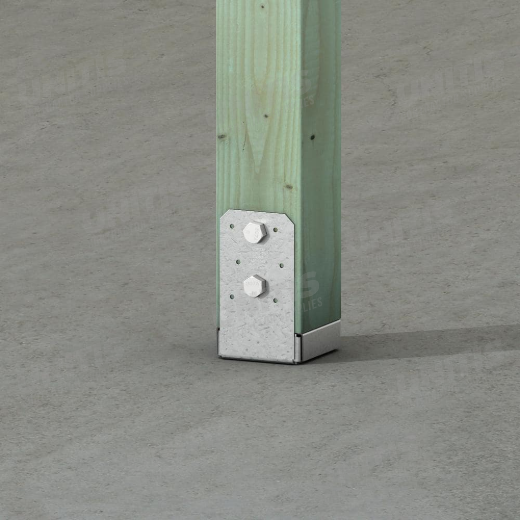

Fastener Options Nails, Bolts, or SD Screws
*
*
*
