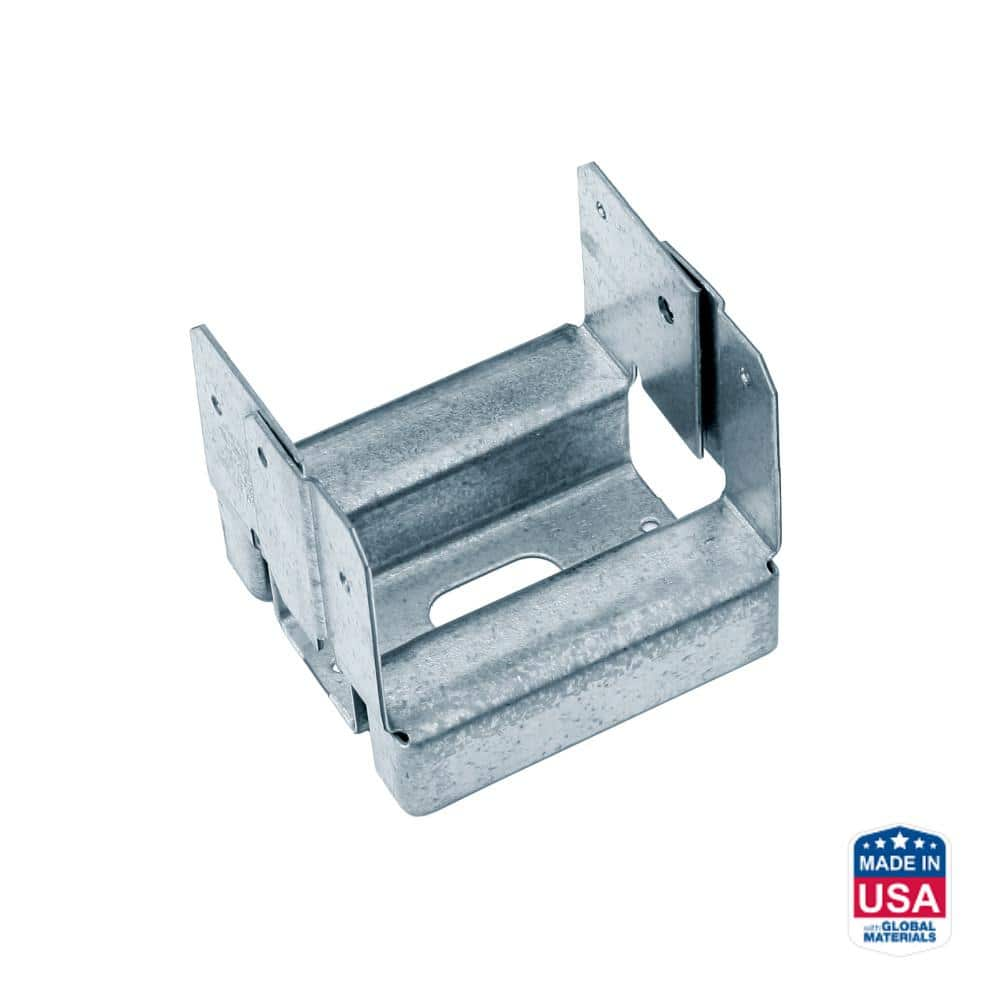

Simpson 4x4 Adjustable Post Base Zmax

Mfr.: Simpson Strong-Tie
Item #: I090882
Mfr. #: ABA44Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $11.00
i h h

Description

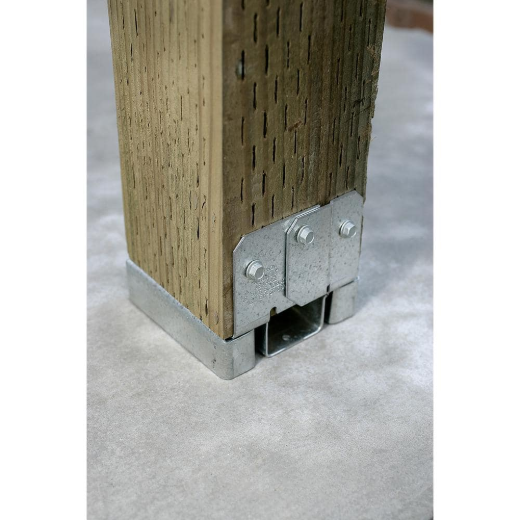

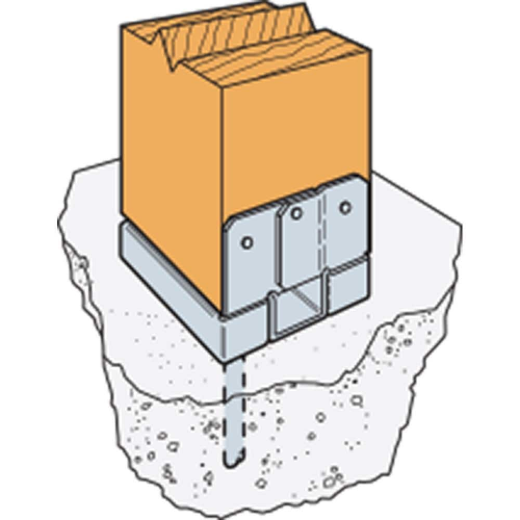

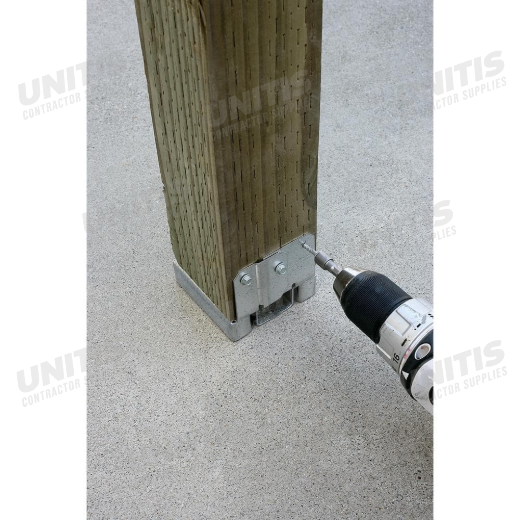

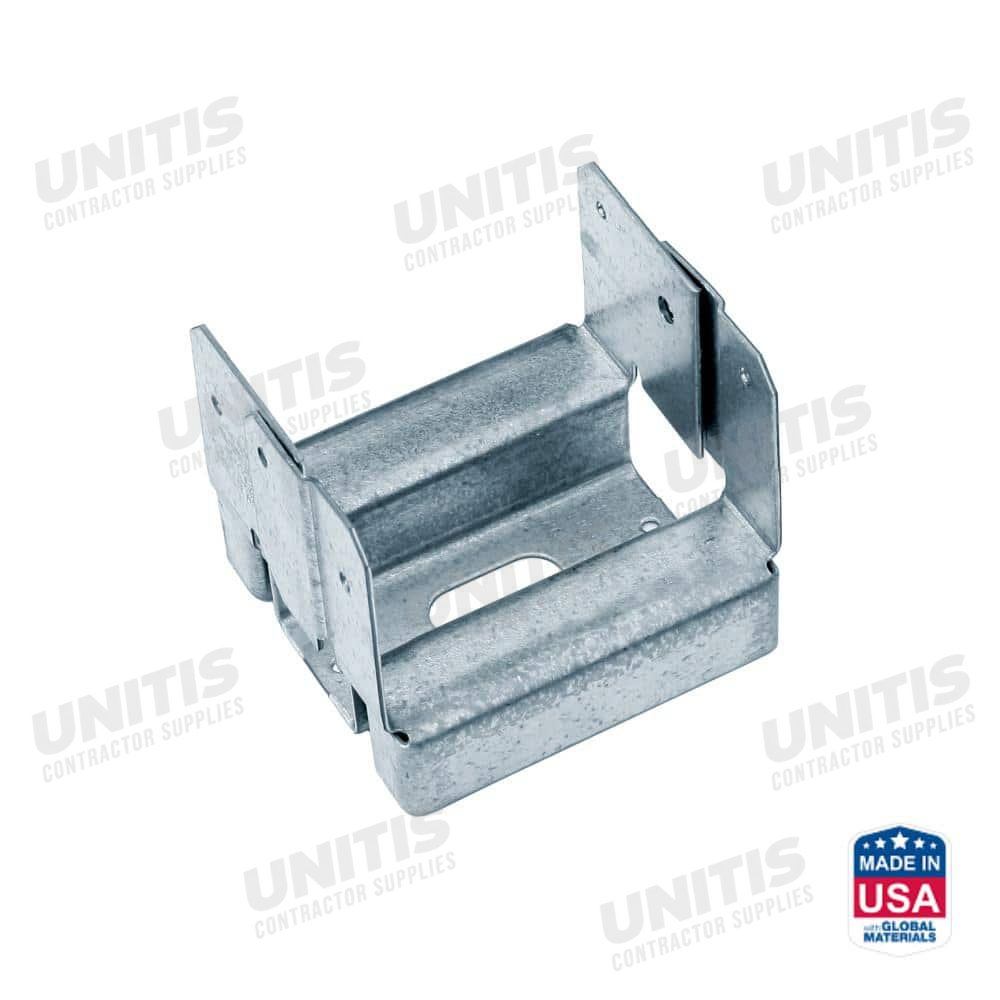

The Simpson Strong-Tie ABA44Z is a versatile adjustable post base designed to secure 4x4 wood posts to existing hardened concrete. Featuring a 1-inch standoff, this connector effectively prevents post-end rot caused by moisture, ensuring the longevity of your outdoor structures. Its slotted base provides critical adjustability during installation, allowing for precise alignment even if the anchor bolt is slightly off-center.

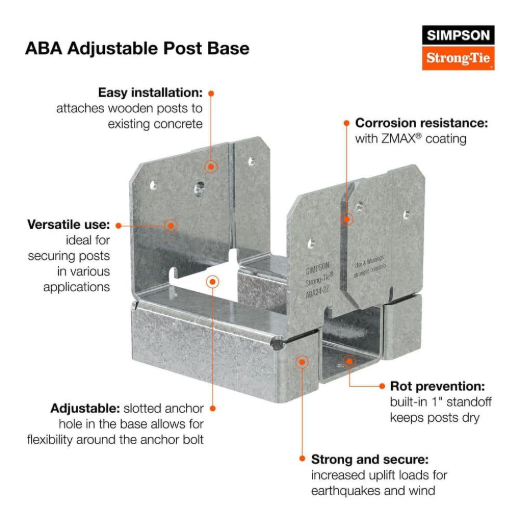

  • ZMAX galvanization for superior corrosion resistance
  • Integrated 1-inch standoff meets building codes

Features

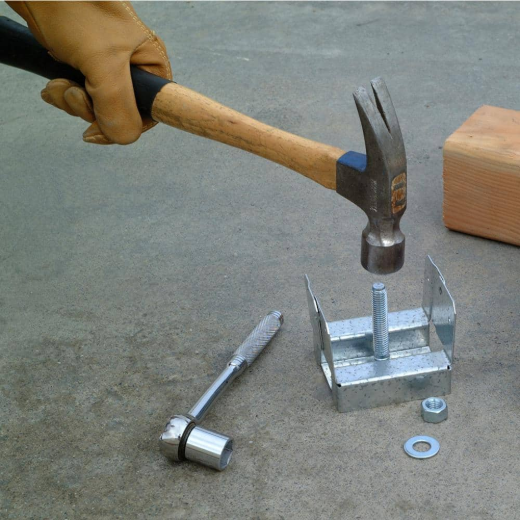

  • Slotted anchor hole allows for flexible positioning around existing bolts
  • Engineered to resist seismic and wind uplift forces
  • Made from durable 16-gauge steel for long-lasting stability
  • Ideal for decks, patio covers, and top-supported structures

Includes

  • (1) ABA44Z Adjustable Post Base
Products specifications
Material 16-Gauge Steel
Finish ZMAX Galvanized
Post Size 4x4

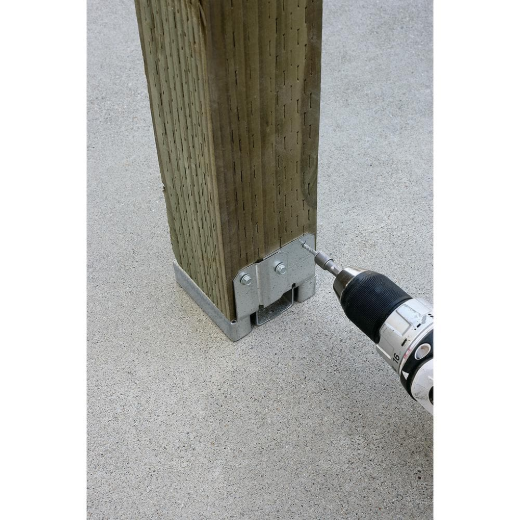

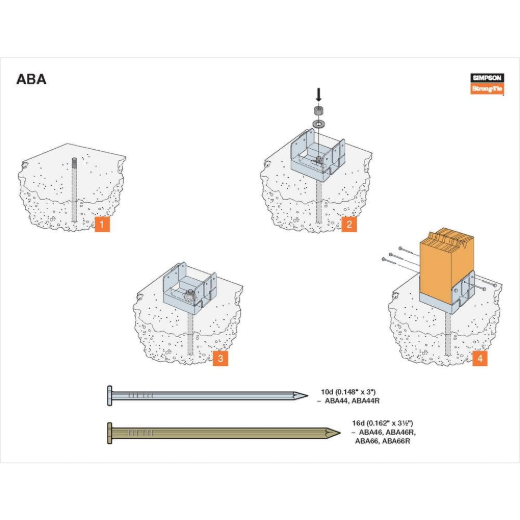

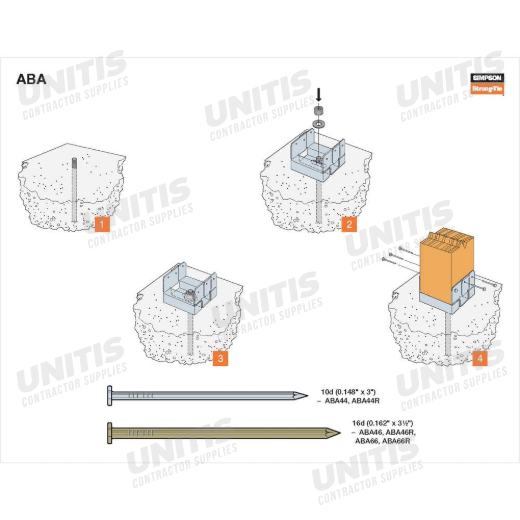

Fasteners Required (6) 0.148 inch x 3 inch Nails
Anchor Bolt Size 1/2 inch Diameter
Uplift Load Capacity 690 lbs
Download Load Capacity 5,925 lbs
Standoff Height 1 Inch
*
*
*
