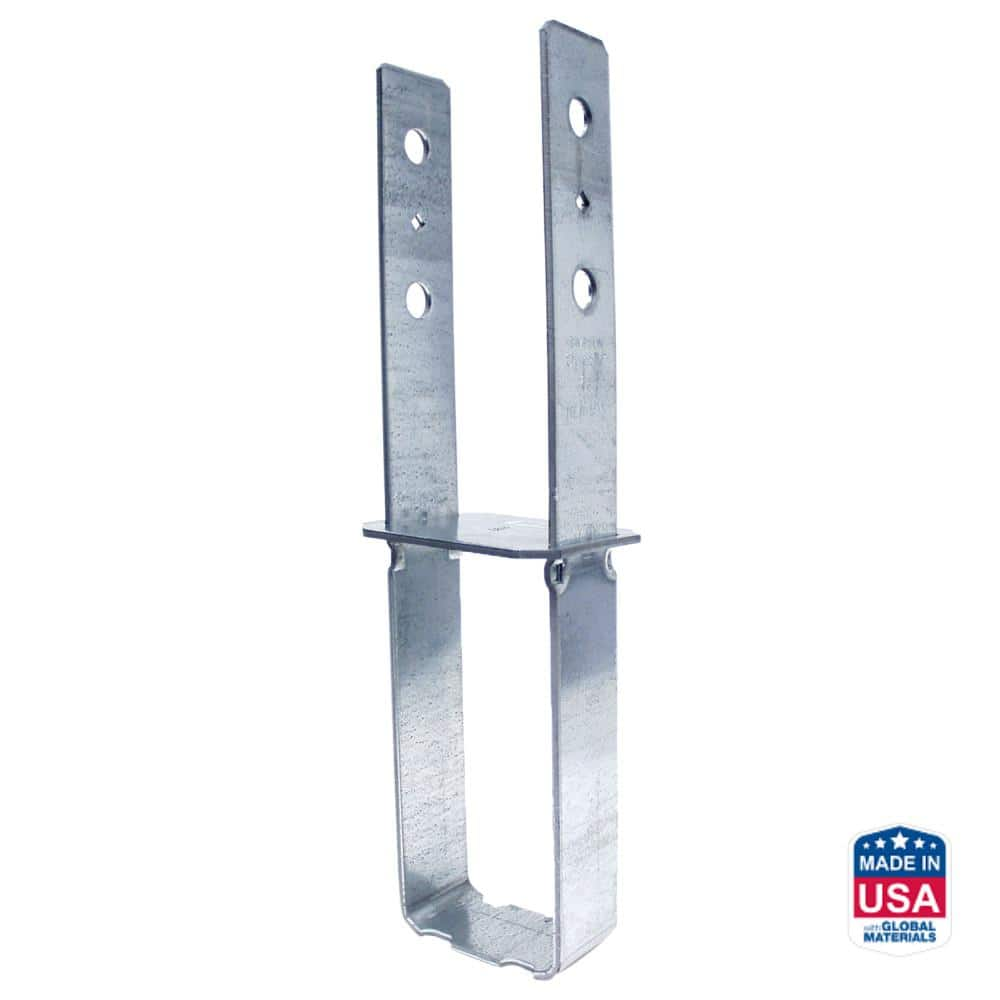

Simpson CB - 4" x 4" Column Base HDG

Mfr.: Simpson Strong-Tie
Item #: I090919
Mfr. #: CB44HDG
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $64.03
i h h

Description

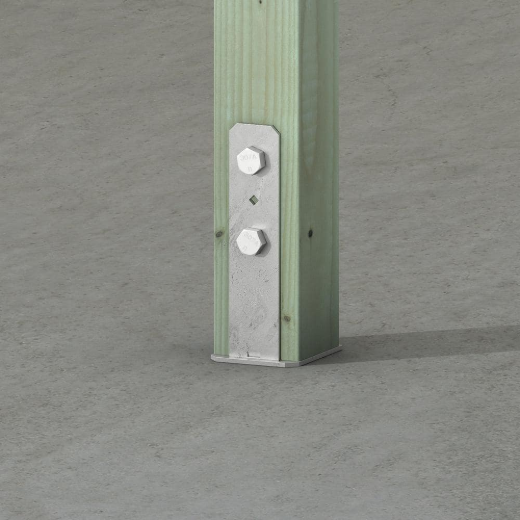

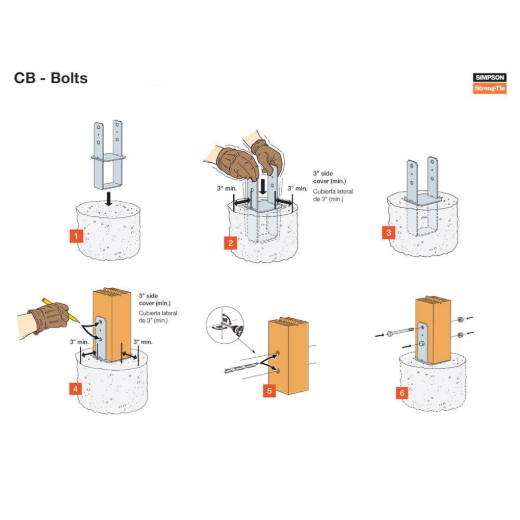

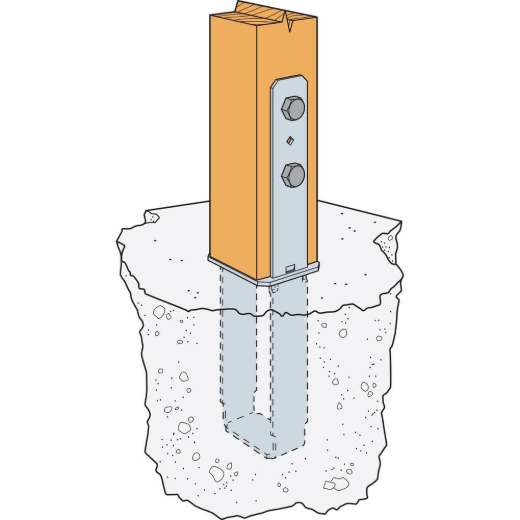

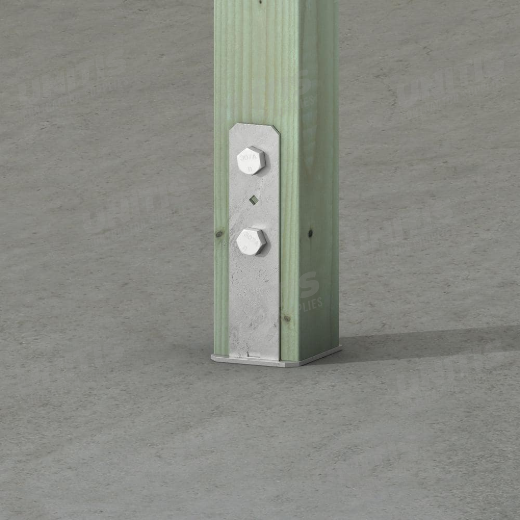

The Simpson CB44HDG 4x4 Column Base provides a high-strength connection for columns and posts to concrete foundations, significantly enhancing structural stability. This heavy-duty connector is designed for cast-in-place or wet-set installation, ensuring the base plate sits flush for maximum post bearing. It is engineered for rugged performance in projects requiring high uplift resistance against wind or seismic forces.
  • Hot-Dip Galvanized Finish
  • 7-Gauge Heavy Steel

Features

  • Provides increased uplift resistance for wind or seismic loading.
  • Bolt hole locations meet code-required spacing for optimal capacity.
  • Flush-mount design allows for full post bearing on the concrete surface.
  • Ideal for exterior applications and use with preservative-treated wood.

Includes

  • (1) CB44HDG Column Base
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-3050
Connector Type Column Base
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x4
Series CB
*
*
*
