Simpson 4x4 Column Base Standoff

Mfr.: Simpson Strong-Tie
Item #: I090981
Mfr. #: CBSTQ44Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $51.28
i h h

Description

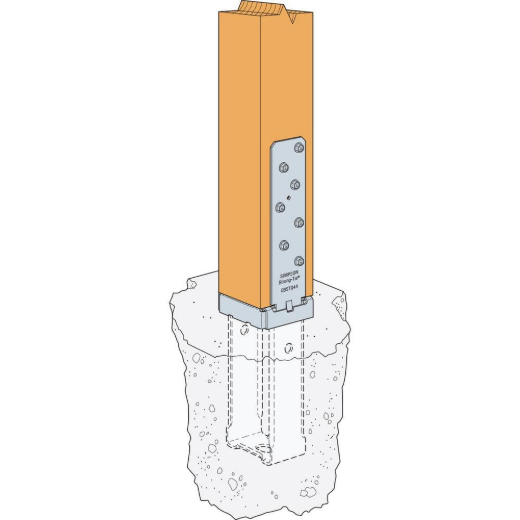

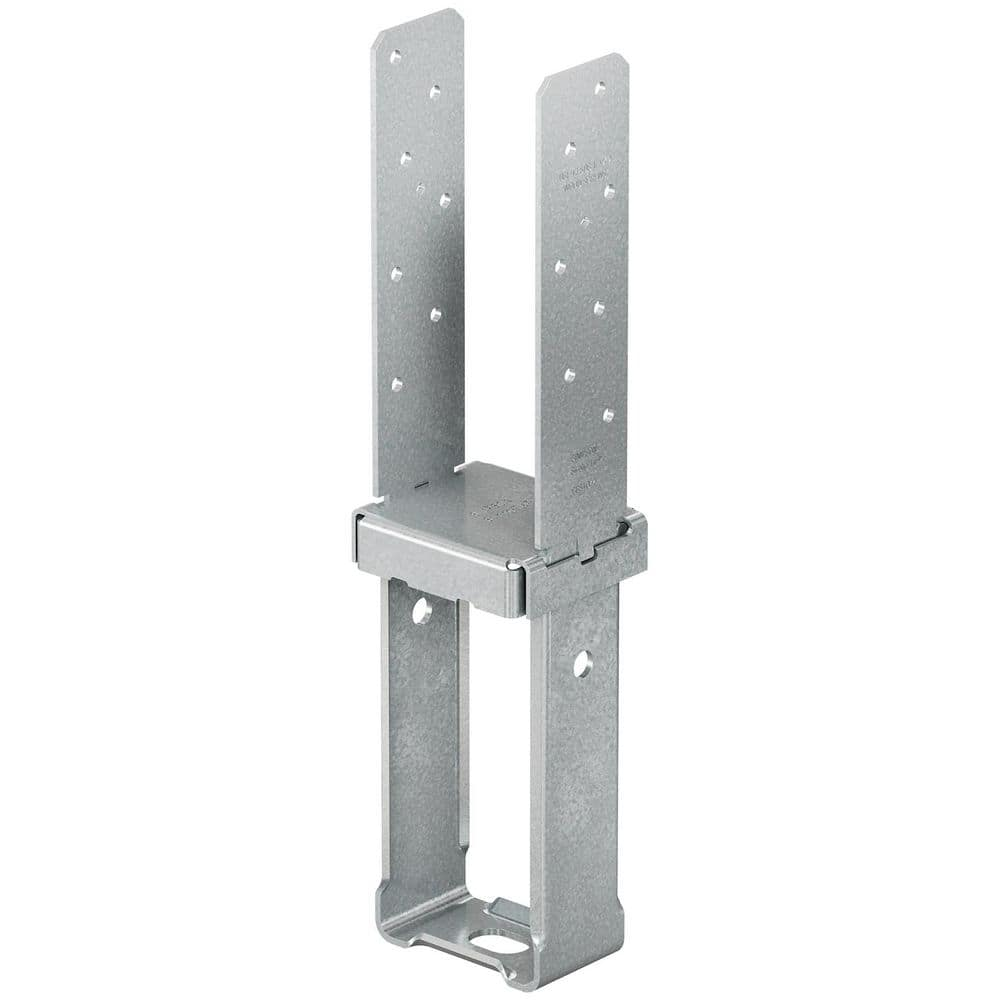

The Simpson Strong-Tie CBSTQ44Z is a high-performance, cast-in-place column base engineered for 4x4 wood posts in residential and light commercial projects. This standoff base features a code-compliant 1-inch elevation that protects the post from moisture and significantly reduces the risk of rot. With its innovative S-shaped bearing tabs and ZMAX galvanized finish, it provides superior structural stability and long-lasting corrosion resistance for outdoor applications like decks and pergolas.
  • Code-required 1-inch standoff
  • ZMAX Galvanized Finish

Features

  • S-shaped bearing tabs provide increased strength for higher download capacities.

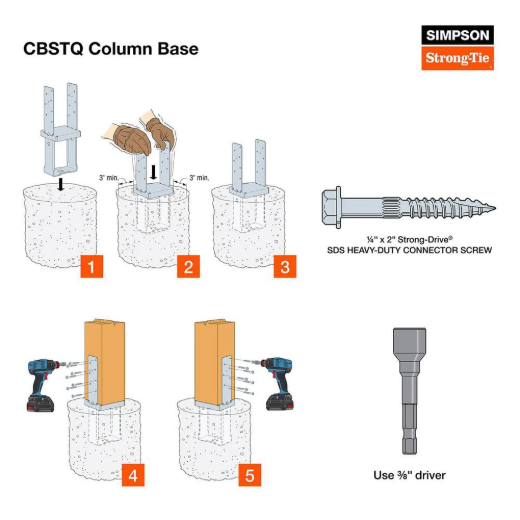

  • Designed for installation with Strong-Drive SDS Heavy-Duty Connector screws.
  • High-strength 12-gauge base and 10-gauge strap construction.

Includes

  • CBSTQ44Z Column Base
Products specifications
Finish ZMAX Galvanized
Material Carbon Steel
Base Thickness 12 Gauge
Strap Thickness 10 Gauge
Post Size 4x4
Standoff Height 1 Inch
Fasteners Required (14) 1/4 inch x 2 inch SDS Screws
Product Height 16.6 Inches
Product Width 3.56 Inches
*
*
*
