Simpson 4x4 Column Base Standoff CBSQ44

Mfr.: Simpson Strong-Tie
Item #: I090964
Mfr. #: CBSQ44
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $45.78
i h h

Description

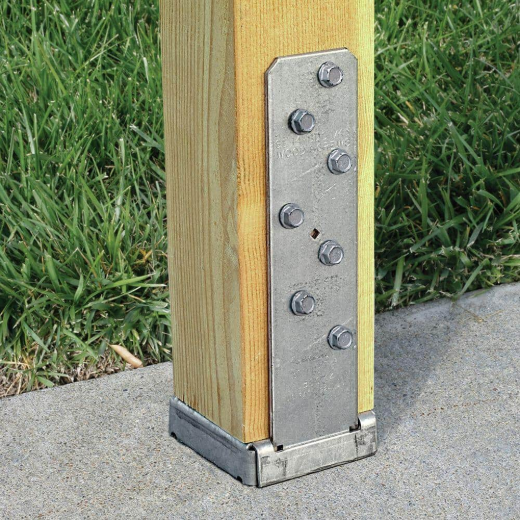

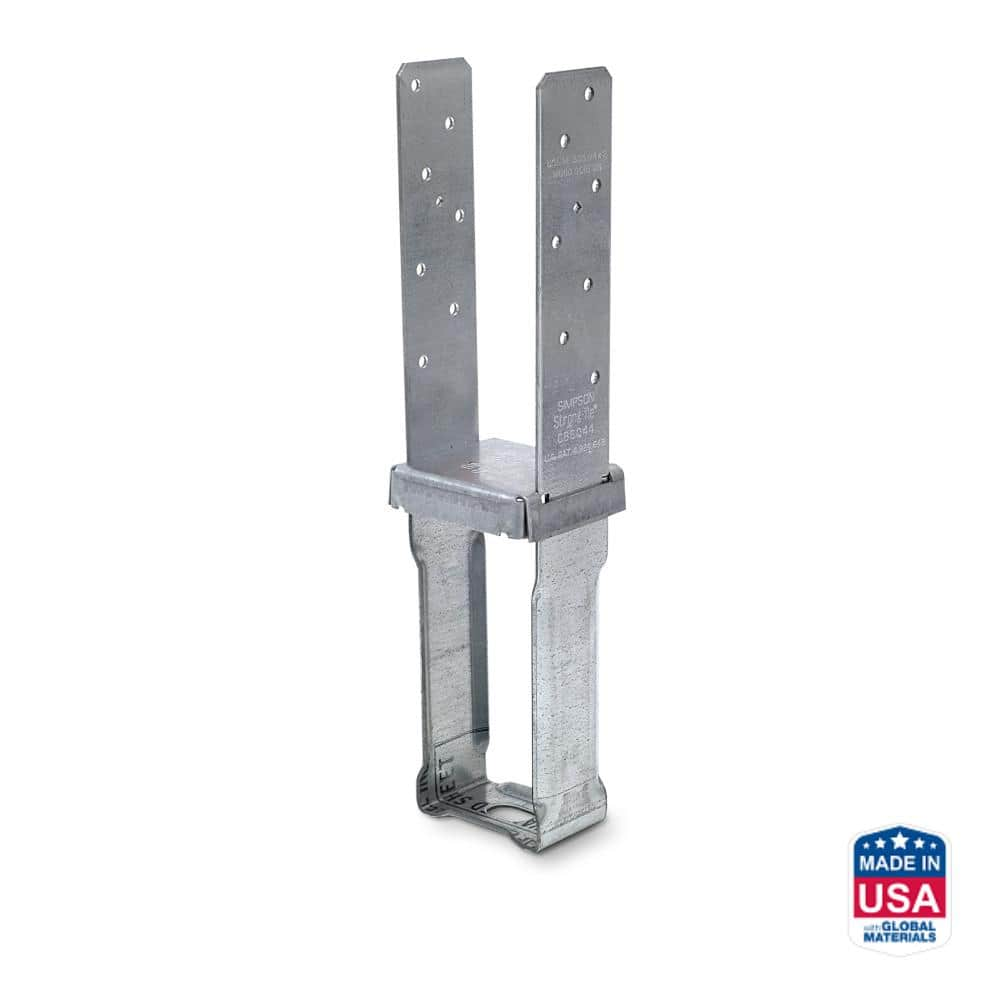

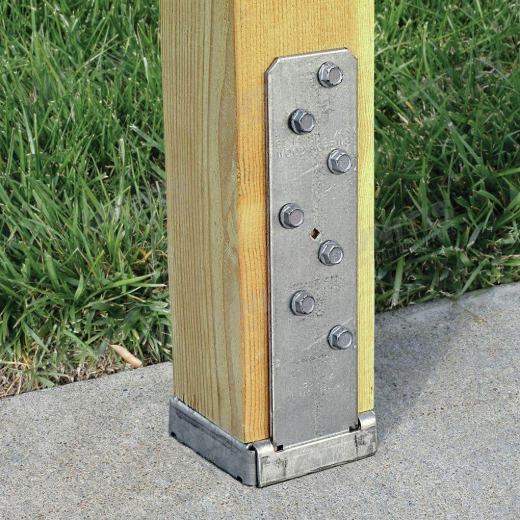

The Simpson Strong-Tie CBSQ44 is a high-capacity column base designed to provide a secure and durable connection between 4x4 posts and concrete foundations. It features a built-in 1-inch standoff that prevents wood decay by elevating the post above the concrete surface, meeting strict building code requirements. This model utilizes Strong-Drive SDS screws for a significantly faster installation compared to traditional bolting methods. Note that the CBSQ44 has been discontinued by the manufacturer and replaced by the CBSTQ series.
  • G90 Galvanized Finish
  • 1-Inch Integrated Standoff

Features

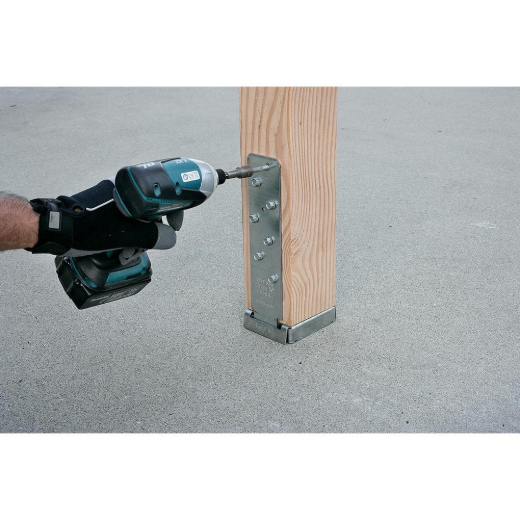

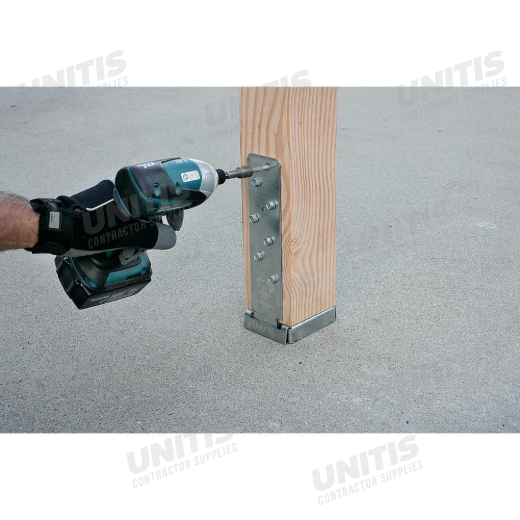

  • Includes Strong-Drive SDS screws for rapid installation

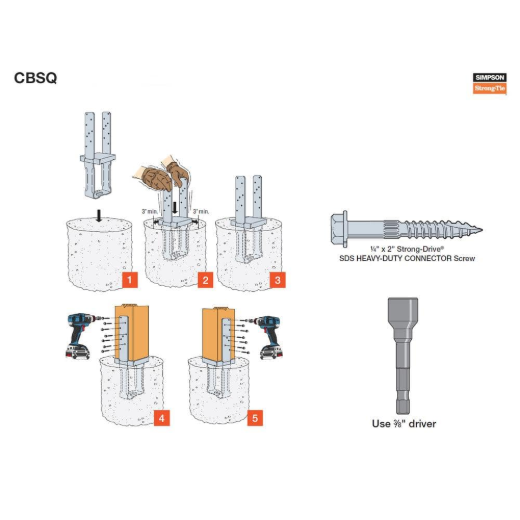

  • Designed for cast-in-place or wet-set installation
  • Heavy-gauge steel construction for superior structural support

Includes

  • CBSQ44 Column Base Standoff
  • 1/4 in. x 2 in. Strong-Drive SDS Screws
Products specifications
Post Size 4x4 Nominal
Material Heavy-Gauge Steel
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Finish Galvanized (G90)
Standoff Height 1 Inch
Fastener Type SDS Connector Screws
Product Status Discontinued (Successor: CBSTQ)
*
*
*
