  • Simpson 4X4 Column Base Standoff CBST44Z

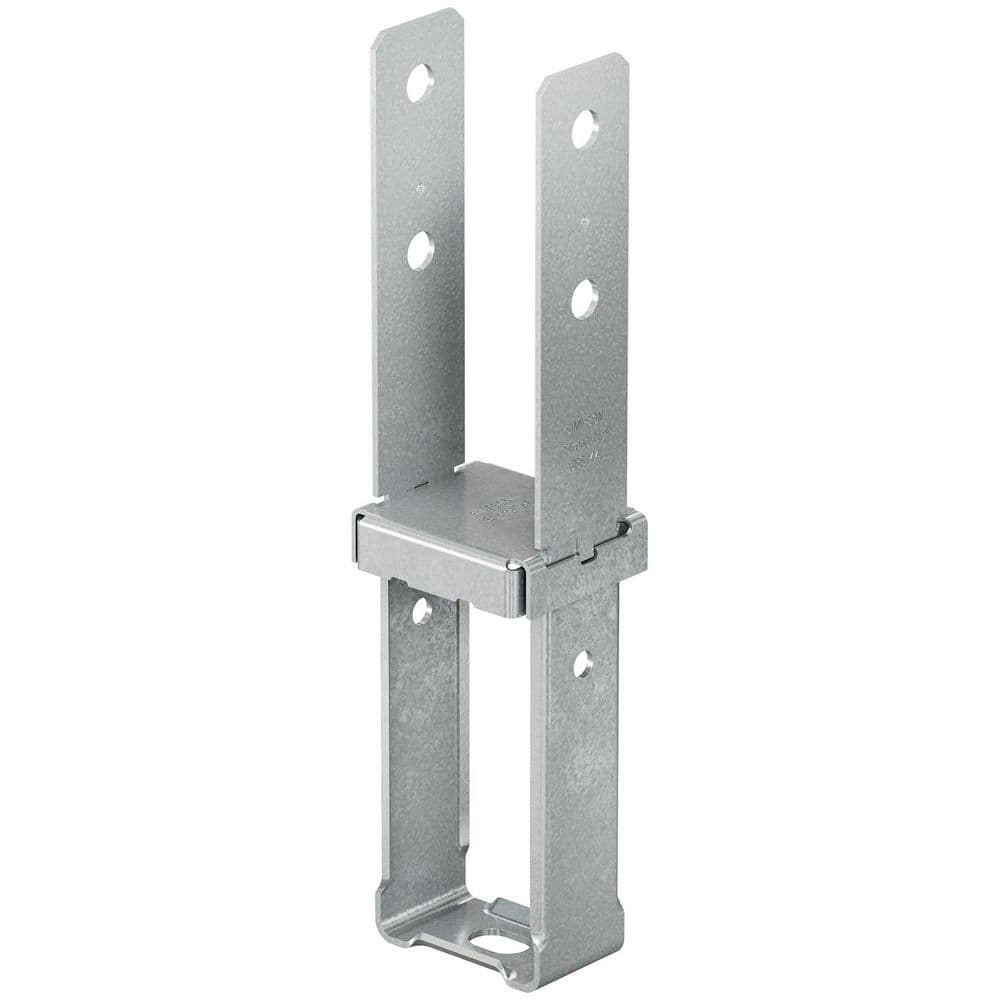

Simpson 4X4 Column Base Standoff CBST44Z

Mfr.: Simpson Strong-Tie
Item #: I090975
Mfr. #: CBST44Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $53.44
i h h

Description

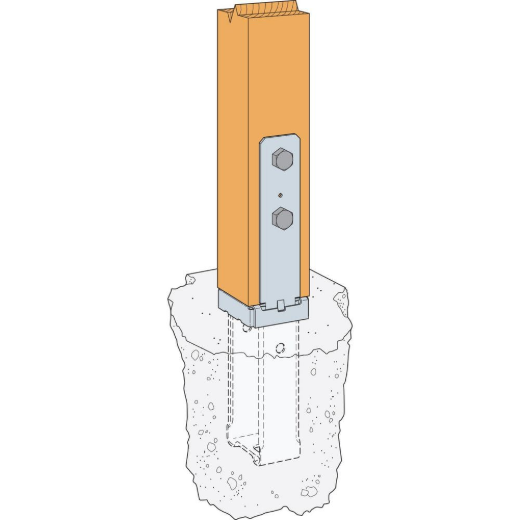

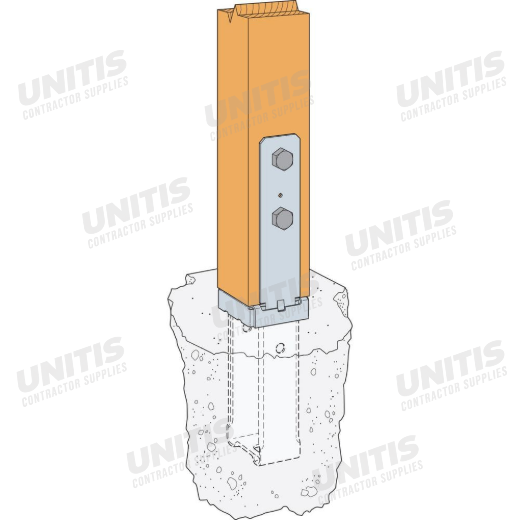

The Simpson Strong-Tie CBST44Z is a heavy-duty, cast-in-place column base designed to provide a secure and durable connection between 4x4 wood posts and concrete foundations. It features a code-required 1-inch standoff that elevates the wood post above the concrete surface, significantly reducing the risk of moisture-induced rot and decay. Engineered with unique S-shaped bearing tabs, this base delivers increased download capacity and overall structural stability for residential and light commercial projects. The ZMAX galvanized finish ensures superior corrosion resistance, making it an ideal choice for exterior applications.
  • 1 inch Standoff to reduce moisture damage
  • S-shaped bearing tabs for higher load capacity
  • Corrosion-resistant ZMAX galvanized coating
  • Heavy-gauge steel for structural durability

Features

  • Code-compliant solution for wood-to-concrete
  • Compatible with preservative-treated wood
  • Designed for nominal 4x4 wood columns
  • Successor to the CBS series with improved loads

Includes

  • (1) CBST44Z Column Base
Products specifications
Material Steel
Finish ZMAX Galvanized
Post Size 4x4
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Standoff Height 1 inch
Overall Height 8-3/8 inches
Required Fasteners (2) 5/8 inch Machine Bolts
*
*
*
