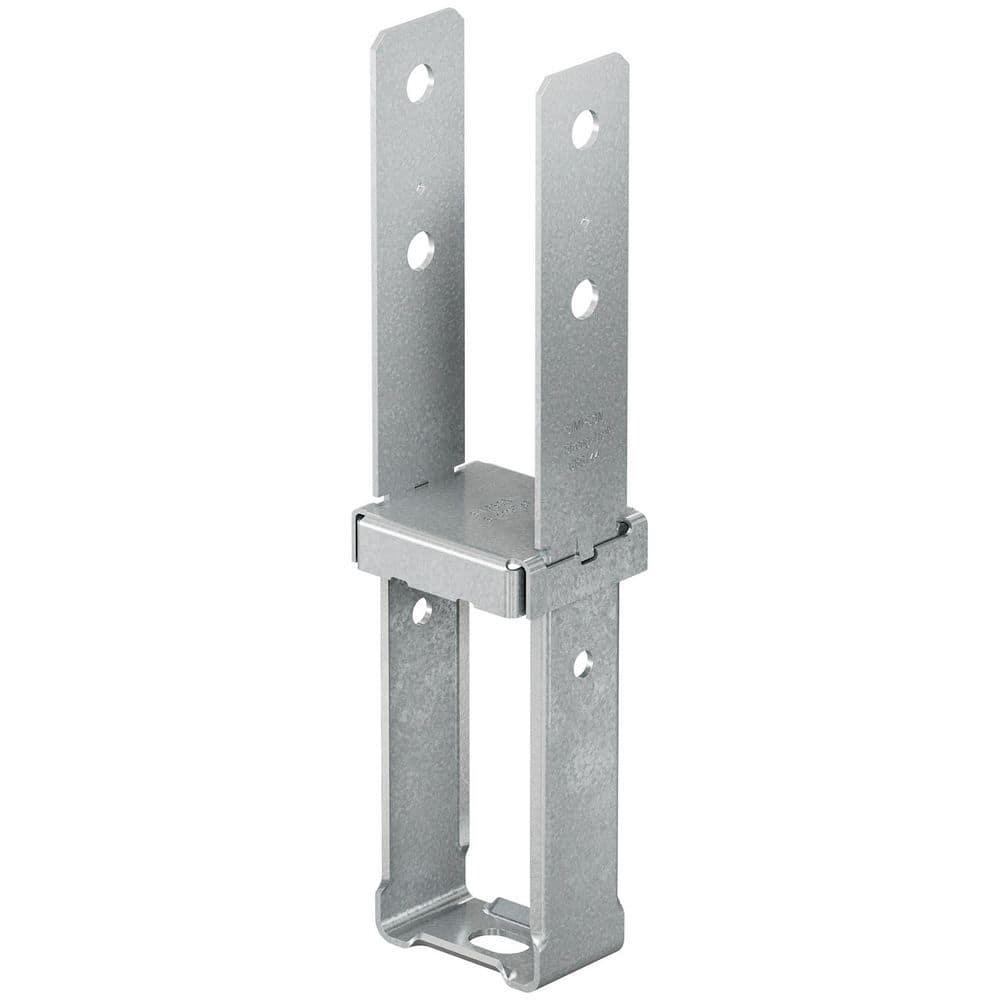

Simpson CBST - 4" x 4" Column Base Standoff HDG

Mfr.: Simpson Strong-Tie
Item #: I090974
Mfr. #: CBST44HDG
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $68.35
i h h

Description

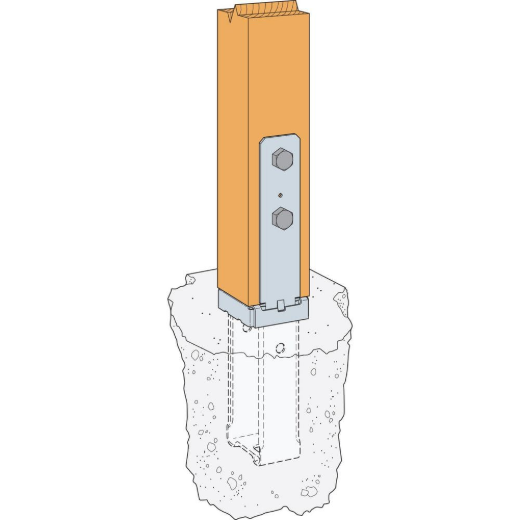

The Simpson Strong-Tie CBST44HDG is a heavy-duty standoff column base designed to provide a secure, code-compliant connection between 4x4 wood posts and concrete foundations. Its integrated 1-inch standoff elevates the wood column above the concrete surface to prevent moisture contact and post-end rot, ensuring long-term structural integrity in outdoor environments. Engineered with unique S-shaped bearing tabs, this base delivers exceptional download capacity and stability for residential and light commercial projects.
  • Hot-Dip Galvanized
  • 1-Inch Standoff

Features

  • Code-required 1 inch standoff protects wood from moisture and decay.
  • S-shaped bearing tabs provide increased strength for higher download capacities.
  • Hot-dip galvanized (HDG) finish offers superior corrosion resistance for exterior use.
  • Heavy-duty construction features a 12-gauge base and 10-gauge straps.

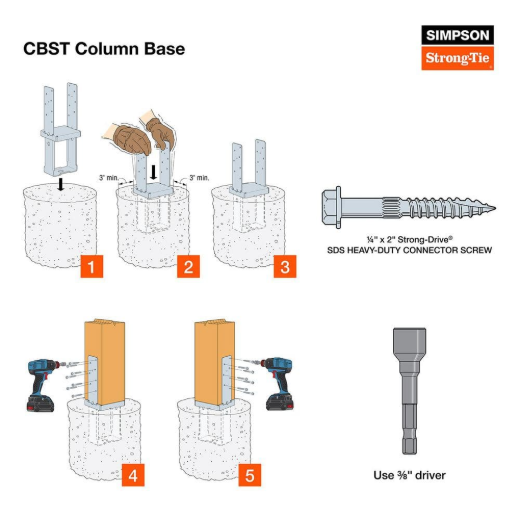

  • Designed for cast-in-place installation in wet concrete.

Includes

  • (1) CBST44HDG Column Base
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-3050
Connector Type Column Base
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x4
Series CBST
*
*
*
