  • Simpson 4X4 Column Base Standoff Hdg With Screws

Simpson 4X4 Column Base Standoff Hdg With Screws

Mfr.: Simpson Strong-Tie
Item #: I090966
Mfr. #: CBSQ44-SDS2HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $73.83
i h h

Description

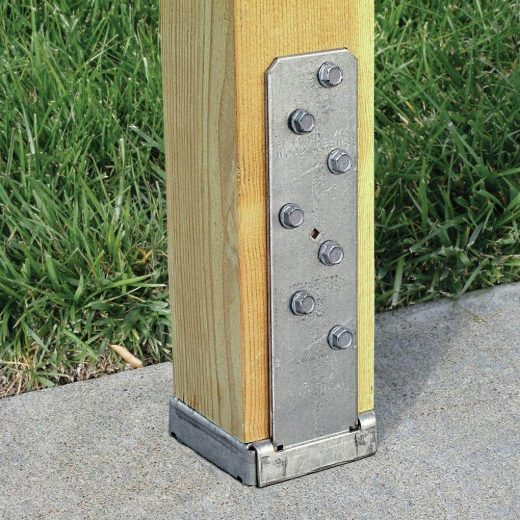

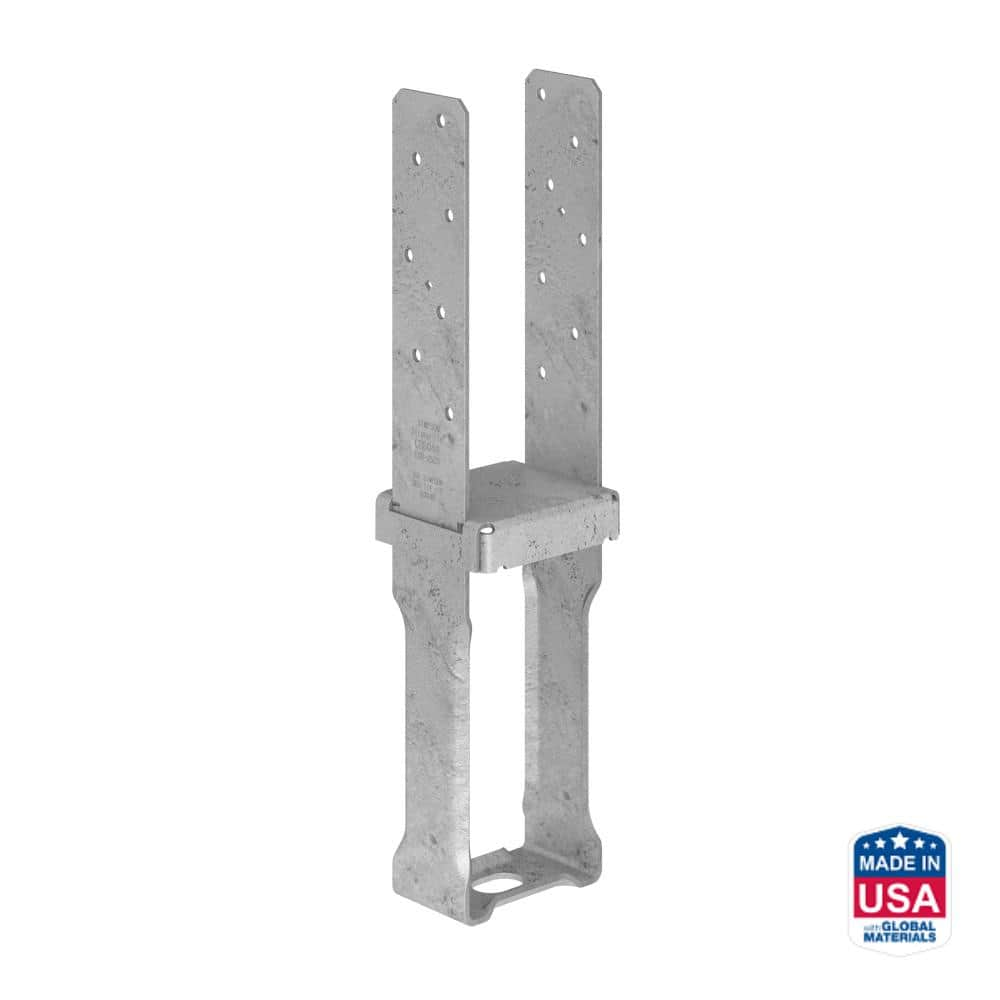

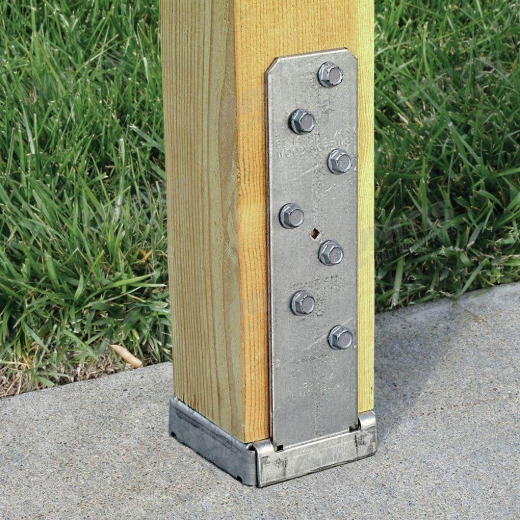

The Simpson Strong-Tie CBSQ44-SDS2HDG is a high-performance column base designed to connect 4x4 wood posts to concrete foundations. It features a 1-inch standoff to prevent post-end decay by keeping the wood away from moisture and meeting strict building code requirements. This heavy-duty connector is engineered to efficiently transmit structural stresses while providing superior stability for decks, patio covers, and other top-supported structures.
  • Hot-Dip Galvanized Finish
  • 1-Inch Standoff Base

Features

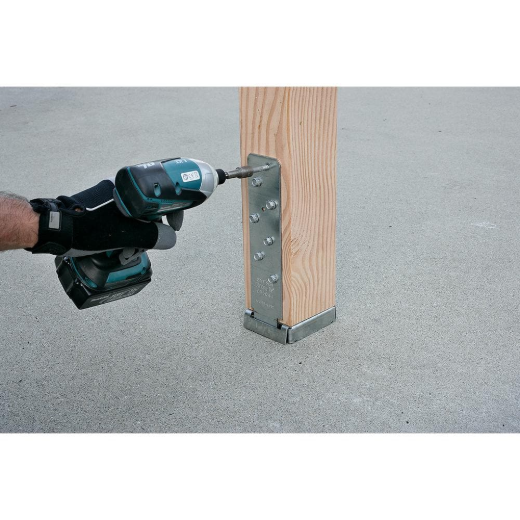

  • Includes Strong-Drive SDS Heavy-Duty Connector screws for significantly faster installation compared to traditional bolting.
  • Provides a greater wood net section area than bolts, improving the overall strength of the connection.
  • Constructed from durable 12-gauge steel for the base and 10-gauge steel for the straps.

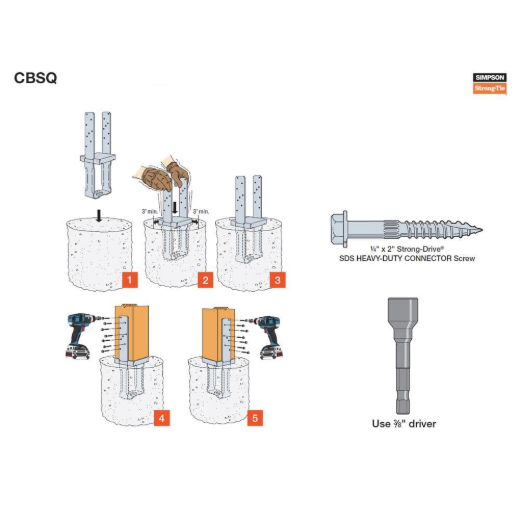

  • Designed for cast-in-place or wet-set applications in concrete footings.

Includes

  • (1) CBSQ44-SDS2HDG Standoff Column Base
  • (4) SDS 1/4 inch x 2 inch Heavy-Duty Connector Screws
Products specifications
Material Heavy Gauge Steel
Finish Hot-Dip Galvanized
Post Size 4x4
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Standoff Height 1 inch
Overall Height 8.38 inches
Overall Width 3.56 inches
Overall Depth 7.125 inches
*
*
*
