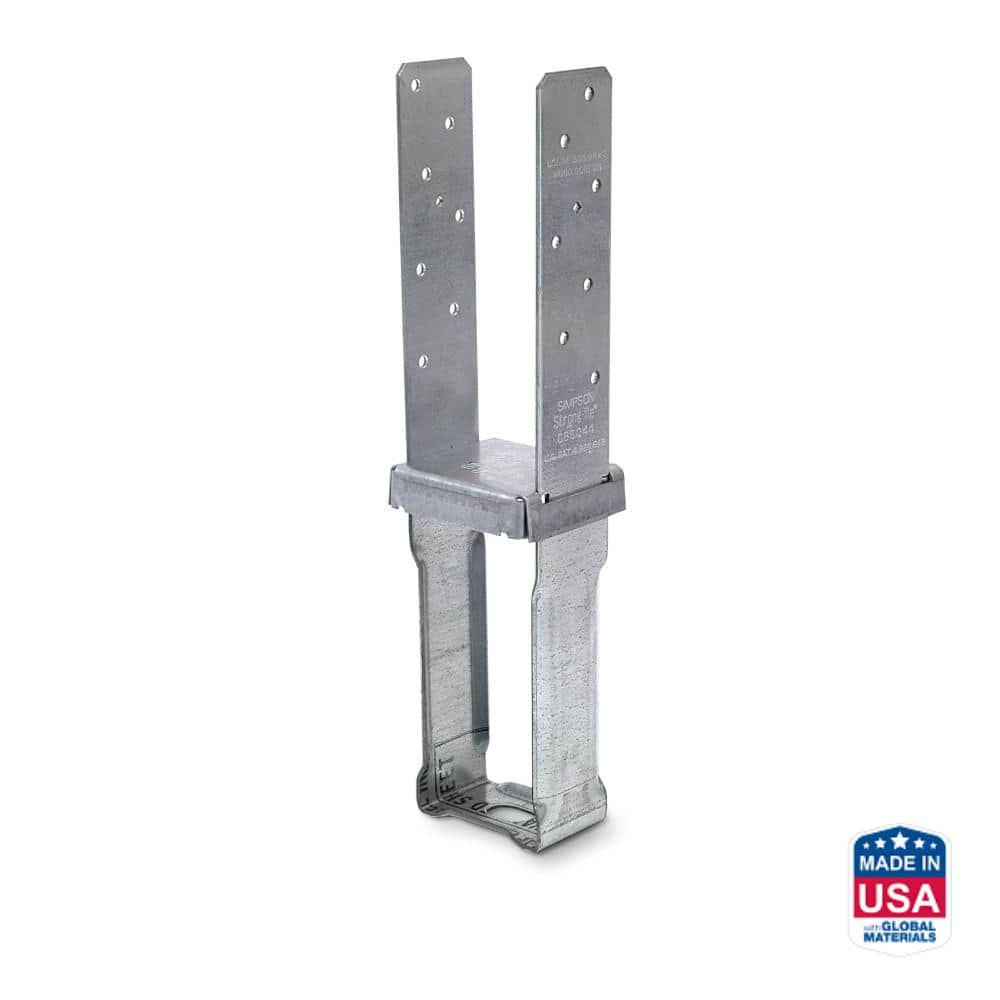

Simpson 4x4 Column Base Standoff With Screws

Mfr.: Simpson Strong-Tie
Item #: I090965
Mfr. #: CBSQ44-SDS2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $53.34
i h h

Description

The Simpson Strong-Tie CBSQ44-SDS2 is a high-performance, quick-install column base designed to provide a secure connection between 4x4 wood posts and concrete foundations. This standoff base features a code-required 1-inch clearance to prevent post-end rot caused by moisture exposure, making it ideal for outdoor structures like decks and patio covers. By utilizing Strong-Drive SDS Heavy-Duty Connector screws, this base ensures a faster installation process and higher capacity than traditional bolting methods. Please note that this specific model has been discontinued by the manufacturer and is succeeded by the CBSTQ series.
  • Galvanized Steel Construction
  • 1-Inch Standoff Protection

Features

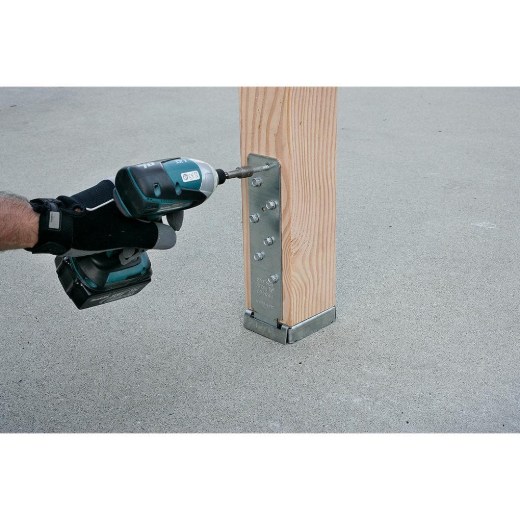

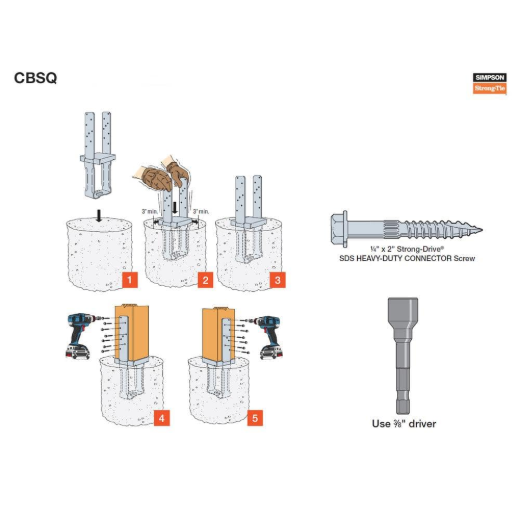

  • Uses Strong-Drive SDS Heavy-Duty Connector screws for a faster, bolt-free installation.

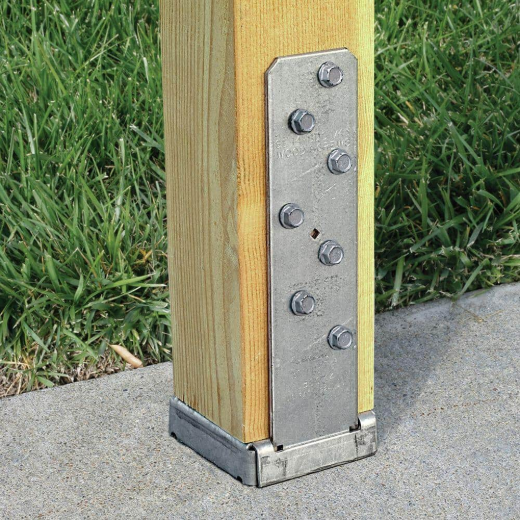

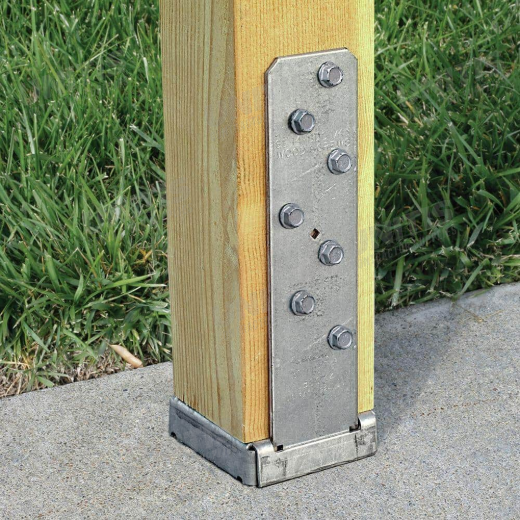

  • Standoff design helps prevent wood decay by elevating the post away from moisture.
  • Provides a greater wood net section area than traditional bolt-on alternatives.

Includes

  • 1 x CBSQ44-SDS2 Column Base
  • 14 x Strong-Drive SDS 1/4 inch x 2 inch Screws
Products specifications
Product Series CBSQ Series
Lumber Size 4x4
Material Galvanized Steel
Finish G90 Galvanized
Standoff Height 1 inch
Strap Thickness 10 Gauge
Base Thickness 12 Gauge
Fasteners 14 - 1/4 inch x 2 inch SDS Screws
*
*
*
