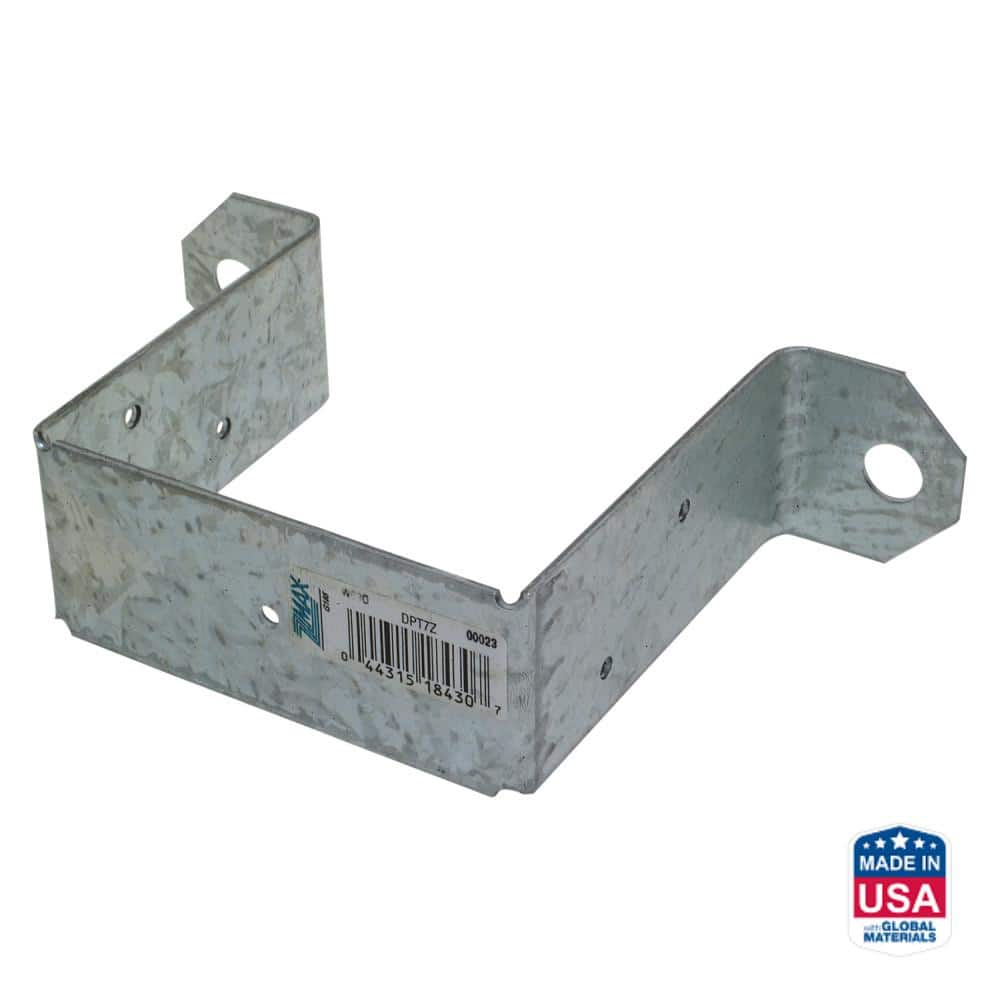

Simpson 4X4 Deck Post Tie Zmax

Mfr.: Simpson Strong-Tie
Item #: I092576
Mfr. #: DPT7Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $4.27
i h h

Description

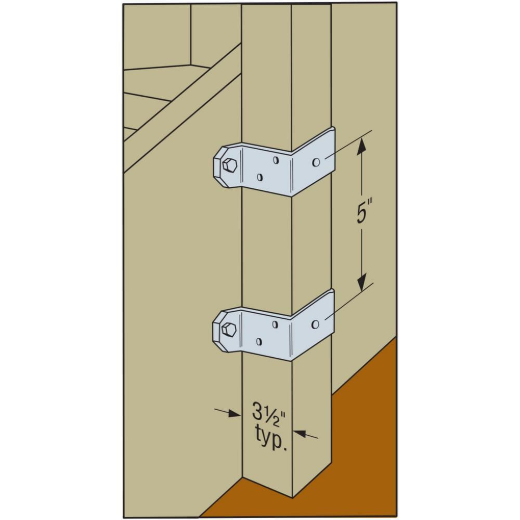

The Simpson Strong-Tie DPT7Z is a ZMAX galvanized deck post tie engineered to securely connect 4x4 posts to the outside of deck stringers and rim joists. This tie is designed for both new construction and retrofit projects, offering a simpler and stronger alternative to traditional through-bolting. Its robust steel construction and ZMAX coating provide excellent corrosion resistance, making it ideal for exterior applications and use with pressure-treated lumber. The DPT7Z helps ensure structural integrity and lateral load resistance for your deck.
  • Connects 4x4 posts to deck stringers and rim joists
  • ZMAX galvanized finish for enhanced corrosion resistance

Features

  • 14-gauge steel construction for durability
  • Designed for lateral load resistance
  • Easier installation than through-bolting
  • Suitable for exterior and treated wood applications

Includes

  • Not explicitly listed as included, but requires (2) 3/8 inch machine bolts and (5) 0.148 inch x 3 inch nails or #9 x 1-1/2 inch Strong-Drive SD Connector screws for installation.
Products specifications
post_size 4x4
material Carbon Steel
gauge 14
finish ZMAX

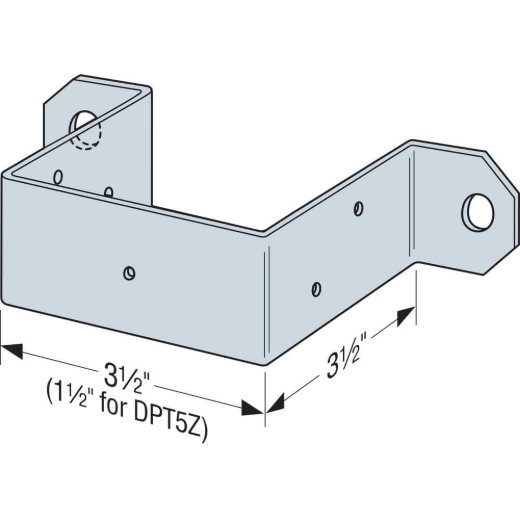

length 3-1/2 inch
width 6.33 inch
depth 1-1/2 inch
fastener_type Nail
fastener_size 0.148 inch x 3 inch
*
*
*
