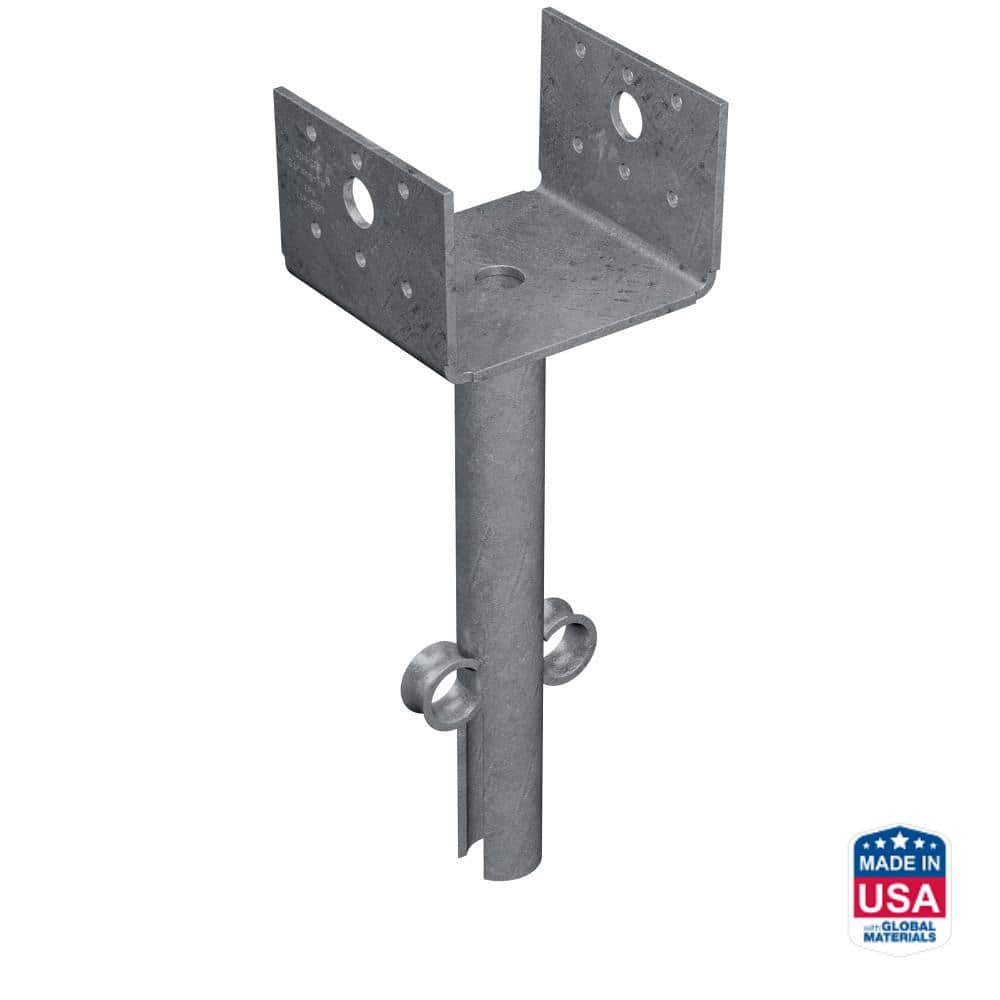

Simpson 4X4 Elevated Post Base

Mfr.: Simpson Strong-Tie
Item #: I090996
Mfr. #: EPB44
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $21.37
i h h

Description

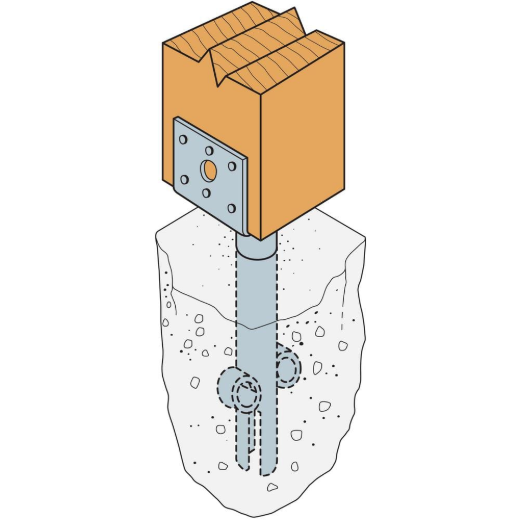

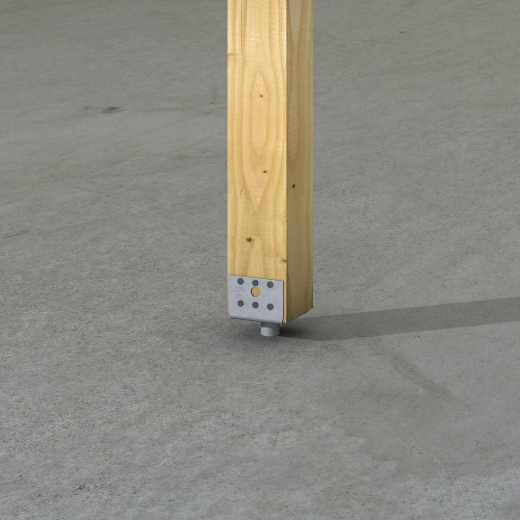

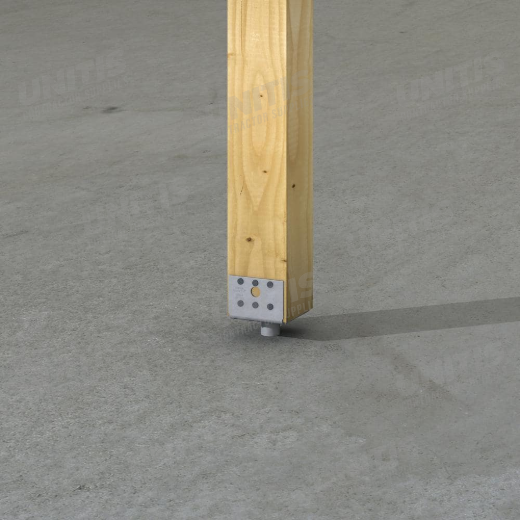

The Simpson Strong-Tie EPB44 is a heavy-duty elevated post base designed to provide a secure cast-in-place connection for 4x4 wood posts in concrete foundations. This connector features a built-in standoff that raises the post above the concrete surface, meeting building codes and protecting the wood from moisture and rot. It is an ideal solution for structural support in outdoor projects such as decks, patio covers, and other top-supported structures.
  • Cast-in-place installation for wet concrete
  • Gray paint finish for enhanced durability

Features

  • Provides the code-required 1-inch standoff to prevent post-end decay.
  • Supports an adjustable standoff height ranging from 1 inch up to 2-1/2 inches.
  • Manufactured from high-strength 12-gauge steel for reliable performance.
  • Features a 1-1/16 inch OD by 8 inch pipe for deep concrete embedment.

Includes

  • 1 x EPB44 Elevated Post Base
Products specifications
Post Size 4x4
Material 12-Gauge Steel
Finish Gray Paint
Fasteners Required (8) 0.162 inch x 3-1/2 inch Nails
Standoff Height 1 inch to 2-1/2 inch
Pipe Length 8 inches
Pipe Diameter 1-1/16 inch OD
Base Width 3-9/16 inches
Base Length 3-1/4 inches
Download Capacity 3465 lbs
*
*
*
