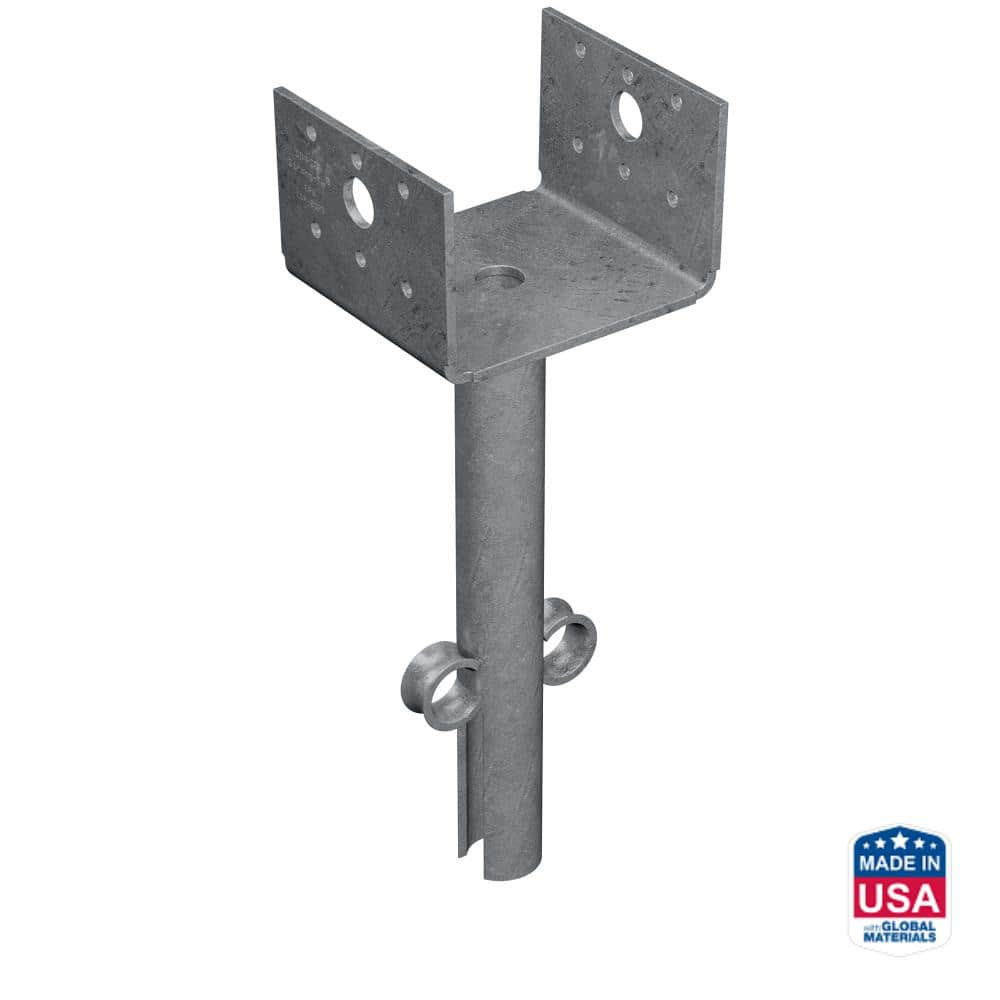

Simpson 4X4 Elevated Post Base Hdg

Mfr.: Simpson Strong-Tie
Item #: I091000
Mfr. #: EPB44HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $28.66
i h h

Description

The Simpson Strong-Tie EPB44HDG is a high-quality elevated post base designed to secure 4x4 wood posts to cast-in-place concrete foundations. As part of the versatile EPB series, this connector provides a critical 1-inch standoff that meets building codes and protects the post from moisture and rot. Its hot-dip galvanized finish ensures exceptional corrosion resistance, making it an ideal choice for outdoor structures like decks and patio covers.
  • Hot-Dip Galvanized Finish
  • 12-Gauge Steel Construction
  • Code-Required 1-Inch Standoff

Features

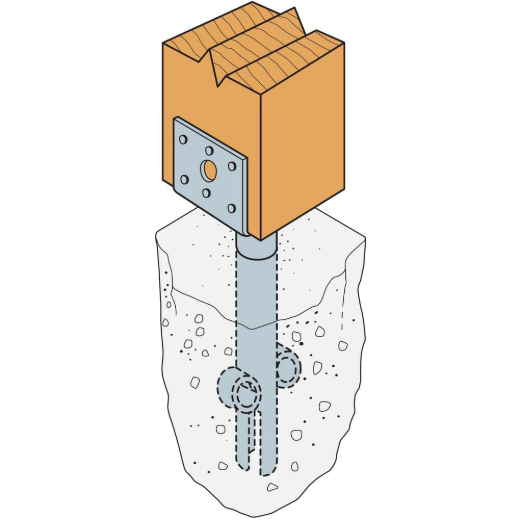

  • Designed for cast-in-place installation in wet concrete for a secure bond.
  • Adjustable standoff height allows for a clearance of up to 2-1/2 inches above the concrete surface.
  • Engineered specifically for top-supported structures such as carports and patio roofs.
  • Heavy-duty 12-gauge base plate provides superior structural stability and longevity.

Includes

  • (1) EPB44HDG Elevated Post Base
Products specifications
Model Number EPB44HDG
Series EPB
Material 12-Gauge Steel
Finish Hot-Dip Galvanized
Post Size 4x4
Base Length 3-1/4 inch
Base Width 3-9/16 inch
Base Height 2-5/16 inch
Standoff Range 1 inch to 2-1/2 inch
Required Fasteners (8) 0.162 x 3-1/2 Nails
*
*
*
