Simpson 4X4 Moment Post Base ZMAX

Mfr.: Simpson Strong-Tie
Item #: I091021
Mfr. #: MPB44Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $200.21
i h h

Description

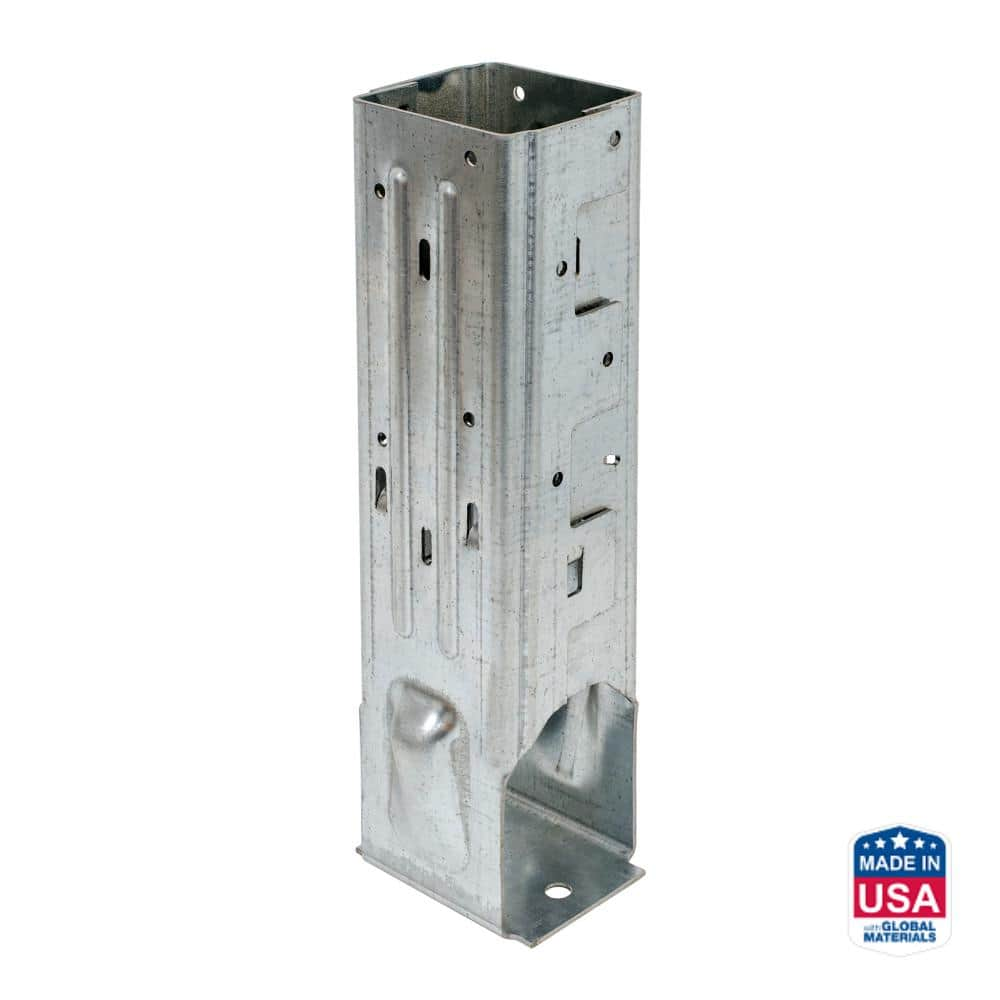

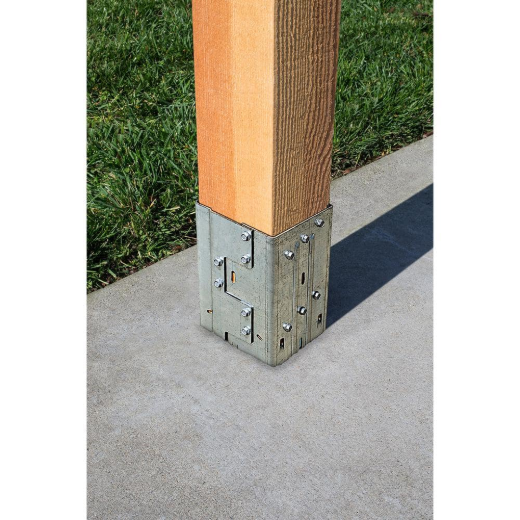

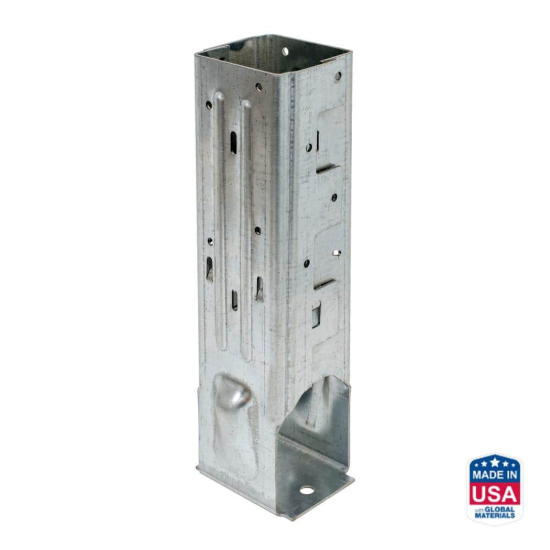

The Simpson Strong-Tie MPB44Z is a high-performance moment post base engineered to provide superior lateral resistance for 4x4 wood columns and posts. Its innovative sleeve design encapsulates the post, preventing rotation at the base and reducing the need for additional bracing. This off-the-shelf solution provides contractors and specifiers with greater design flexibility and the opportunity for more unobstructed views in outdoor structures like carports and decks.
  • ZMAX Galvanized Coating
  • 12-Gauge Steel Construction

Features

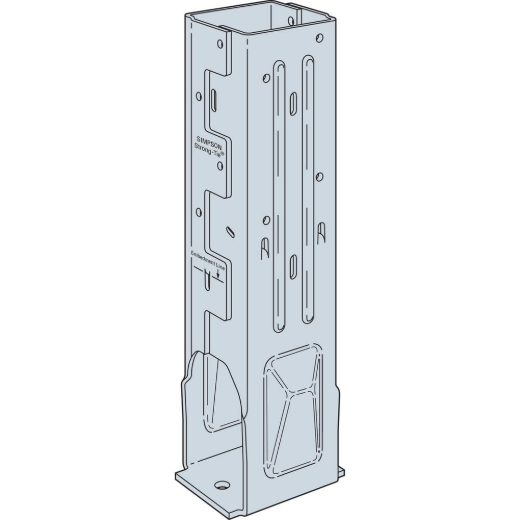

  • Overlapping sleeve design encapsulates the post to provide moment resistance and resist rotation.
  • Internal tabs provide a 1-inch standoff to prevent post rot from standing water or ground moisture.

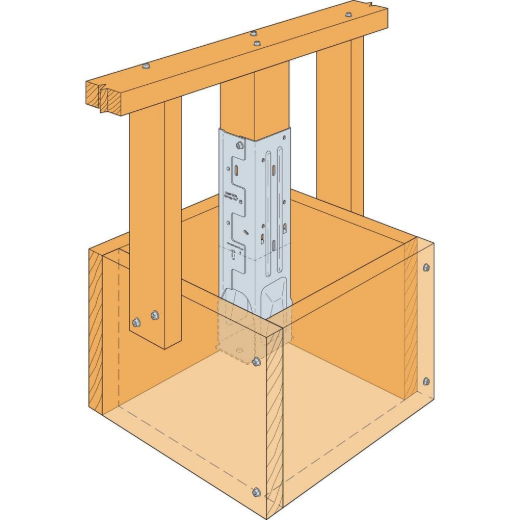

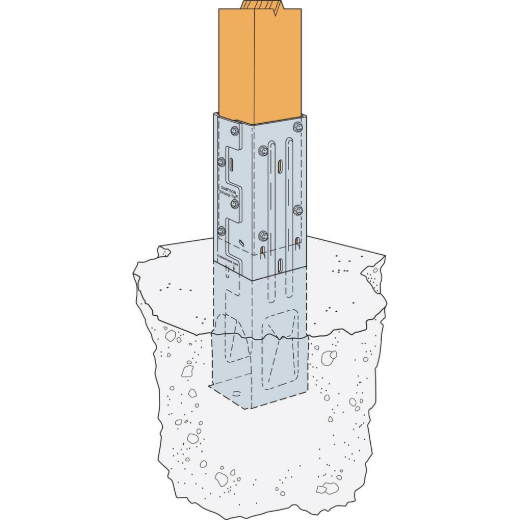

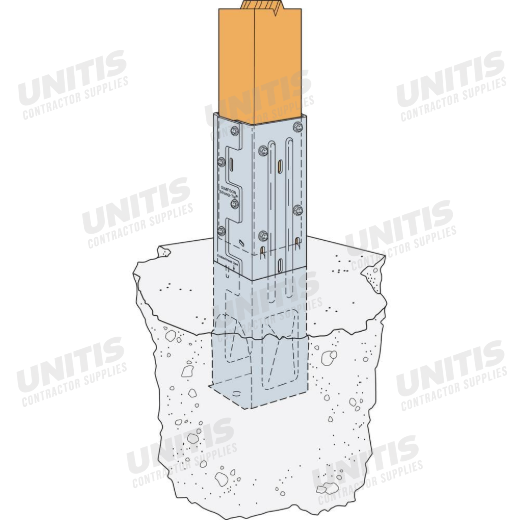

  • Stamped embedment indicators and internal tabs simplify installation by identifying required concrete depth.
  • Integrated weep holes allow standing water to exit and provide a point for visual inspection.

Includes

  • 4x4 Moment Post Base (MPB44Z)
  • Strong-Drive SDS Heavy-Duty Connector Screws
Products specifications
Post Size 4x4
Material 12-Gauge Steel
Finish ZMAX Galvanized
Base Height 7-1/4 inch
Base Width 3-9/16 inch
Base Depth 7-1/4 inch
Standoff 1 inch
Fasteners Included Yes (SDS Screws)
Connection Type Moment Resistant
*
*
*
