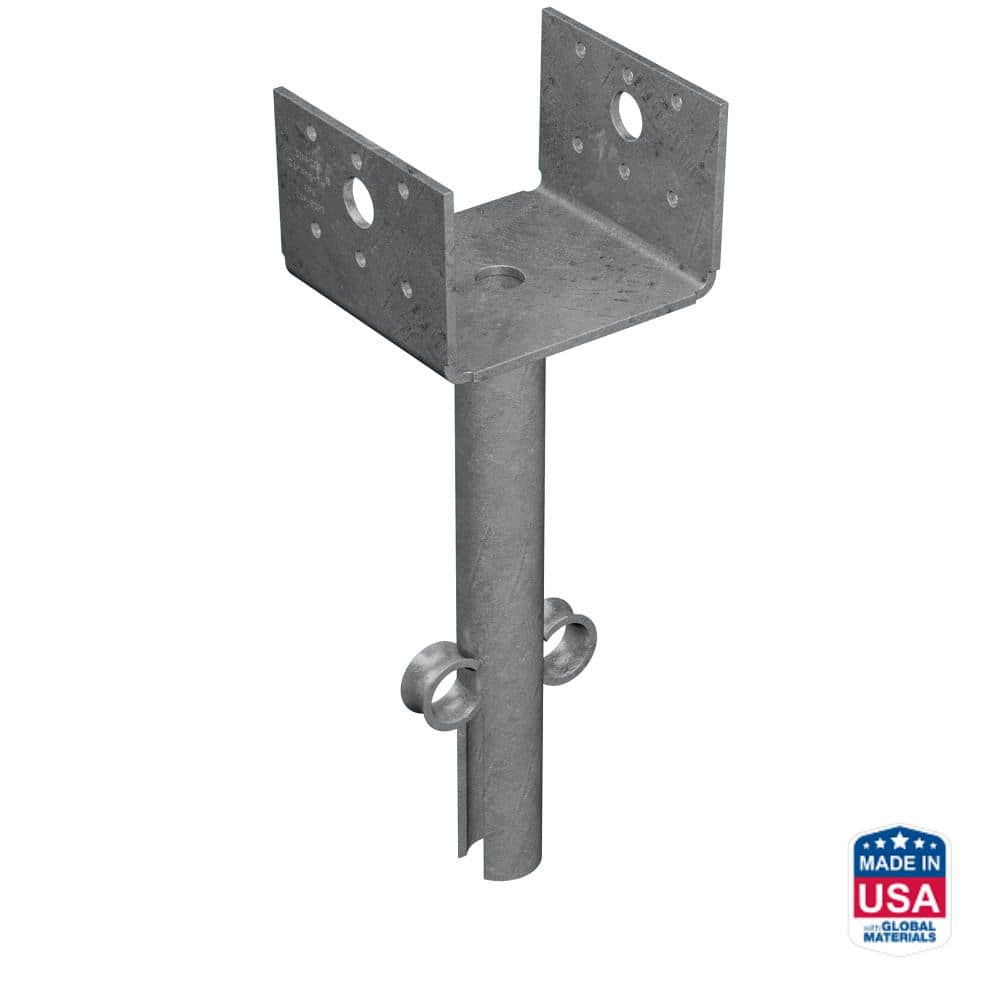

Simpson 4x4 Post Base HDG

Mfr.: Simpson Strong-Tie
Item #: I091023
Mfr. #: PB44HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $21.26
i h h

Description

The Simpson PB44HDG is a heavy-duty post base designed to provide a secure connection between 4x4 wood posts and concrete surfaces. Engineered for use in decks, patio covers, and other top-supported structures, this base is cast-in-place during the concrete pour for maximum stability. Its heavy-gauge steel construction and Hot-Dip Galvanized finish ensure long-lasting durability and exceptional corrosion resistance in outdoor environments.
  • Hot-Dip Galvanized Coating
  • 12-Gauge Steel Construction

Features

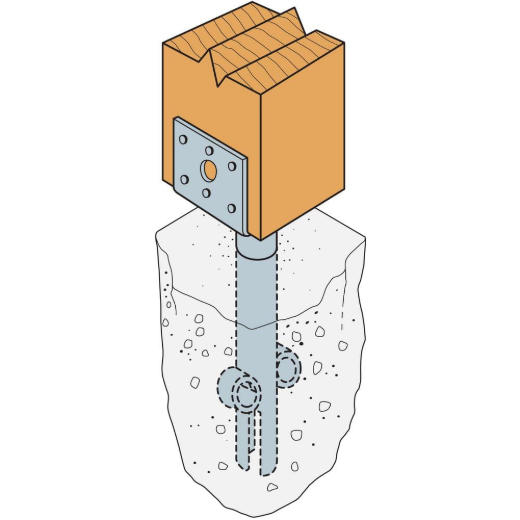

  • Designed for cast-in-place installation in wet concrete to ensure a rigid wood-to-concrete connection.
  • Features an embossed seat for increased strength and stress-relief holes to prevent tearing during loading.
  • Non-standoff design allows the post to sit flush with the concrete surface for a clean, low-profile look.

Includes

  • (1) PB44HDG Post Base
Products specifications
Model Number PB44HDG
Material 12-Gauge Steel
Finish Hot-Dip Galvanized
Post Size 4x4 Nominal
Base Length 3-1/4 inch
Base Width 3-9/16 inch
Fasteners Required (12) 0.162 inch x 3-1/2 inch Nails
Installation Type Cast-in-Place (Wet Concrete)
Series PB Series
*
*
*
