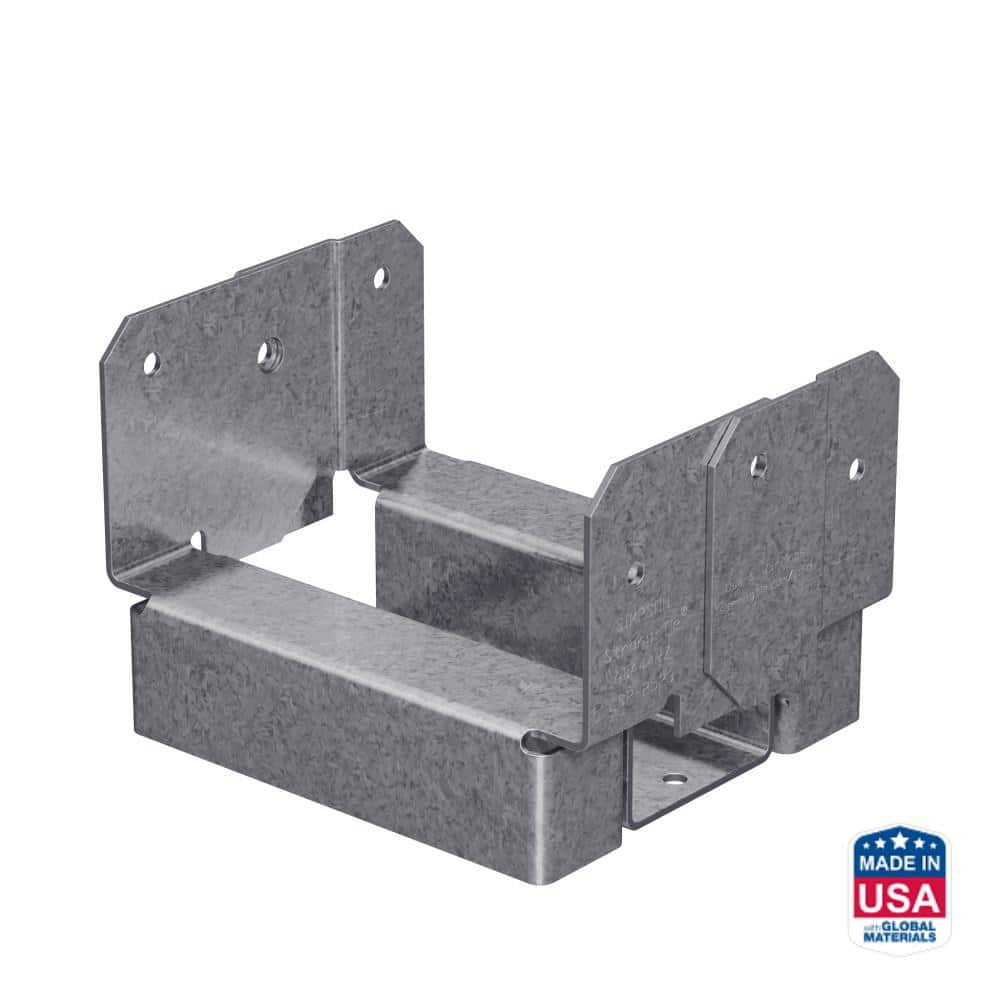

Simpson 4X4 Rough Adjustable Post Base Zmax

Mfr.: Simpson Strong-Tie
Item #: I090881
Mfr. #: ABA44RZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $15.17
i h h

Description

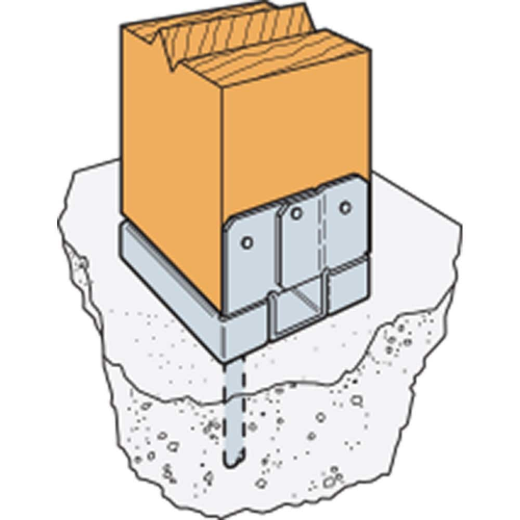

The Simpson Strong-Tie ABA44RZ is a heavy-duty post base designed to secure rough-cut 4x4 wood posts to existing concrete. It features a built-in 1-inch standoff that elevates the post above the concrete surface to prevent rot and decay caused by moisture. This adjustable base is ideal for both retrofit and new construction projects, providing a cost-effective and structurally sound connection for outdoor structures.

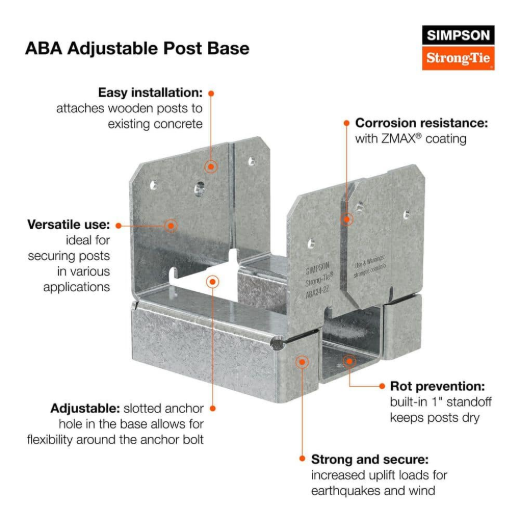

  • ZMAX Galvanized Coating
  • 1-Inch Standoff Design

Features

  • Slotted anchor hole in the base allows for flexible positioning and precise post alignment.
  • Engineered specifically for rough-cut lumber with an actual 4-inch by 4-inch dimension.
  • Provides increased uplift resistance to help structures withstand wind and seismic forces.

Includes

  • 1 x ABA44RZ Adjustable Post Base
Products specifications
Material 16 Gauge Steel
Finish ZMAX Galvanized
Post Size 4x4 Rough Cut (4 inch x 4 inch)
Base Dimensions 3-1/8 inch x 4-1/16 inch
Height 2-13/16 inch
Standoff Height 1 inch
Anchor Diameter 1/2 inch
Fasteners Required (6) 0.148 inch x 3 inch Nails
*
*
*
