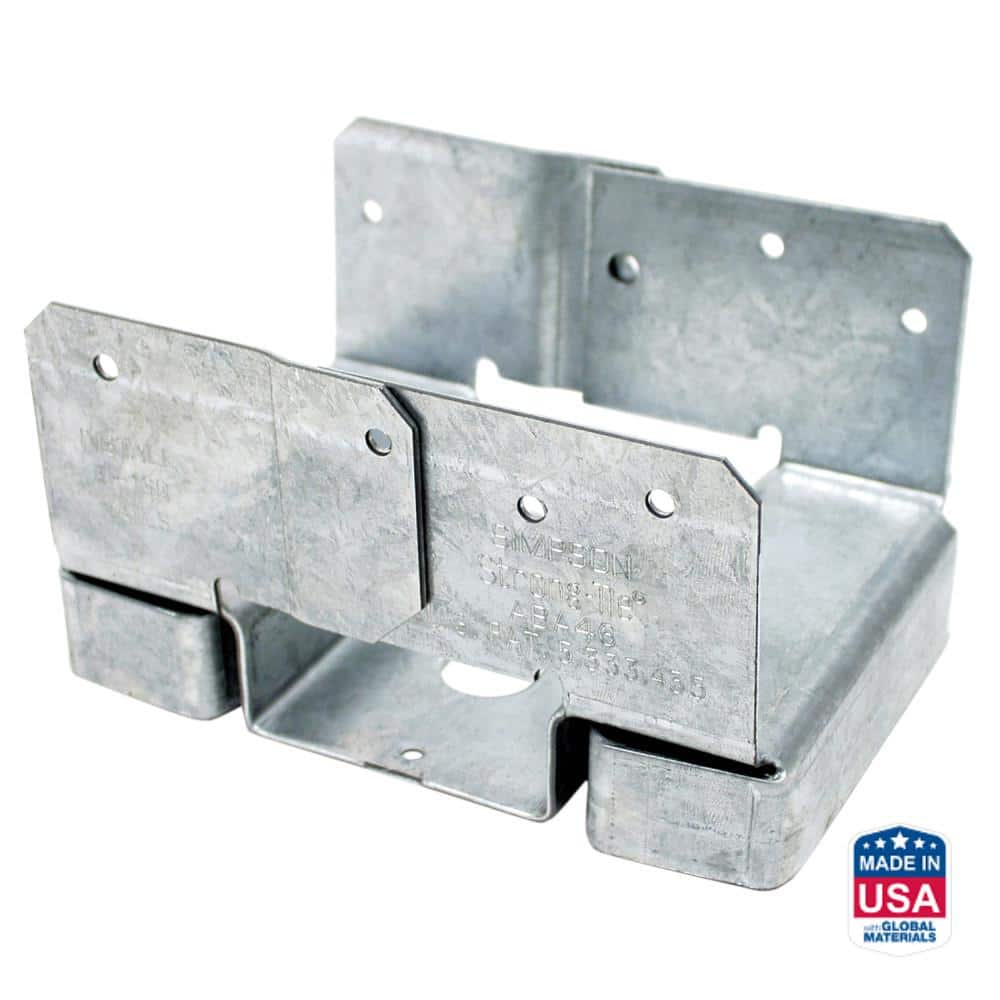

Simpson 4X6 Adjustable Post Base Zmax

Mfr.: Simpson Strong-Tie
Item #: I090884
Mfr. #: ABA46Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $22.66
i h h

Description

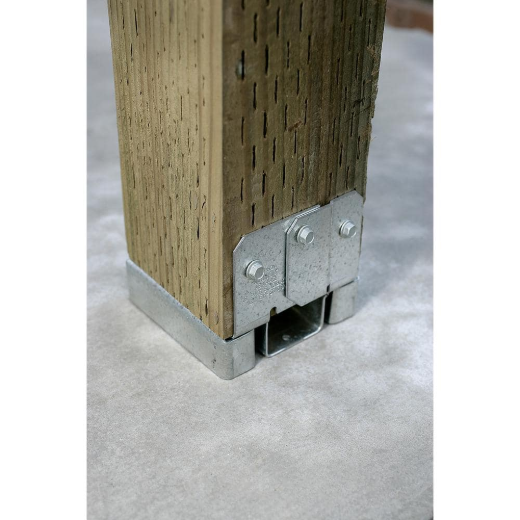

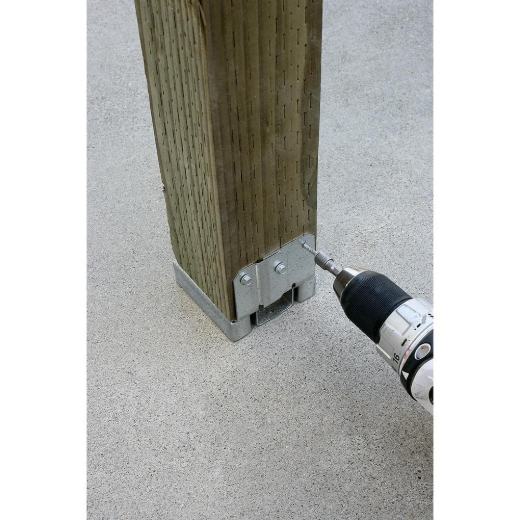

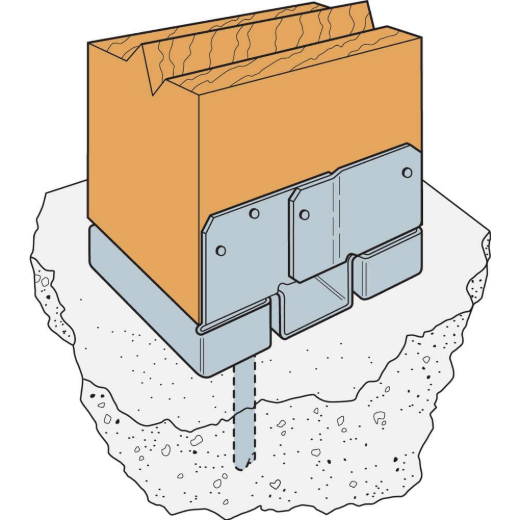

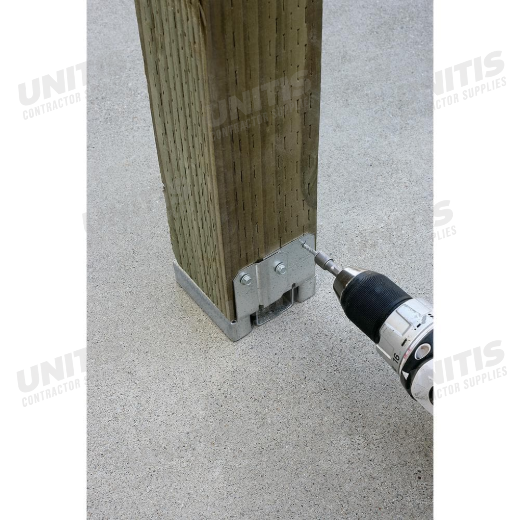

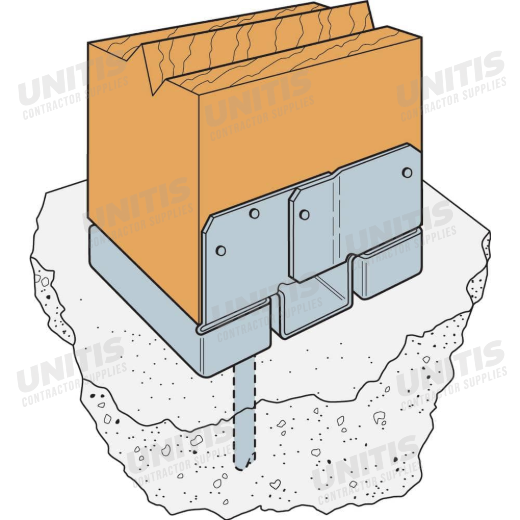

The Simpson Strong-Tie ABA46Z is a versatile adjustable post base designed to securely attach 4x6 wooden posts to existing concrete foundations. It features a built-in 1-inch standoff that meets code requirements and helps prevent post-end rot by keeping the lumber elevated from the concrete surface. The slotted anchor hole allows for flexible adjustment during installation, ensuring precise post placement for both retrofit and new construction projects. This heavy-duty connector provides increased uplift resistance against wind and seismic forces for long-lasting stability.

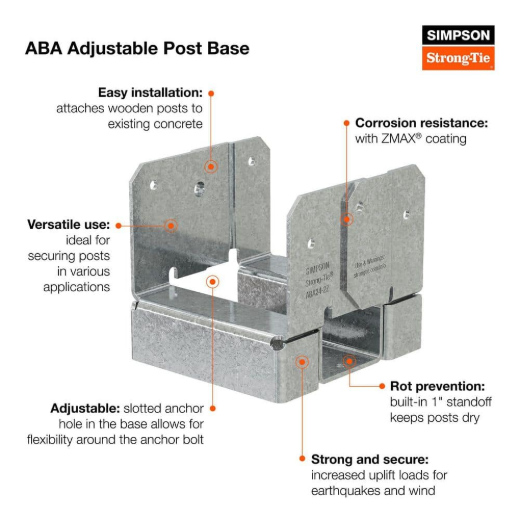

  • ZMAX Coating for Superior Corrosion Resistance
  • 1-Inch Standoff Prevents Post-End Rot

Features

  • Slotted base enables precise adjustment around the anchor bolt during installation.
  • Engineered to provide moderate uplift load capacity for wind and seismic resistance.
  • Constructed from durable 14-gauge steel for structural integrity.
  • Compatible with both nominal and rough-cut 4x6 lumber sizes.

Includes

  • (1) ABA46Z Adjustable Post Base
Products specifications
Model ABA46Z
Material 14-Gauge Steel
Finish ZMAX Galvanized
Post Size 4x6
Standoff Height 1 inch

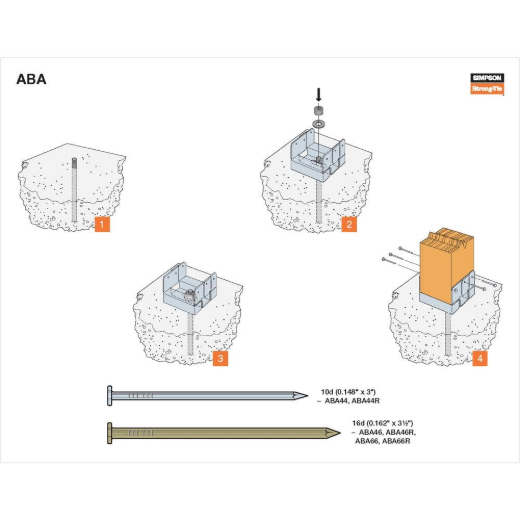

Fasteners (Nails) (8) 0.162 inch x 3-1/2 inch
Fasteners (Anchor) (1) 5/8 inch Anchor Bolt
Base Width 3-9/16 inch
Base Length 5-3/16 inch
*
*
*
