Simpson 4X6 Column Base Hdg

Mfr.: Simpson Strong-Tie
Item #: I090923
Mfr. #: CB46HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $67.67
i h h

Description

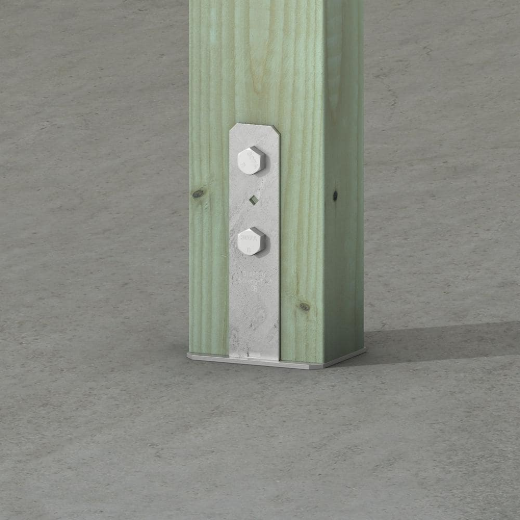

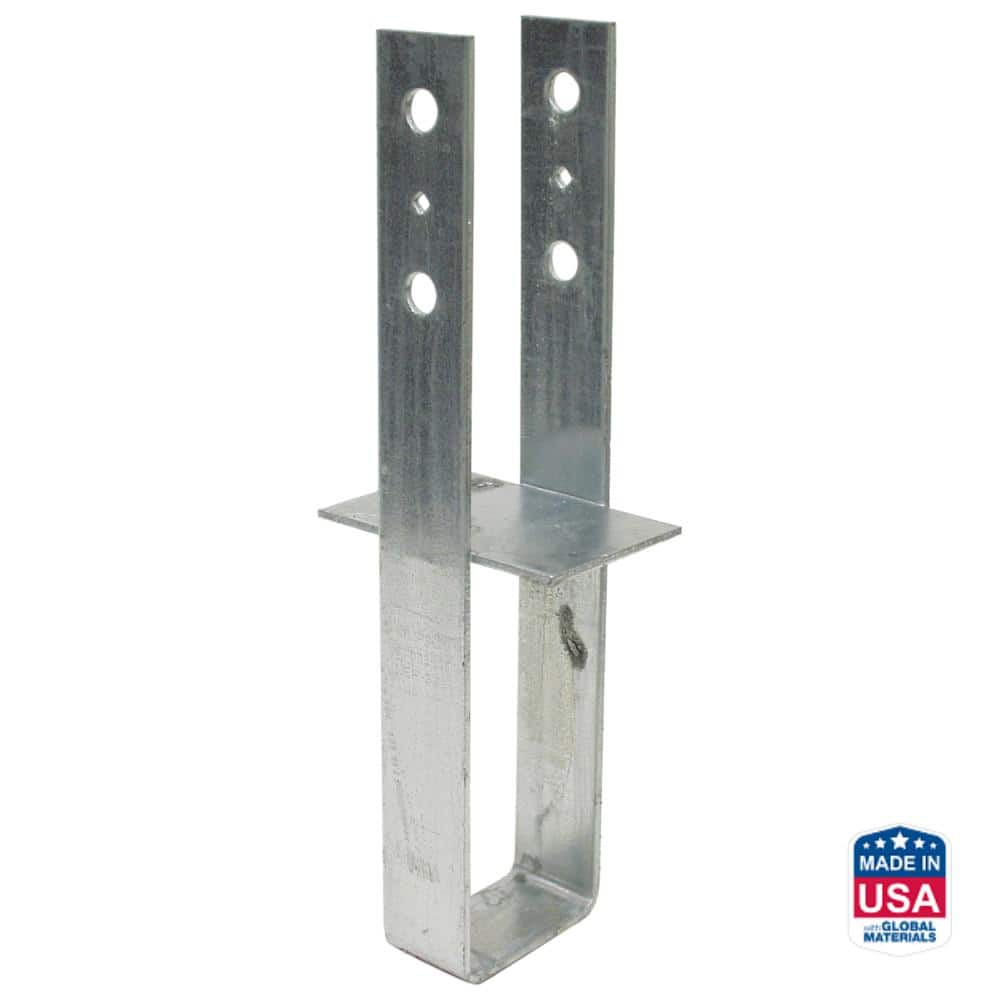

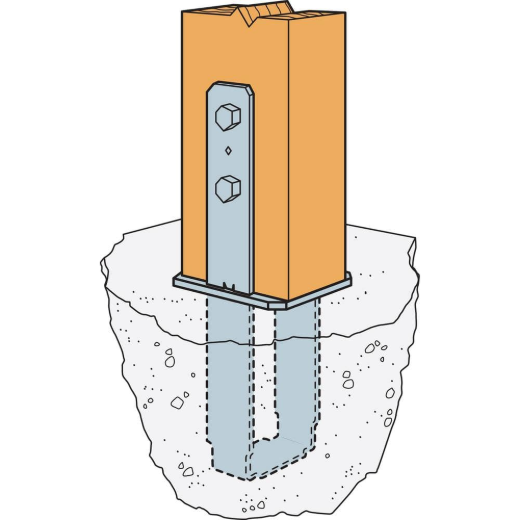

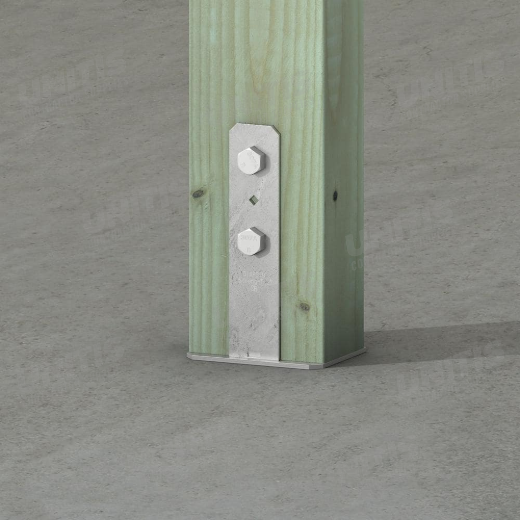

The Simpson Strong-Tie CB46HDG is a high-strength column base designed to connect 4x6 wood posts to concrete foundations. Engineered for cast-in-place or wet-set applications, this heavy-duty connector ensures structural stability and provides significant uplift resistance against wind and seismic forces. Its flush-mount design allows for full post bearing directly on the concrete, making it an ideal choice for rugged construction projects requiring long-lasting performance.
  • Hot-Dip Galvanized Coating
  • 7-Gauge Heavy Steel

Features

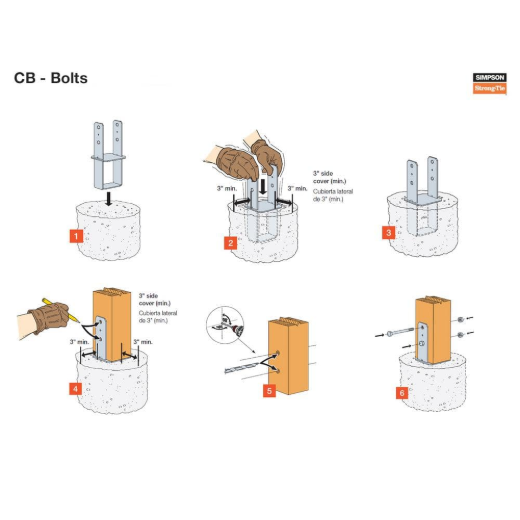

  • Specifically designed for cast-in-place or wet-set concrete installation.
  • Provides increased resistance to uplift and lateral loads for safety.
  • Hot-dip galvanized finish offers superior protection in exterior environments.
  • Bolt holes are precisely located to meet code-required spacing.

Includes

  • (1) CB46HDG Column Base
Products specifications
Material 7-Gauge Steel
Finish Hot-Dip Galvanized
Nominal Post Size 4x6
Installation Type Cast-in-Place
Fasteners Required (2) 5/8 inch Machine Bolts
Series CB
Base Width 3-9/16 inch
Base Length 5-1/2 inch
Uplift Load Capacity Varies by Installation
*
*
*
