Simpson 4X6 Column Base Standoff CBS46

Mfr.: Simpson Strong-Tie
Item #: I090961
Mfr. #: CBS46
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $54.48
i h h

Description

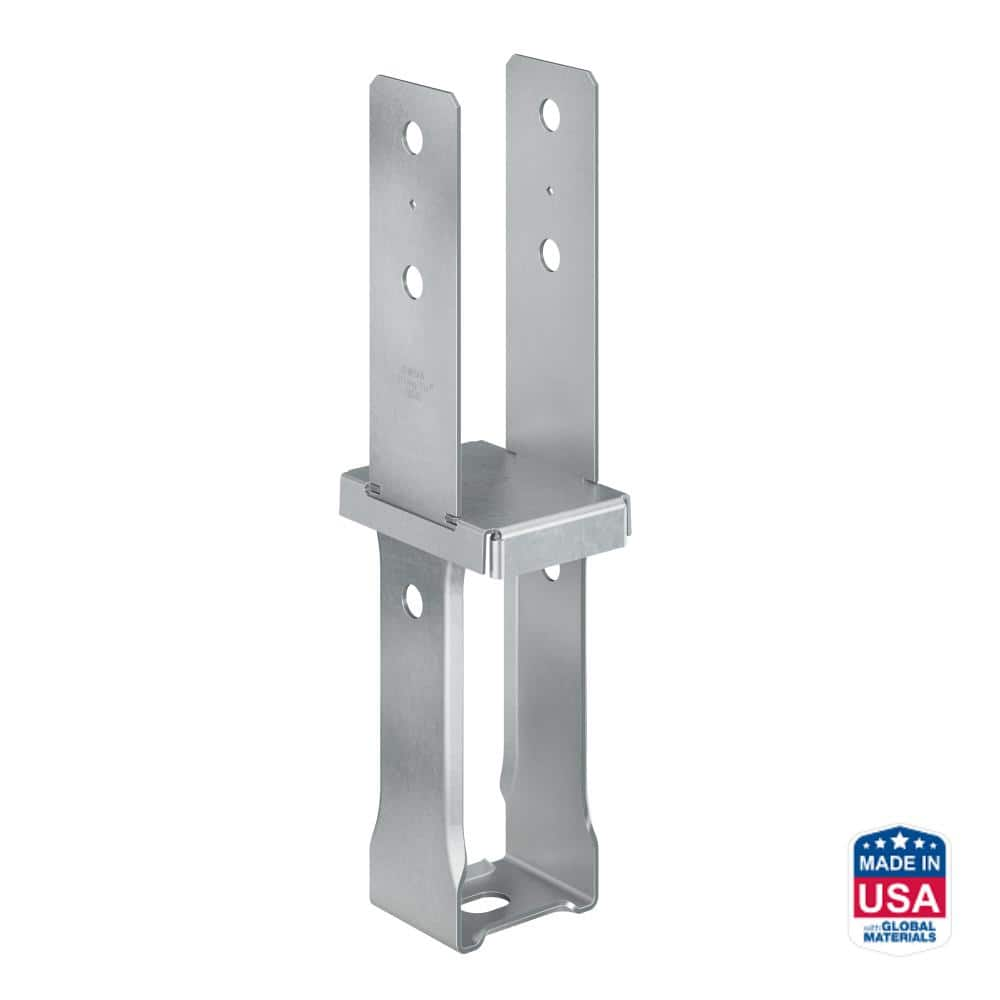

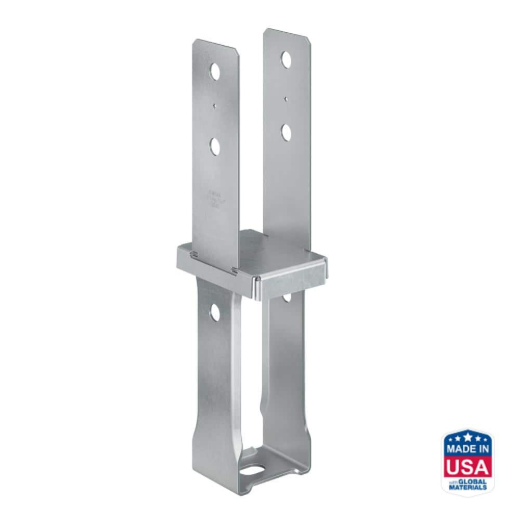

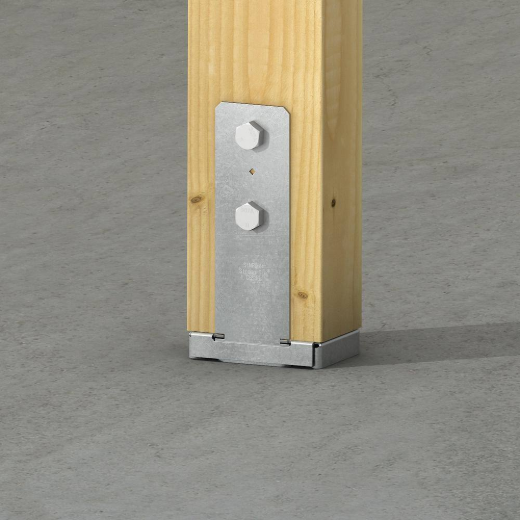

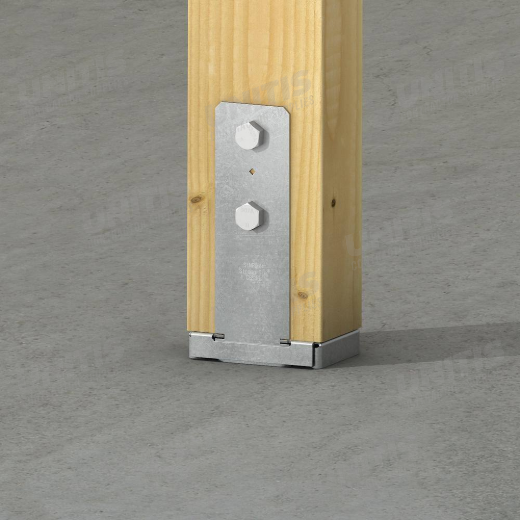

The Simpson Strong-Tie CBS46 is a high-strength column base designed to securely anchor 4x6 nominal wood posts to concrete foundations. Engineered for durability, this standoff base provides a critical 1-inch clearance to protect the post from moisture and prevent rot at the base. It is an ideal solution for top-supported structures such as decks, patio covers, and pergolas, ensuring long-lasting structural integrity and code compliance.
  • G90 Galvanized Finish
  • 1-inch Standoff Height

Features

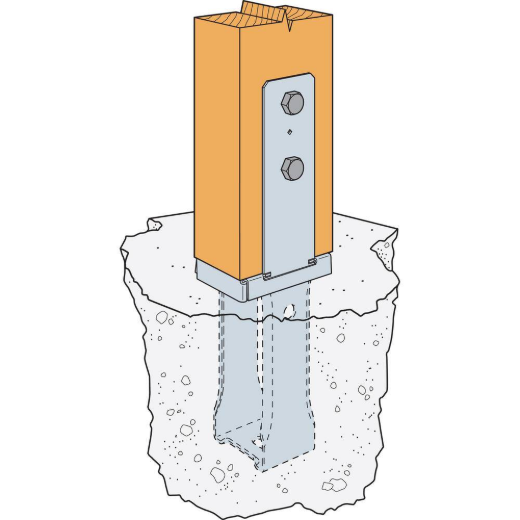

  • Designed for cast-in-place installation in wet concrete for superior uplift and lateral resistance.
  • Meets building code requirements for wood-to-concrete connections in outdoor or moisture-prone areas.
  • Constructed from heavy-gauge steel to effectively transmit structural stresses to the foundation.

Includes

  • (1) CBS46 Column Base
Products specifications
Model Number CBS46
Post Size 4x6 Nominal
Material Heavy-Gauge Steel
Finish G90 Galvanized
Standoff Height 1 inch
Fasteners Required (2) 5/8 inch Bolts
Installation Type Cast-in-Place
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
*
*
*
