  • Simpson 4X6 Column Base Standoff CBST46Z

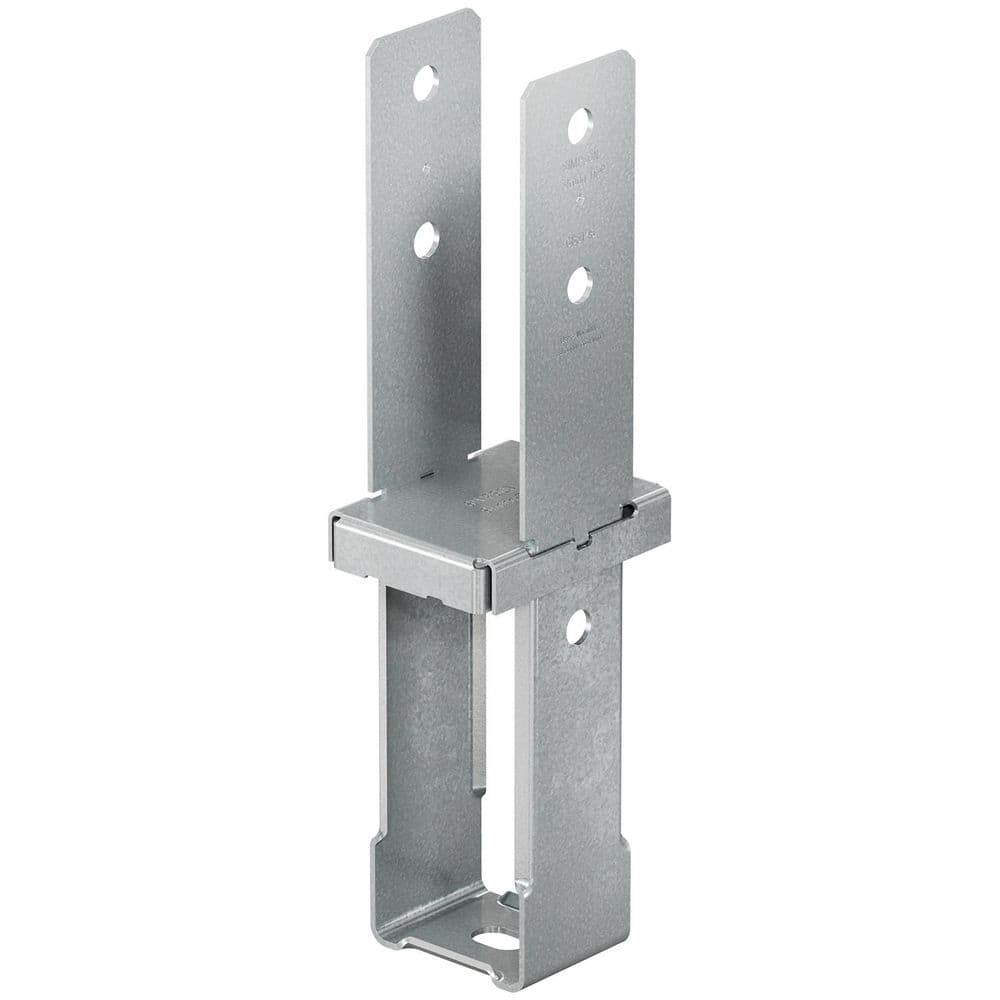

Simpson 4X6 Column Base Standoff CBST46Z

Mfr.: Simpson Strong-Tie
Item #: I090977
Mfr. #: CBST46Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $61.02
i h h

Description

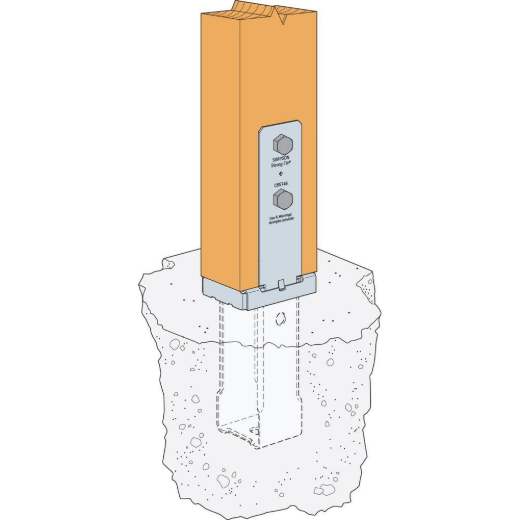

The Simpson Strong-Tie CBST46Z is a heavy-duty, cast-in-place column base designed to provide a secure and stable wood-to-concrete connection for 4x6 posts. This connector features a code-required 1-inch standoff that elevates the wood column above the concrete surface to prevent moisture-related rot and decay. Engineered with unique S-shaped bearing tabs, the CBST46Z offers increased download capacity for demanding residential and light commercial structural applications. Its ZMAX galvanized finish provides superior corrosion resistance, ensuring long-lasting performance in exterior environments.
  • 1 inch Standoff Height
  • ZMAX Galvanized Coating

Features

  • S-shaped bearing tabs provide increased strength and higher download capacity.
  • Cast-in-place design ensures high structural stability and durability.
  • Code-compliant solution for decks, patio roofs, and pergolas.

Includes

  • (1) CBST46Z Standoff Column Base
Products specifications
Finish ZMAX
Material Carbon Steel
Nominal Post Size 4x6
Standoff Height 1 inch
Base Thickness 12 Gauge
Strap Thickness 10 Gauge
Fasteners Required (2) 5/8 inch Machine Bolts
Series CBST
*
*
*
