  • Simpson 4X6 Column Base Standoff HDG

Simpson 4X6 Column Base Standoff HDG

Mfr.: Simpson Strong-Tie
Item #: I090976
Mfr. #: CBST46HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $81.89
i h h

Description

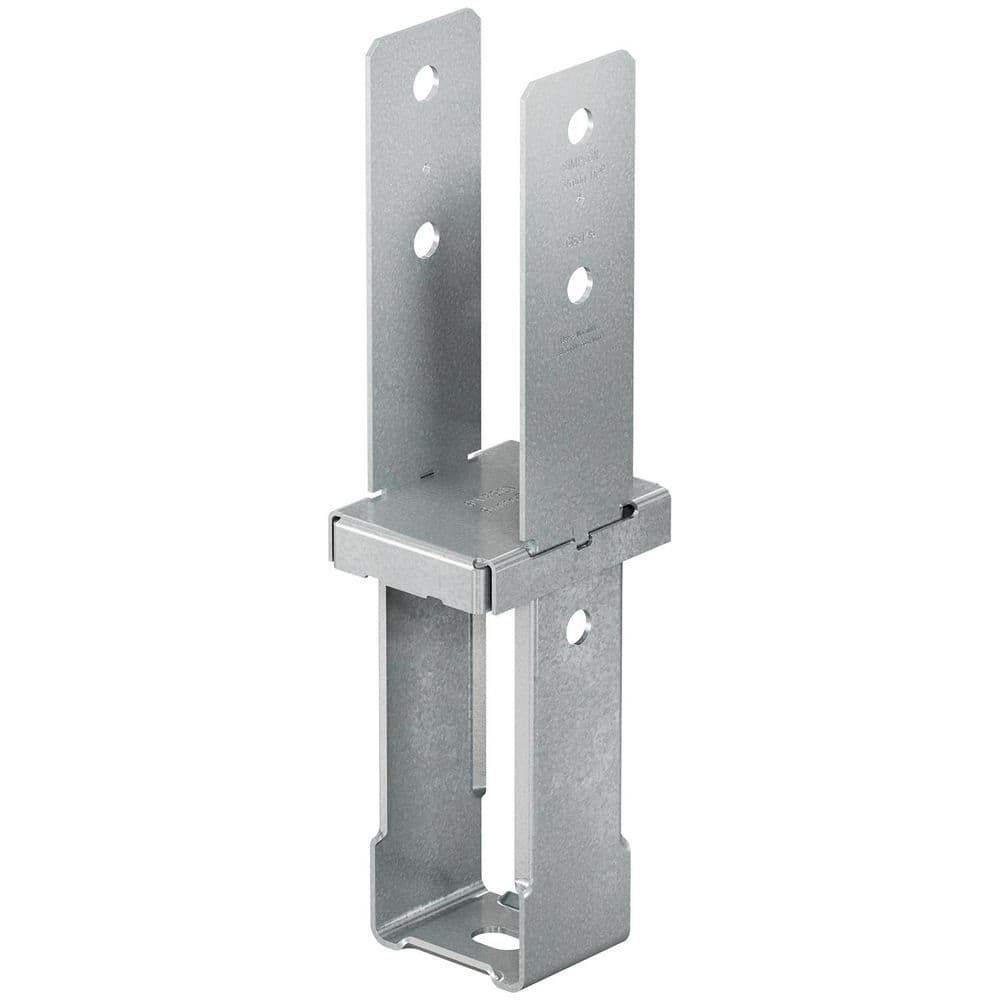

The Simpson Strong-Tie CBST46HDG is a cast-in-place column base designed to provide a secure and durable connection between 4x6 wood posts and concrete foundations. This heavy-duty standoff base features a code-required 1-inch elevation that protects the post from moisture-related rot and decay. Its S-shaped bearing tabs enhance overall strength, allowing for significantly higher download capacities in residential and light commercial projects.
  • Hot-Dip Galvanized (HDG) Coating
  • 1-Inch Moisture Standoff
  • S-Shaped Bearing Tabs

Features

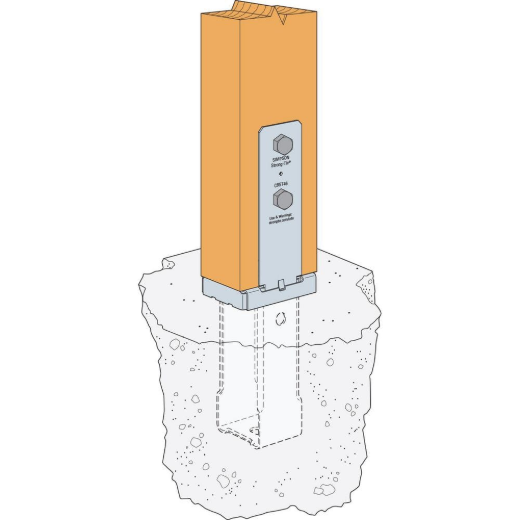

  • Elevates post 1 inch above concrete to meet building codes and prevent rot.
  • Constructed with a 12-gauge base and 10-gauge strap for structural stability.
  • Hot-dip galvanization provides superior corrosion resistance for exterior use.

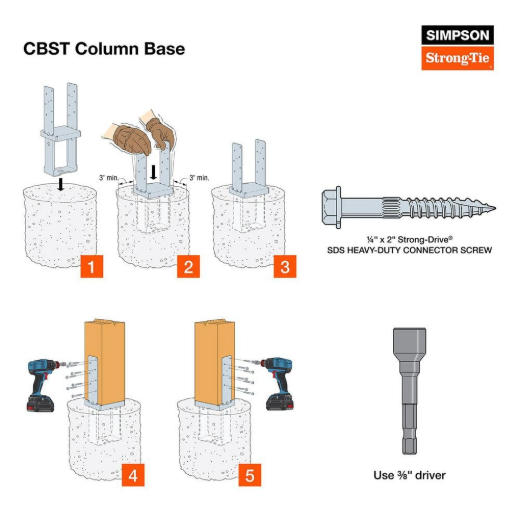

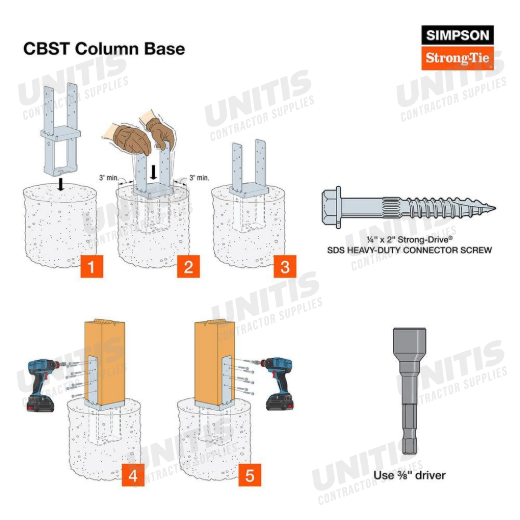

  • Engineered for cast-in-place installation into wet concrete.

Includes

  • (1) CBST46HDG Standoff Column Base
Products specifications
Material Carbon Steel
Finish Hot-Dip Galvanized
Nominal Post Size 4x6
Base Thickness 12 Gauge
Strap Thickness 10 Gauge
Standoff Height 1 inch
Total Height 8-11/16 inches
Fasteners Required (2) 5/8 inch Machine Bolts
*
*
*
